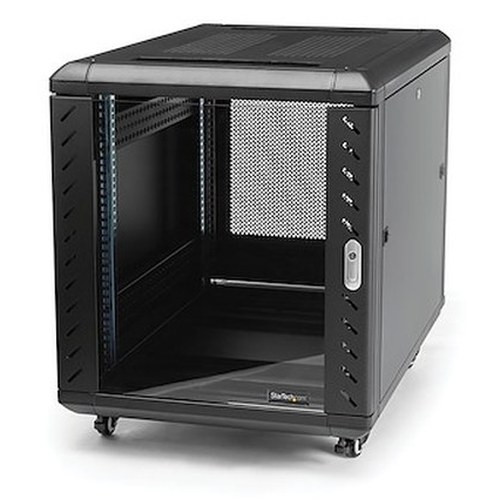

StarTech RK1236BKF 12U 4-Post Enclosed Server Rack Cabinet

Overview

The StarTech RK1236BKF is a 12U, 4-post enclosed cabinet built around a critically wide range of adjustable mounting depth — 5.7 inches minimum to 29.1 inches maximum — making it one of the more versatile compact enclosures available for mixed equipment deployments. At 96 lbs and with external dimensions of 23.6 in wide × 26.1 in tall × 35.4 in deep, it fits into server closets, IDF rooms, and small network operations areas where a full 42U cabinet would be impractical. If you're speccing a network equipment rack for a branch office, a surveillance head-end, or a compact datacenter edge node, this cabinet is worth a close look before sizing up.

Compliance with EIA/ECA-310-E means standard 19-inch rack equipment mounts without adapter rails — every 1U, 2U, or 3U device that ships with standard ears drops in without modification. That's not a given on budget enclosures.

Key Features

• Adjustable 4-Post Mounting Depth (5.7–29.1 in): The rear rail pair slides to accommodate everything from shallow patch panels and KVM switches to deep 1U servers and NVR appliances. You're not locked into a fixed depth at purchase — reconfigure as equipment changes without buying a new rack.
• 1,764 lb Static Weight Capacity: Fully loaded with twelve 1U servers or NVR units, this cabinet won't flex or tip under static conditions. The 330.8 lb rolling capacity is more conservative — if you're moving a fully loaded rack, strip it down first or keep loads well under that threshold.
• Glass Front Door: Tempered glass lets technicians do a visual status check on indicator LEDs without opening the door — useful in cold-aisle/hot-aisle arrangements or any environment where door cycles should be minimized. It also presents better in a client-facing server room than a steel-mesh front.
• Steel Mesh Rear Door: Rear mesh maximizes passive airflow through the back of the cabinet, which matters when you're running active networking gear or NVR appliances with rear exhaust. No need to remove the door to get adequate cooling.
• Aluminum Side Panels: Lighter than steel side panels and resistant to corrosion — relevant in environments with humidity variation or near HVAC condensation zones. Panels are removable for side-access during dense cable runs.
• Casters + Leveling Feet Combo: Four casters let you roll the cabinet into position; leveling feet lock it in place and decouple it from floor vibration once positioned. This combination is standard on quality enclosures but worth confirming — cheaper cabinets often ship with one or the other, not both.
• Grounding Lug(s): Dedicated grounding points matter for NEC compliance in commercial installations. If your AHJ requires rack bonding, the grounding lug eliminates the need for a field-fabricated ground strap.
• Lifetime Warranty: StarTech backs the RK1236BKF with a lifetime warranty on the enclosure — meaningful for a cabinet that may outlive several generations of the equipment mounted inside it.

Integration and Compatibility

EIA/ECA-310-E compliance means standard 19-inch rack-mount equipment from any vendor installs without modification. The 12U form factor accommodates a typical small branch stack: a PoE switch, patch panel, network video recorder, UPS, and one or two servers — a common configuration for a distributed surveillance system head-end or a collapsed wiring closet. For larger deployments requiring more U-space, consider moving to a taller rack enclosure in the same StarTech line rather than stacking cabinets.

The adjustable rear rail depth (5.7–29.1 in) handles the full range of standard rack equipment. Shallow fixed-configuration devices like patch panels typically sit at 5–6 inches; modern 1U servers and NVR appliances range from 16–28 inches — the RK1236BKF covers both ends without compromise. Review your deepest device's rear-ear-to-back-of-equipment measurement before finalizing rail position.

If your installation includes a PoE switch driving camera runs, confirm that cable management within the 12U space is planned before populating — 12U fills faster than expected once a 2U UPS and a patch panel are in place.

Frequently Asked Questions

Q: What is the maximum equipment depth the RK1236BKF can accommodate?

A: The rear mounting rails adjust from a minimum of 5.7 inches to a maximum of 29.1 inches of usable mounting depth, covering shallow patch panels through deep 1U servers and NVR appliances.

Q: What is the weight capacity of the RK1236BKF?

A: The cabinet supports up to 1,764 lbs in a stationary installation. Rolling capacity is 330.8 lbs — if you need to relocate the cabinet, keep the load well below that threshold or unload equipment first.

Q: What warranty does the RK1236BKF carry?

A: StarTech backs the RK1236BKF with a lifetime warranty on the enclosure.

Q: Does the RK1236BKF comply with standard 19-inch rack equipment mounting?

A: Yes. The cabinet is EIA/ECA-310-E compliant, meaning all standard 19-inch rack-mount equipment mounts directly without adapters or modifications.

Q: What are the external dimensions of the RK1236BKF?

A: The cabinet measures 23.6 inches wide, 26.1 inches tall, and 35.4 inches deep, with a product weight of 96 lbs empty.

Q: Can the RK1236BKF be moved when populated?

A: The cabinet ships with casters for repositioning, but the rolling weight capacity is 330.8 lbs. For moves with a populated rack, reduce equipment load accordingly. Leveling feet are included to stabilize and level the cabinet once in final position.

James Everett

The spec I always flag first on the RK1236BKF is that 5.7-to-29.1-inch adjustable mounting depth range. In practice, that means you can install a 24-port patch panel at the shallow end and a full-depth 1U NVR appliance at the deep end in the same cabinet without shimming, adapting, or leaving equipment half-supported on undersized rails — a real-world issue I see constantly when integrators buy fixed-depth cabinets and then discover their NVR is 26 inches deep.

Technical Highlights:

• Static Load Rating (1,764 lb): Even a densely populated 12U stack — NVR, PoE switch, UPS, patch panel, and servers — rarely exceeds 400 lbs. The 1,764 lb static rating gives you substantial margin against mechanical fatigue over a 10+ year deployment life.
• Glass Front / Mesh Rear Door Combination: The glass front lets you read LEDs without opening the door, reducing door cycles and associated dust ingress. The steel mesh rear maximizes passive exhaust airflow — critical if you're running a PoE switch and NVR simultaneously in a 12U space with limited active cooling.
• Lifetime Warranty: For an enclosure that will likely outlast two or three generations of the equipment inside it, a lifetime warranty removes it from the replacement planning cycle entirely.

Deployment Considerations:

• At 35.4 inches deep (external), confirm your IDF closet or server room has clearance for door swing plus front-access service space — tight closets can make the glass front door an obstacle rather than an asset.
• The 330.8 lb rolling capacity is the limiting factor for moves, not the 1,764 lb static rating. If this cabinet is going into a space where future moves are likely, plan to de-rack heavy equipment before repositioning.

The RK1236BKF is a strong fit for a distributed surveillance head-end or a branch-office IDF where you're consolidating NVR, switching, and patching into a single locked enclosure — specifically where equipment depth varies across the stack and you need a cabinet that adapts to the gear rather than the other way around.
