StarTech RK1536BKF 15U 4-Post Enclosed Server Rack Cabinet

Overview

The StarTech RK1536BKF is a 15U, 4-post enclosed rack cabinet built for server rooms, network closets, and edge deployments where you need a secure, organized enclosure without committing to a full-height cabinet footprint. At 31.4 inches tall (33.9 inches with casters), it fits under standard drop ceilings and in low-clearance spaces where a 42U cabinet simply won't go — yet it holds up to 1,764 lb stationary, so there's no compromise on what you can actually load into it. If your deployment involves NVRs, switches, UPS units, and patch panels in a compact space, the RK1536BKF is sized for the job.

Key Features

• 1,764 lb Stationary Weight Capacity: This isn't a lightweight AV rack — 1,764 lb stationary capacity means you can fill all 15U with dense 2U servers, heavy UPS units, or stacked NVR appliances without worrying about structural limits. Rolling capacity is 330.8 lb, so plan your caster routing before loading the full rack.
• Adjustable Mounting Depth (5.7 in to 33.0 in): The 4-post rails adjust from 5.7 to 33.0 inches of mounting depth, accommodating everything from shallow patch panels to deep 32-inch server chassis. No adapters, no workarounds — measure your deepest device and confirm it clears 33 inches.
• 15U Form Factor (EIA/ECA-310-E Compliant): 15U of usable space in a 31.4-inch-tall footprint makes this the right size for edge server rooms, security operations closets, and branch-office IT deployments where floor space is limited. EIA/ECA-310-E compliance means standard 19-inch rackmount equipment installs without modification.

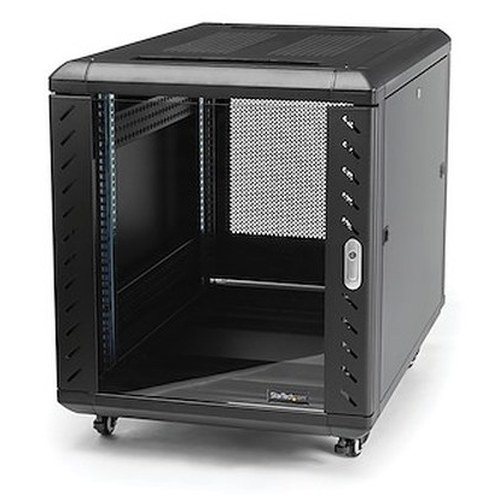

• Steel Frame with Glass Front Door: The glass-windowed front door lets you check indicator lights and LED status without opening the cabinet — useful in live environments where you want a visual check before touching anything. The door is steel-framed, so it's not decorative glass; it holds its shape under daily use.
• Steel Mesh Rear Door: Rear mesh ventilation means hot air from equipment exhausts can clear without building up inside the enclosure. If you're running high-wattage servers or multiple NVRs without supplemental cooling, that passive airflow path matters.
• Steel Side Panels: Solid steel side construction provides physical security and RF containment — relevant if this cabinet is in a shared space or co-location environment where neighboring equipment access is a concern.
• 23.5 in Internal Width / 39.1 in Internal Depth: Standard 19-inch equipment mounts correctly in the 23.5-inch internal width, and 39.1 inches of internal depth gives clearance for cable management, PDUs mounted to the rear uprights, and deep equipment with rear-facing connectors.
• Caster-Ready with Stationary Footprint Options: Ships with casters for positioning flexibility during installation. At 119.1 lb empty, this cabinet is moveable by two people on casters — but lock them down once positioned. The 2.4-inch height difference between caster and non-caster configurations is worth accounting for in raised-floor environments.
• Lifetime Warranty: StarTech backs the RK1536BKF with a lifetime warranty on the enclosure itself. For a passive steel structure in a permanent installation, that's the right coverage profile — no refresh cycle, no warranty-expiration planning.

Integration and Compatibility

The RK1536BKF follows EIA/ECA-310-E standards, which means any standard 19-inch rackmount device — switches, NVRs, servers, KVM units, patch panels, UPS systems — installs without modification. The adjustable 4-post rail system handles shallow 1U networking gear at the front posts and deep 2U/4U server chassis that need all four posts for support. For network video recorders and supporting infrastructure in a PoE switch stack, this cabinet centralizes everything in a single locked enclosure. Pair it with a 1U or 2U rackmount PDU on the rear uprights and a blanking panel kit to manage airflow across unused slots. The 15U count is tight — plan your U allocation before purchasing accessories, as a UPS alone can consume 2–3U depending on capacity.

Frequently Asked Questions

Q: What is the maximum stationary weight capacity of the RK1536BKF?

A: The RK1536BKF supports up to 1,764 lb when stationary. When rolling on casters, the safe rolling capacity is 330.8 lb — load the full rack only after it is positioned and the casters are locked.

Q: What range of equipment depth does the RK1536BKF accommodate?

A: The 4-post adjustable rails support mounting depths from 5.7 inches to 33.0 inches, covering shallow patch panels and deep server chassis up to approximately 32–33 inches in depth.

Q: Is the RK1536BKF compatible with standard 19-inch rackmount equipment?

A: Yes. The RK1536BKF is EIA/ECA-310-E compliant with a 23.5-inch internal width, which accommodates all standard 19-inch rackmount equipment without adapters.

Q: What is the warranty on the RK1536BKF?

A: StarTech covers the RK1536BKF with a lifetime warranty.

Q: What are the overall dimensions of the RK1536BKF including casters?

A: Without casters, the cabinet stands 31.4 inches tall, 23.6 inches wide, and 39.6 inches deep (approximately 3.3 ft). With casters installed, height increases to 33.9 inches. The unit weighs 119.1 lb empty.

Q: What type of ventilation does the RK1536BKF provide?

A: The rear door is steel mesh for passive exhaust airflow. The front door is steel with a glass window. Side panels are solid steel. This configuration supports natural convection cooling but does not include active fans — plan for supplemental cooling in high-wattage deployments.

Karl Wilson

The spec that stands out most to me on the RK1536BKF is that 1,764 lb stationary weight rating. That's not a number you see on lightweight AV furniture — it means you can legitimately stack high-density 2U servers, a rackmount UPS, a PoE switch, and an NVR appliance into this 15U frame without engineering concerns about the structure. I've seen integrators underestimate rack capacity on compact cabinets and end up with deflected shelves or failed welds at the uprights. That's not a risk here.

Technical Highlights:

• Adjustable Rail Depth (5.7–33.0 in): This range covers virtually every standard rackmount device in a mixed IT/security environment — from 1U patch panels at the shallow end to 32-inch deep server chassis at the limit. No rail extension kits needed for typical deployments.
• 15U at 31.4 in Height: The height-to-U ratio is efficient — you get 15 rack units in under 32 inches of vertical space, making this viable in rooms with 8-foot ceilings and existing overhead cable trays.
• Steel Mesh Rear Door: Passive rear ventilation is the correct design choice for an enclosed cabinet at this size. Active fan kits add noise, failure points, and power draw. If you're staying under the thermal capacity of passive convection — which most 15U deployments do — the mesh rear is the right call.

Deployment Considerations:

• At 119.1 lb empty, plan for two-person installation. On casters, the 330.8 lb rolling limit means you'll want to position and lock before fully loading — staging heavy equipment into a fully loaded rolling cabinet is how you damage floors and casters.
• 15U fills up faster than most planners expect. A 2U NVR, a 1U PoE switch, a 2U UPS, and a 1U patch panel already consume nearly half the space. Map your U allocation before ordering accessories or additional equipment.

The RK1536BKF is the right cabinet for a branch-office security operations room or a dedicated NVR/networking closet where ceiling height or floor space rules out a full 42U frame. If you're consolidating surveillance infrastructure — recorders, switches, storage — into a single lockable enclosure in a space-constrained environment, this is sized correctly for that job.
