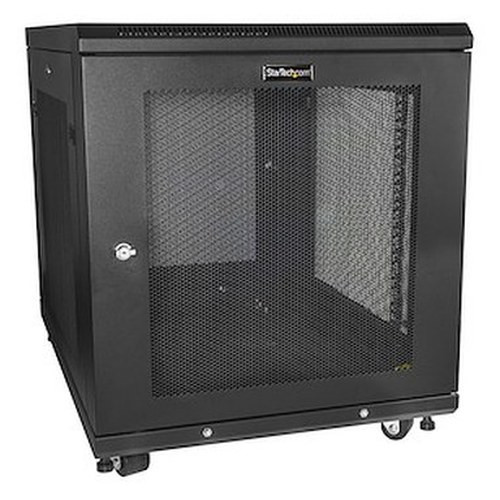

StarTech RK1233BKM 12U 4-Post Enclosed Server Rack Cabinet

Overview

The StarTech RK1233BKM is a 12U, four-post enclosed rack cabinet built for IT equipment rooms, network closets, and edge deployments where you need a physically secure, flexible mounting solution without committing to a permanent installation. It ships fully assembled — no on-site construction required — and supports an adjustable mounting depth range of 1.8 to 29.9 inches, which means everything from shallow patch panels to deep 1U servers slides in without adapter rails or custom hardware.

At 12U, this is the right footprint for smaller network equipment deployments: a core switch, a PoE injector shelf, a patch panel, and an NVR can all coexist in the same cabinet without the wasted airspace of a 24U or 42U floor unit. If you are deploying a network video recorder alongside switching gear at a remote site or branch office, the RK1233BKM gives you a contained, lockable home for all of it.

Key Features

• 12U capacity with 992.2 lb stationary load rating: That is enough headroom to rack-mount dense UPS units, multi-drive NVRs, and high-port-count switches simultaneously without approaching the structural limit. Rolling capacity steps down to 793.8 lb — still substantial for mobility during initial positioning or reconfiguration.
• Adjustable mounting depth (1.8 in to 29.9 in): The four-post rail system slides to accommodate virtually any rack-mountable device on the market. A 24-port PoE switch might be 17 inches deep; a 1U NVR might be 26 inches. You configure the rails once per device, not once per cabinet purchase.
• Ships fully assembled: No tools, no multi-hour build session on-site. Unbox, position, cable, and lock. For integrators deploying to remote locations or lean IT staff environments, this eliminates a meaningful labor cost.
• Locking, reversible, removable mesh front door: The mesh door maintains front-to-rear airflow while physically restricting unauthorized access. Reversible hinging lets you adapt to room layout — door swing left or right depending on aisle orientation. Removable entirely for dense cabling work without a technician holding a door open.
• Removable side panels with quick-release locks: Side access without tools speeds up cabling and hardware swaps. Quick-release means you are not hunting for a screwdriver during an active incident response or scheduled maintenance window.
• Caster mobility: Roll the cabinet into final position after loading equipment. Useful in server rooms without raised flooring where dragging a loaded rack risks damaging floor tiles or equipment.
• 23.4-inch internal width, 33.5-inch internal depth: Standard EIA/ECA-310-E 19-inch rack-width compliance with extra depth clearance. Cable management, PDU routing, and patch organization fit inside the cabinet footprint without external add-ons.
• EIA/ECA-310-E compliance: Industry-standard rail spacing means off-the-shelf rack ears and cage nut hardware fit without modification. Included cage nuts, screws, and a 1U shelf get you populated on day one.
• Included 1U shelf and hook-and-loop fastener: The shelf handles non-rack-mountable devices — a small UPS, a media converter, a power brick — and the hook-and-loop strips manage cable bundles internally without zip-tie waste or recabling pain during moves.
• 5-year manufacturer warranty: For a passive enclosure, a five-year warranty is a signal of build quality. Rack cabinets typically outlive two or three generations of the equipment they house; knowing the structural hardware is backed for five years reduces long-term capital planning risk.

Integration and Compatibility

The RK1233BKM follows EIA/ECA-310-E rack standards, so it accepts any 19-inch rack-mountable equipment: switches, routers, NVRs, patch panels, KVM drawers, PDUs, and 1U/2U servers. The adjustable post depth (1.8 to 29.9 inches) covers the full range of typical enterprise and SMB rack-mount hardware. Cage nut hardware is included, compatible with standard M6 and 10-32 rack screws used across major networking and server vendors.

For surveillance-focused deployments, this cabinet pairs cleanly with rack-mount NVRs and PoE switches — the 33.5-inch internal depth handles deep 2U NVR chassis without rail extensions. If your deployment also requires structured cabling discipline, review a rack and infrastructure planning guide before finalizing your cable management strategy inside a 12U footprint.

What's in the Box

• 1x StarTech RK1233BKM 12U 4-Post Enclosed Rack Cabinet
• 1x 1U Shelf
• 1x Hook and Loop Fastener
• Cage Nuts
• Screws
• Keys

Frequently Asked Questions

Q: Does the RK1233BKM ship pre-assembled or does it require on-site assembly?

A: The RK1233BKM ships fully assembled. No on-site build is required — unbox, position using the included casters, and begin populating equipment immediately.

Q: What is the maximum equipment depth the RK1233BKM can accommodate?

A: The adjustable four-post rail system supports mounting depths from 1.8 inches to 29.9 inches, covering shallow patch panels through deep 2U servers and NVR chassis.

Q: What is the weight capacity of the RK1233BKM?

A: The stationary load rating is 992.2 lb. When rolling on casters — for repositioning during installation — the rating is 793.8 lb. Both figures are well above typical 12U equipment loads.

Q: Is the front door on the RK1233BKM lockable, and can the hinge direction be changed?

A: Yes. The mesh front door includes a lock and is both reversible (hinge left or right) and fully removable, giving you flexibility based on room layout and cabling access needs.

Q: What rack standard does the RK1233BKM conform to?

A: The RK1233BKM is EIA/ECA-310-E compliant, meaning it accepts standard 19-inch rack-mountable equipment and is compatible with off-the-shelf cage nuts and rack screws.

Q: What is the warranty on the RK1233BKM?

A: StarTech covers the RK1233BKM with a 5-year manufacturer warranty.

Marty Allison

When integrators ask me about small-footprint rack solutions for branch and edge deployments, the RK1233BKM is the unit I come back to most often. The fully assembled shipping is the detail that matters most in practice — when you are deploying to a remote site with limited on-site technical support, a rack that shows up ready to load is worth real money in saved labor. The 992.2 lb stationary load rating sounds like overkill for a 12U cabinet, but it means the frame will never be the weak point, even if you stack a heavy UPS at the bottom and fill every U above it.

Technical Highlights:

• 1.8–29.9 in adjustable mounting depth: This range covers nearly every rack-mount device on the market without adapter hardware — shallow patch panels at one end, deep NVR chassis at the other, all in the same cabinet.
• Locking mesh front door (reversible and removable): Mesh maintains airflow, the lock satisfies physical security requirements in access-controlled spaces, and removability means you are not fighting a door during dense cabling sessions.
• Quick-release side panels: Tool-free side access is underrated for a 12U cabinet — when a unit is fully loaded and sitting in a tight closet, being able to pull a side panel in seconds rather than minutes matters during live troubleshooting.

Deployment Considerations:

• At 112 lb unloaded, the RK1233BKM is a two-person move even before equipment is installed — plan your site delivery and positioning accordingly, especially in locations without a loading dock or freight elevator.
• The 33.5-inch internal depth is generous, but in a 12U footprint cable management discipline matters more than in a full-height cabinet — budget for a horizontal cable manager or at minimum use the included hook-and-loop fasteners aggressively to keep rear cable routing clean.

This cabinet is a strong fit for surveillance and networking edge closets: a 16-channel rack-mount NVR, a 24-port PoE switch, a patch panel, and a small UPS fill 12U cleanly, lock behind a mesh door, and ship to site already assembled. That combination of physical security, depth flexibility, and zero assembly labor is exactly what branch deployments need.
