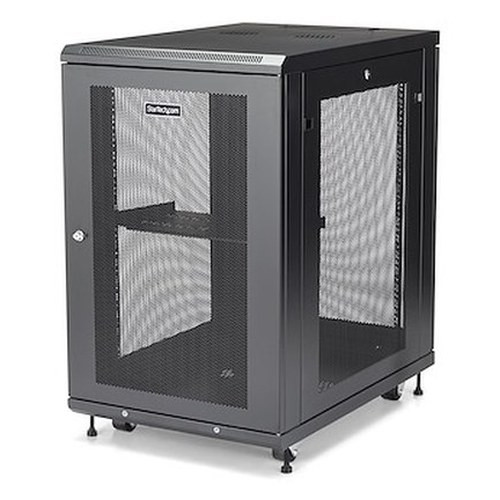

StarTech RK1833BKM 18U 4-Post Enclosed Server Rack Cabinet

Overview

The StarTech RK1833BKM is an 18U, 4-post enclosed server rack cabinet built for IT closets, network rooms, and edge deployments where you need a full-depth equipment enclosure without requiring a dedicated data center floor. At 18U, it fits comfortably under a standard ceiling in a wiring closet while still housing a respectable stack — a small NVR, managed PoE switches, patch panels, and ancillary gear in a single lockable footprint. The adjustable mounting depth (1.8 in to 29.9 in) is the detail that makes this rack genuinely flexible rather than just small: you can mount a shallow patch panel at under 2 inches or slide a full-depth server all the way back to nearly 30 inches, all within the same cabinet. If you're building out a network equipment stack for a mid-size commercial site or branch office, this form factor deserves serious consideration.

Key Features

• 18U Form Factor: 18 rack units in a 35.6 in (90.4 cm) cabinet — tall enough to house a meaningful equipment stack, short enough to deploy in a standard IT closet without ceiling clearance concerns. Add casters and total height reaches 38.5 in (97.7 cm), still well within low-ceiling environments.
• Adjustable Mounting Depth (1.8 in to 29.9 in): The mounting rails slide from near-flush at 1.8 in to a full 29.9 in depth. This means shallow 1U patch panels coexist with deep 2-post-style servers in the same enclosure — no need to source a separate cabinet when your gear mix varies in depth.
• 992 lb Static / 793 lb Rolling Load Capacity: 992.2 lb (450 kg) stationary and 793.8 lb (360 kg) on casters. For a compact 18U cabinet, this is a serious structural rating — you're not going to overload it with NVRs, UPS units, and dense switching gear. The rolling capacity is what matters during deployment day: nearly 800 lb worth of populated rack can be repositioned safely without unloading it first.
• Steel Mesh Door and Side Panels: Mesh construction on both the front door and side panels promotes passive airflow rather than trapping heat, which matters in a closed IT closet running 24/7 surveillance or networking gear. No active cooling required in most moderate-load scenarios.
• Keyed Locks on Door and Side Panels: Front door ships with a secure key lock and is both reversible and removable — useful when cabinet placement puts the hinge on the wrong side. Side panels are independently lockable and removable for lateral cable runs or maintenance access without disturbing the door swing.
• EIA/ECA-310-E Compliance: Standard 19-inch rack spacing confirmed to EIA/ECA-310-E, meaning virtually any rack-mount hardware — switches, NVRs, UPS units, patch panels — will mount without adapter rails. This is the spec that eliminates compatibility questions before they start.
• Caster-Ready Mobility: Ships with casters included, enabling repositioning of a loaded cabinet. Rated to 793.8 lb rolling — practical for staging in one area and final positioning in another without a full teardown.
• Included Hardware Pack: 50 M6 cage nuts and 50 M6 screws are enough to populate a significant portion of the 18U space on day one. The 10 ft hook-and-loop fastener strip handles internal cable management, and the included 1U shelf provides immediate storage for non-rack-mount equipment.
• 5-Year Warranty: StarTech backs the RK1833BKM with a 5-year manufacturer warranty — relevant for infrastructure that's expected to sit in place for years without replacement consideration.

Integration and Compatibility

Built to EIA/ECA-310-E, the RK1833BKM accepts standard 19-inch rack-mount equipment from any manufacturer. The 23.5 in (59.6 cm) internal width and 33.5 in (85.1 cm) internal depth provide clearance for full-depth 1U and 2U servers, deep UPS units, and high-port-count managed switches. The adjustable rail system accommodates 0-post, 2-post, and 4-post mounting configurations within the cabinet envelope. For server rack and enclosure deployments alongside surveillance infrastructure, this pairs well with PoE network switches and compact NVR appliances. Consult a network video recorder spec sheet to confirm depth before finalizing rail position — most compact NVRs fall well within the 29.9 in maximum depth. For cable-heavy installations, pair with a structured cable management solution to keep the interior clean at 18U density. A rack accessory like a blanking panel kit will also help maintain airflow discipline across unused rack units.

What's in the Box

• 1x StarTech RK1833BKM 18U 4-Post Enclosed Server Rack Cabinet
• 50x M6 Cage Nuts
• 50x M6 Screws
• 10 ft Hook and Loop Fastener Strip
• 1x 1U Shelf
• Casters (installed or included for attachment)

Frequently Asked Questions

Q: What is the maximum equipment weight the RK1833BKM can support?

A: The RK1833BKM is rated for 992.2 lb (450 kg) stationary and 793.8 lb (360 kg) when on casters and being moved. For populated deployments that remain in place, the 992 lb static rating gives substantial headroom for dense switching and UPS gear.

Q: What is the adjustable mounting depth range on the RK1833BKM?

A: The mounting rails adjust from 1.8 in (4.5 cm) minimum to 29.9 in (75.9 cm) maximum. This range supports everything from shallow patch panels and fiber termination panels to full-depth servers and high-capacity UPS units within the same cabinet.

Q: Does the RK1833BKM ship with mounting hardware?

A: Yes. The cabinet includes 50 M6 cage nuts, 50 M6 screws, a 10 ft hook-and-loop fastener strip for cable management, and a 1U shelf for non-rack-mount accessories.

Q: Is the RK1833BKM compatible with standard 19-inch rack-mount equipment?

A: Yes. The RK1833BKM is built to EIA/ECA-310-E standards, which defines the 19-inch rack-mount form factor used by virtually all commercial IT and networking equipment. Equipment from any manufacturer conforming to this standard will mount without adapters.

Q: Can the front door be reversed on the RK1833BKM?

A: Yes. The front door is both reversible and removable. This is useful when cabinet placement in a tight closet puts the hinge on the less convenient side — you can flip the swing direction or remove the door entirely for initial equipment installation.

Q: What is the warranty on the RK1833BKM?

A: StarTech covers the RK1833BKM with a 5-year manufacturer warranty.

Jerry Tildsen

The spec I keep coming back to on the RK1833BKM is the 1.8 in to 29.9 in mounting depth range — that is a genuinely wide window that covers almost everything you'd install in a compact IT closet. I've specified this cabinet for branch office deployments where the gear mix runs from shallow 1U PoE switches all the way back to a full-depth NVR appliance, and the adjustable rail system handles both without requiring a second enclosure. At 18U, it won't hold an entire enterprise stack, but it's the right size for a 20-to-40-camera surveillance head-end plus supporting network infrastructure.

Technical Highlights:

• 992 lb Static Load Rating: At 450 kg stationary capacity, you're not going to overload this cabinet even with a populated UPS, multiple managed switches, and an NVR in the same 18U space. That rating gives long-term confidence as gear gets added.
• Steel Mesh Ventilation: Front door and side panels are both steel mesh — passive airflow without fans. In a closet running 24/7 PoE switches and an always-on NVR, that thermal path matters more than it looks on paper.
• 50-Piece M6 Hardware Kit: Enough cage nuts and screws to populate a meaningful portion of 18U on day one, plus the 10 ft hook-and-loop strip handles cable bundling without separate sourcing. The included 1U shelf is a useful catch-all for non-rack gear like a small KVM or battery backup controller.

Deployment Considerations:

• At 130 lb (59 kg) empty and rated to 793.8 lb rolling, plan your floor loading carefully before finalizing location — combined weight of cabinet plus full gear load can approach 500 kg in a worst-case dense configuration.
• The 38.5 in total height with casters is the dimension to check against ceiling and overhead conduit clearance before delivery, not the 35.6 in cabinet-only height. A few inches matters in a tight mechanical room.

For a branch office or remote site security closet housing a compact NVR, a 24-port PoE switch, patch panel, and a small UPS — all within a lockable, ventilated enclosure that a single technician can reposition — the RK1833BKM is the size and spec combination that fits that scenario without overbuilding.
