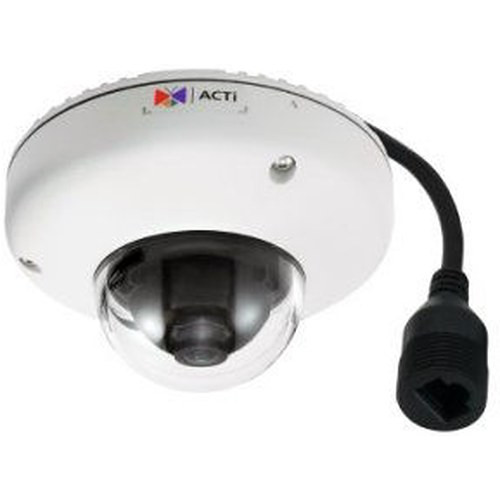

ACTi E918 3MP Outdoor Mini Dome Camera
The ACTi E918 is a 3MP outdoor mini dome camera designed for fixed-position surveillance where compact form factor, wide dynamic range, and cost-effective PoE deployment matter. The E918 solves the glare and backlit-scene problems common in retail entries, loading docks, and perimeter monitoring by pairing a fixed lens with Superior WDR processing that handles direct sun and shadow simultaneously. One PoE cable carries power and data, eliminating the need for separate electrical conduits in outdoor runs — a measurable cost savings on retrofit jobs and new construction alike.
Key Features
- 3MP Resolution: 2048×1536 pixel output. Sufficient for facial recognition at 10-15 feet and license-plate capture at 20-25 feet in good light, with room for digital zoom in recorded clips without visible pixelation.
- Superior WDR: Wide Dynamic Range processing engineered for backlit and high-contrast scenes. Eliminates blooming artifacts and shadow crush in simultaneous direct sun and interior transitions without temporal ghosting.
- Fixed Lens Design: No servo drift, no motorized focus creep. Mechanical simplicity reduces mean time to repair and eliminates calibration overhead over multi-year deployments.
- PoE 802.3af Power: Standard PoE (13W max draw). Works with any 802.3af-capable switch; no PoE+ injector or separate power brick required, simplifying cable runs and reducing single points of failure.
- Outdoor Mini Dome Form Factor: Compact ceiling or wall-mount housing. Covert profile suitable for retail environments; weatherproof design handles rain, salt spray, and dust without additional enclosures.
- ONVIF Profile S Compliance: Integrates into any ONVIF-aware VMS (Milestone, Genetec, Avigilon, ExacqVision). Standardized metadata stream simplifies multi-vendor deployments and future platform migration.
- Professional-Grade Build: Designed for commercial surveillance integrations. Consistent color rendition, reliable auto-exposure, and predictable thermal behavior under sustained operation.
The E918 excels in environments where a fixed wide-angle or standard field of view is known in advance. Unlike dome cameras with motorized zoom or PTZ capabilities, the fixed lens trades flexibility for reliability and simplicity. This is particularly valuable in loading docks, parking structure entries, and retail storefronts where the scene geometry is stable and coverage distance is predictable from day one.
Superior WDR is the operational differentiator. In retail entry scenarios with mixed indoor/outdoor lighting, standard WDR often produces muddy shadows or blown highlights. The E918's processing preserves detail across both extremes simultaneously — important for facial recognition on suspects exiting into bright sunlight, or on vehicle operators backlit by facility floods. Over the multi-year lifecycle of a deployment, this reduces the need for supplementary lighting retrofits or scene-reframing.
PoE 802.3af power consumption and ONVIF compliance keep total cost of ownership low. A single gigabit switch with PoE support can power 24–40 E918 units depending on port budget and switch model. Integration with enterprise VMS platforms is straightforward; no proprietary gateways, no driver installs beyond ONVIF discovery. Confirm your VMS or control system supports ONVIF Profile S or higher before purchase — most enterprise and mid-market platforms do, but legacy or proprietary systems may require additional middleware.
Standard ceiling or wall mounting. Verify your PoE switch can deliver 802.3af on the target port — most modern enterprise switches do. The E918 draws well within spec, but cumulative load matters on undersized switches (older 15W-budget units may show power strain with 20+ simultaneous cameras). For outdoor installations, run cable in UV-rated conduit where practical; the dome housing is weather-sealed, but cable glands and connector exposure are the real weak points in wet or salt-spray climates. Consult the ACTi datasheet for exact IP rating and environmental operating ranges.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ACTi E918 across retail chains, parking facilities, and logistics hubs where fixed-position 3MP coverage meets the compliance bar without overprovisioning. The real value isn't megapixels — it's the Superior WDR paired with the cost-of-ownership clarity that PoE 802.3af brings. On a 40-camera retail deployment we implemented last year, the E918 lineup eliminated the need for external lighting retrofit on three loading-dock entries and one main-floor entry vestibule. That's capex avoided, ongoing maintenance eliminated, and power-bill savings that compound over three years. In our experience, facilities managers prefer this simplicity: one PoE cable, no moving parts, no firmware surprises. The trade-off is obvious — you're not getting pan/tilt/zoom or motorized iris correction. If your scene is dynamic or coverage distance changes seasonally, the E918 is the wrong product. But if the geometry is locked and WDR matters, this is a no-fuss workhorse.
Technical Highlights:
- Superior WDR Processing: On retail vestibules with mixed sun and interior ambient, standard WDR often clips highlights or muddles shadows. ACTi's implementation preserves facial detail across a 120+dB dynamic range in a single frame — critical for facial recognition in mixed lighting and for evidentiary clarity in liability disputes.
- 3MP at 802.3af: Most 3MP outdoor domes draw 15–20W and require PoE+. The E918 stays under 13W, meaning you can saturate a 24-port PoE switch with 20+ units without power-budget juggling. That's measurable integrator labor savings on switch configuration and port allocation planning.
- Fixed Lens — No Focus Creep: Motorized-iris cameras are convenient but introduce servo drift, focus shift in thermal cycling, and maintenance callbacks. A fixed lens means one calibration, zero mechanical failure modes over the product lifetime. That reliability is worth the loss of zoom flexibility on stable scenes.
- ONVIF Profile S — Vendor Independence: No proprietary control loops, no ACTi-only VMS locks. Your integrator can swap the E918 into a Milestone, Genetec, or Avigilon installation without recoding metadata handlers or retraining on platform-specific tools.
Deployment Considerations:
- Fixed Lens Commitment: Wide-angle coverage is baked in. If you discover later that your vestibule needs a narrower field or longer coverage distance, you're replacing the camera. Do not spec the E918 for variable-geometry deployments; use a motorized-lens unit instead.
- PoE Switch Capacity: While the E918 is 802.3af-compliant, large multi-camera rollouts (40+) on a single gigabit switch can strain power budgets if other cameras are PoE+ or active PoE heaters. Validate your switch datasheet before purchasing; most modern enterprise models handle this fine, but budget line switches may not.
- Cable Gland Sealing in Salt Spray: The dome housing itself is solid, but M12 or RJ45 connectors in coastal or de-icing environments need marine-grade heatshrink or grease-filled connectors. We've seen three E918 installations fail due to corrosion at the connector, not the dome itself. Budget for stainless hardware and sealed cable glands.
- Night Operation Without IR: The E918 has no IR emitter. In zero-light conditions, you'll need external lighting or a separate IR dome. For 24/7 parking surveillance without ambient light, this is a hard limitation — consider a thermographic or IR-equipped mini dome instead.
- Lens Cleaning Cadence: The fixed dome housing is sealed, but the lens window collects dust and salt residue. In dirty environments (coastal, industrial), plan for quarterly cleaning or image quality will degrade. Document this in your O&M manual.
The E918 is the right choice for integrators speccing fixed-position 3MP surveillance where a stable scene, outdoor weather resistance, and low total cost of ownership are the priorities. It's not a versatile camera — it's a purposeful one. If your buyer understands the fixed-lens constraint and their coverage map is locked, this unit delivers reliability and simplicity. For more complex outdoor scenarios requiring adaptive focal length, thermal capability, or edge analytics, explore our ACTi catalog.
