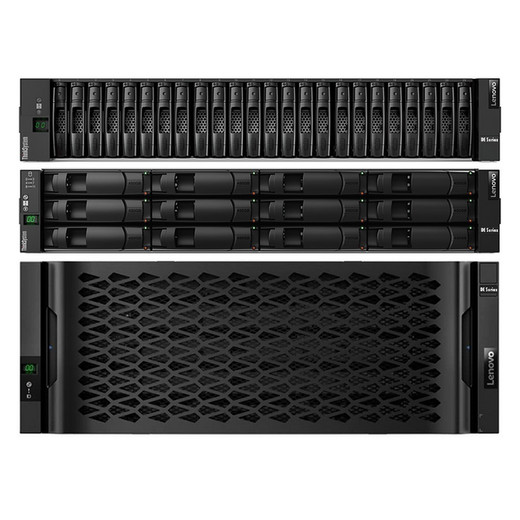

Lenovo 7Y74A00QWW ThinkSystem DE4000H 2U12 Hybrid Storage Array

Overview

The Lenovo ThinkSystem DE4000H 2U12 Hybrid Storage Array (7Y74A00QWW) is a 2U rack-mount storage platform engineered for enterprise environments that need a balance of spinning-disk capacity and solid-state performance without committing to an all-flash architecture. With 12 front-accessible 3.5-inch large-form-factor bays, a 32GB controller cache, and 12Gb/s SAS back-end connectivity, this chassis is built for organizations running mixed workloads — think network video recorders with deep retention pools, surveillance analytics servers, or enterprise SAN/NAS consolidation where raw terabyte density matters as much as throughput. The DE4000H series from Lenovo enterprise storage sits in the mid-range dual-controller tier: capable enough for production databases and video repositories, purpose-sized to avoid the cost premium of high-end all-flash arrays.

Key Features

• 12 x 3.5-inch LFF Drive Bays: Twelve large-form-factor slots in a 2U footprint let you populate up to 12 spinning drives — practical for enterprise storage deployments where you need raw capacity (think multi-terabyte NL-SAS or SATA HDDs) without expanding rack height. When you need to mix SSDs and HDDs, LFF bays with 3.5-to-2.5-inch adapters give you that flexibility within the same chassis.
• 32GB Controller Cache: The 32GB onboard controller cache is the performance multiplier here. Write-intensive workloads — continuous video ingest from dozens of IP cameras, transactional databases, or log aggregation — benefit from a large cache that absorbs bursts before committing to slower spinning media. More cache also means fewer random I/O penalties against HDDs during mixed read/write cycles.
• 12Gb/s SAS Back-End Connectivity: The 12Gb/s SAS interface doubles the theoretical bandwidth of legacy 6Gb/s SAS, which matters when you're moving large sequential streams — video file writes, backup jobs, or restore operations — across many drives simultaneously. SAS also provides better error recovery and drive reliability signaling compared to consumer-grade SATA, which is relevant for 24/7 always-on environments like surveillance storage.
• 2U Rack-Mount Form Factor: At 2U, this chassis integrates into standard 19-inch EIA racks alongside the rack servers and network infrastructure it's likely pairing with. Two rack units for 12 LFF bays is a reasonable density trade-off — you get meaningful raw capacity without burning half a rack on storage alone.
• Hybrid Storage Architecture: The hybrid designation means the controller supports both HDD and SSD media in the same enclosure. This is the right call when your workload isn't uniform: hot data (active video, indexed metadata) lands on SSDs for fast access, cold data (video archives, compliance retention) sits on HDDs at a fraction of the cost per terabyte. All-flash would over-provision cost; pure HDD would bottleneck random reads.
• ThinkSystem DE4000H Series Pedigree: The DE4000H controller platform supports dual-controller configurations for high availability, meaning a controller failure doesn't bring your storage offline. For surveillance and security workloads where continuous recording is a compliance requirement, that redundancy matters more than it does in batch-processing environments.

Integration and Compatibility

The 7Y74A00QWW is designed to integrate within Lenovo ThinkSystem rack environments and is compatible with standard 12Gb/s SAS HBAs and switches. The 2U12 chassis works with Lenovo's supported drive list covering NL-SAS, SAS, and SSD media — consult the Lenovo ThinkSystem DE4000H configuration guide to confirm specific drive models and maximum raw capacity before ordering drives separately. For enterprise networking and SAN fabric integration, the controller's host-side ports connect to Fibre Channel or iSCSI fabrics depending on the controller variant configured at time of purchase — verify the host interface card (HIC) specification matches your existing fabric before deployment. This chassis is not a standalone NAS device; it requires a connected host or fabric for data access, and management is handled through SANtricity OS, Lenovo's storage management software for the DE series.

Frequently Asked Questions

Q: What drive types are compatible with the 7Y74A00QWW 2U12 chassis?

A: The DE4000H 2U12 chassis supports 3.5-inch large-form-factor drives across NL-SAS, SAS, and SSD media types via the 12Gb/s SAS back-end. Specific compatible drive models and capacities are listed in the Lenovo ThinkSystem DE4000H configuration guide — always validate against that list before purchasing drives separately.

Q: Does the 7Y74A00QWW support dual-controller high availability?

A: The ThinkSystem DE4000H series is designed for dual-controller configurations. Whether this specific unit ships with one or two controllers depends on the configuration ordered — verify the bill of materials for your purchase to confirm HA readiness out of the box.

Q: Can the 2U12 chassis be used as a standalone NAS device?

A: No. The DE4000H is a SAN/block-storage array, not a standalone NAS appliance. It requires a connected host server or storage fabric (FC or iSCSI depending on HIC) and is managed through Lenovo SANtricity OS. It does not provide native file-level (NFS/SMB) access without a gateway or host layer.

Q: What is the back-end interface speed of the 7Y74A00QWW?

A: The drive-side back-end runs at 12Gb/s SAS, which provides significantly higher throughput than legacy 6Gb/s SAS configurations — relevant for high-ingest workloads like continuous video recording or large sequential transfers.

Q: Is this chassis suitable for surveillance video storage?

A: Yes, the DE4000H 2U12 is well-suited for high-capacity surveillance storage environments. The 12-bay LFF configuration supports high-density NL-SAS or SATA HDDs for deep video retention, while the 32GB controller cache handles the sustained write loads typical of multi-channel IP camera recording. Pair it with an appropriately configured NVR or video management server for a complete solution.

Karl Wilson

The detail I keep coming back to on the 7Y74A00QWW is the 32GB controller cache paired with 12Gb/s SAS — that combination is what separates this from lower-tier arrays when you're dealing with sustained multi-stream video ingest. In a 64-camera deployment recording at 4K, you're pushing roughly 300–500 MB/s of sustained write throughput; a thin cache on a 6Gb/s back-end will serialize writes and create buffering artifacts at the NVR. The DE4000H's cache absorbs those write bursts cleanly.

Technical Highlights:

• 32GB Controller Cache: Absorbs bursty write workloads before committing to spinning media — critical for sustained video ingest scenarios where write latency spikes cause frame drops or buffer overflows at the recording server.
• 12Gb/s SAS Back-End: Doubles the bandwidth ceiling of legacy 6Gb/s SAS, giving headroom for parallel drive access across all 12 bays during simultaneous read (playback) and write (live recording) operations.
• 12 x 3.5-inch LFF Bays: Maximum raw capacity per rack unit — if you're storing 30-day retention for a large camera count, LFF NL-SAS drives at 16–20TB each means this chassis can house 192–240TB raw in 2U, before RAID overhead.

Deployment Considerations:

• This is a SAN array, not a plug-and-play NAS — budget time for SANtricity configuration, HIC selection, and fabric or direct-attach cabling before go-live. It's not a device you rack and immediately point an NVR at without host-side setup.
• The host interface card (HIC) type determines your connectivity options (FC vs. iSCSI); confirm the HIC spec matches your existing network or fabric infrastructure before the unit ships, since field HIC changes require controller access and may affect warranty procedures.

For physical security operations centers or campus-wide surveillance buildouts where 30-to-90-day retention at high resolution is a compliance requirement, the DE4000H 2U12 is the right storage tier — dense enough to minimize rack footprint, cached heavily enough to handle the write load, and enterprise-grade enough to support the HA configurations those environments demand.
