Lenovo Thinksystem DE 120S 2U12 EXP - 7Y63A000WW

Lenovo 7Y63A000WW ThinkSystem DE 2U12 LFF Expansion Enclosure

The Lenovo 7Y63A000WW is a 2U, 12-bay large form factor (LFF) expansion enclosure designed for the ThinkSystem DE Series storage platform. If you're scaling out a DE-family SAN or DAS storage array and need raw 3.5" SAS drive capacity in a dense rack footprint, this is the enclosure to evaluate. It accepts up to 12 LFF HDDs per 2U of rack space — and across a fully populated DE Series stack, raw usable capacity can reach up to 3.375 PB (192x 18 TB LFF HDDs). That's the kind of headroom that matters in surveillance retention, HPC scratch, or archival workloads where terabytes-per-rack-unit is a real purchasing criterion.

Key Features

• 12x 3.5" LFF SAS Bays in 2U: Twelve large form factor bays in a 447mm wide, 85mm tall (2U), 483mm deep chassis gives you a high drive density without burning excessive rack space. On a 42U rack, you're looking at potential for 21 of these units — though thermal and power budget will govern actual density in practice.
• SAS Drive Interface: SAS connectivity (rather than SATA) delivers higher sustained throughput, dual-port redundancy at the drive level, and better error recovery — all relevant when you're running RAID across spinning media under continuous write workloads like surveillance or backup.
• RAID 0, 1, 3, 5, 6, and 10 plus Dynamic Disk Pools: The DE platform supports a full complement of RAID levels. RAID 6 tolerates two simultaneous drive failures — important on larger spindle counts where a RAID 5 rebuild window creates meaningful double-fault exposure. Dynamic Disk Pools (DDP) go further by distributing spare capacity across all drives, dramatically shortening effective rebuild times versus traditional hot-spare models. Note: RAID 3 requires CLI configuration — it is not available through the GUI.
• Dual Active-Active Controllers with Cache Mirroring: Two controllers operate simultaneously with automatic load balancing — no active/passive failover latency. Controller memory scales from 8 GB to 32 GB per controller (16 GB to 64 GB per system). Cache is mirrored between controllers and flash-backed with battery-assisted destaging, meaning a controller failure or power event won't silently corrupt in-flight writes.
• Flash-Backed Cache Protection: The battery-backed flash destaging mechanism protects write cache contents through power loss. For 24/7 surveillance or database workloads where write integrity is non-negotiable, this is the spec to verify — not all storage enclosures at this price tier include it natively.
• Redundant Hot-Swap 913W Power Supplies: Two hot-swap Platinum-rated 913W PSUs (100–240V) ship standard. Hot-swap means a PSU failure during operation does not require downtime to replace — you pull the failed unit and slide in the replacement while the array stays online. Platinum efficiency rating reduces heat load in dense deployments.
• Full Hot-Swap Parts Inventory: Controllers, I/O modules, drives, power supplies, and SFP+/SFP28 transceivers are all hot-swappable. This is the design pattern that makes field servicing practical without scheduling maintenance windows — relevant for any deployment with an uptime SLA.
• Comprehensive Security Stack: SSL, SSH, role-based access control (RBAC), LDAP authentication, and an optional FIPS-drive encryption path cover the access control and data-at-rest requirements most enterprise security policies mandate. RBAC in particular matters when storage administration is shared across teams — you can scope operator access without granting admin privileges.
• Broad Host OS Compatibility: Validated against Microsoft Windows Server, RHEL, SLES, and VMware vSphere — covering the dominant enterprise hypervisor and OS stack. If your environment runs a mix of bare-metal Windows and VMware ESXi hosts, the DE platform supports multi-host configurations without requiring a homogeneous OS environment.
• Standard Software Feature Set: Snapshots (up to 128 targets standard, 512 with optional license), SSD read cache, volume copy, thin provisioning via DDP, and data assurance are included without additional per-feature licensing at the base level. Optional synchronous and asynchronous mirroring extends the platform to active-active or DR replication scenarios.
• Out-of-Band Management per Controller: Each controller has a dedicated 1 GbE RJ-45 management port — keeping management traffic completely off the data path. Serial console (RJ-45 and Micro-USB) is also available for initial configuration or break-glass access. Management interfaces include a web GUI (System Manager), standalone SAN Manager, SSH CLI, SMI-S, SNMP, email, and syslog — covering both GUI-oriented administrators and scripted/orchestrated environments.

Integration and Compatibility

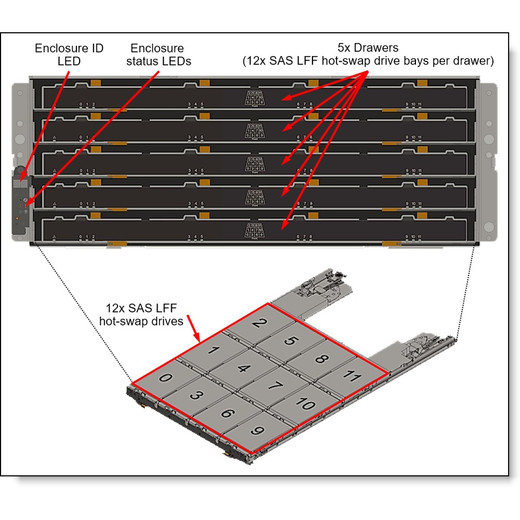

The 7Y63A000WW is designed as part of the Lenovo ThinkSystem DE storage family. The DE Series chassis lineup spans 2U12 (LFF), 2U24 (SFF), and 4U60 (LFF) form factors — allowing capacity expansion across different drive geometries within the same management domain. Controller upgrades between 8 GB and 32 GB memory configurations are supported, and the platform integrates with optional Lenovo XClarity for unified infrastructure management alongside compute nodes.

For environments requiring SAN-level integration, SMI-S provider support enables compatibility with third-party storage management frameworks. SNMP and syslog alerts integrate with standard NOC monitoring stacks without requiring vendor-specific agents on the management server.

Organizations running network video recorders or large-scale surveillance retention workloads should validate that the attached VMS platform's storage throughput requirements align with the configured RAID level and controller memory tier — particularly for multi-stream concurrent write scenarios where cache sizing directly impacts sustained write performance.

Frequently Asked Questions

Q: What RAID levels does the Lenovo 7Y63A000WW support?

A: The DE Series platform supports RAID 0, 1, 3, 5, 6, and 10, plus Dynamic Disk Pools (DDP). RAID 6 tolerates two simultaneous drive failures. RAID 3 is available only through the CLI — not the GUI. Dynamic Disk Pools distribute spare capacity across all drives for faster effective rebuild times.

Q: How many drives does the 7Y63A000WW support and what interface do they use?

A: The 2U12 enclosure supports up to 12 large form factor (LFF) 3.5-inch SAS drives. Across a fully populated DE Series deployment, total raw capacity can reach up to 3.375 PB using 18 TB LFF HDDs.

Q: Does the 7Y63A000WW include redundant power supplies?

A: Yes. Two hot-swap Platinum-rated 913W power supplies (100–240V) are included. Both are hot-swappable, so a PSU failure does not require system downtime to replace.

Q: What controller memory options are available for the DE Series?

A: Controllers are available in 8 GB or 32 GB per-controller configurations, providing 16 GB or 64 GB per system. Cache is mirrored between the two controllers and is flash-backed with battery-assisted destaging to protect in-flight writes during power events.

Q: What host operating systems are supported?

A: The DE Series is validated with Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), and VMware vSphere.

Q: What management interfaces does the DE Series support?

A: Management options include a web-based System Manager GUI, SAN Manager standalone GUI, SSH CLI, serial console CLI, SMI-S Provider, SNMP, email, and syslog alerts. Optional Lenovo XClarity integration is also available. Each controller has a dedicated 1 GbE out-of-band management port plus RJ-45 and Micro-USB serial console ports.

Eden Phillips

The 7Y63A000WW is the 2U12 LFF expansion chassis for Lenovo's DE Series — and the spec that shapes most deployment decisions here is the dual active-active controller design with cache mirroring. Unlike active/passive configurations where a controller failover introduces a brief service interruption, active-active with automatic load balancing means both controllers are handling I/O continuously. Pair that with flash-backed battery destaging and you have a write-path that survives both controller faults and power events without data loss — which is the baseline requirement for any 24/7 surveillance or database workload.

Technical Highlights:

• Dynamic Disk Pools (DDP): Traditional RAID hot-spare models leave spare drives idle until a failure occurs, then rebuild from a single spare — a process that can take hours on large-capacity HDDs and exposes you to a second-drive failure during that window. DDP distributes spare capacity across all drives, dramatically shortening rebuild time and reducing double-fault exposure. Worth prioritizing over RAID 5 or RAID 6 on high-drive-count configurations.
• Controller Memory Scaling (8 GB to 32 GB per controller): At 32 GB per controller (64 GB per system), the write cache is large enough to absorb bursty ingest from multi-stream surveillance or batch database commits without immediately hitting the spindle layer. Choosing the 8 GB tier is acceptable for lighter sequential workloads, but size the cache to your peak concurrent write throughput — undersizing here is the most common field configuration mistake on DE deployments.
• Redundant 913W Platinum Hot-Swap PSUs: Two hot-swap supplies at 913W each handle the full drive complement with headroom. Platinum-rated efficiency matters in high-density racks where waste heat is a real thermal management problem — a few percentage points of efficiency at 913W adds up across multiple enclosures sharing rack cooling resources.

Deployment Considerations:

• RAID 3 is CLI-only — if your team manages storage exclusively through the System Manager web GUI, factor in the CLI access and training requirement before specifying RAID 3 as the target configuration. Most modern workloads are better served by RAID 6 or DDP anyway.
• The 1 GbE out-of-band management port per controller is a separate physical NIC that must be cabled to your management VLAN. On initial rack deployment, this is easy to overlook — the data path ports come up first, and management access failures only surface when you need out-of-band visibility during a fault event. Cable management ports during initial install, not after the first incident.

This enclosure is a strong fit for large-scale surveillance retention infrastructure — specifically NVR-attached storage deployments running 60+ camera channels where continuous write workloads demand predictable rebuild behavior and cache-protected write paths. The DE 2U12 LFF chassis gives you the drive density and resiliency architecture to support multi-petabyte retention targets in a rack footprint that doesn't balloon your data center floor plan.
