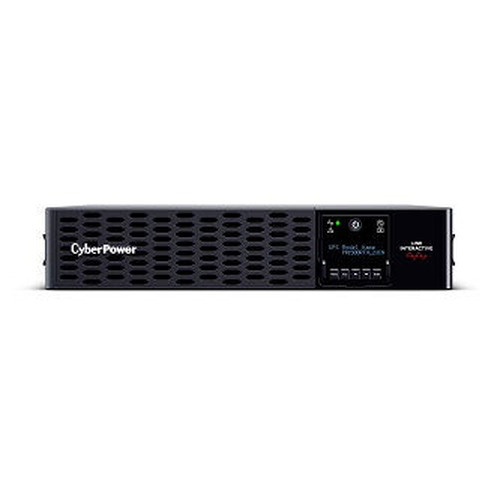

CyberPower PR1500RTXL2UCN Line-Interactive UPS

Overview

The CyberPower PR1500RTXL2UCN is a 1500VA/1500W line-interactive UPS designed to provide clean, reliable battery backup and surge protection for critical IT equipment, including servers, network switches, and workstations. Its sine wave output ensures compatibility with sensitive electronics, preventing operational issues. This rackmount unit is ideal for deployment in standard 19-inch server racks within data centers or network closets, offering essential power conditioning and runtime during utility outages or fluctuations. The PR1500RTXL2UCN features a 2430 Joule surge energy rating, absorbing excess voltage to protect connected devices from damaging spikes.

Compatibility

This UPS is designed to support a wide range of IT hardware. It is compatible with standard 19-inch rackmount server chassis and network equipment. The unit's 8x NEMA 5-15R outlets provide sufficient connection points for typical server rack configurations. It operates effectively with equipment requiring a pure sine wave power output, such as high-end servers, active PFC power supplies, and sensitive networking gear. The input operation voltage range of 75-149V AC accommodates common utility power variations. It also supports the RMCARD205 cloud management card for remote monitoring and control.

Installation Notes

The PR1500RTXL2UCN is a 2U rackmount unit, requiring standard rack rails for installation. It connects to a standard 120V/15A wall outlet. The unit's maximum current draw is 15A. Ensure adequate ventilation around the unit, as it dissipates 96.7 BTU/h. The noise level is rated at 55.5 dB, which is typical for a UPS of this capacity and should be considered for deployment in quiet environments. The response time of 6 ms ensures minimal interruption when switching to battery power.
