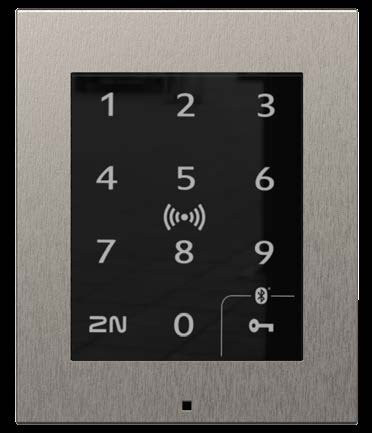

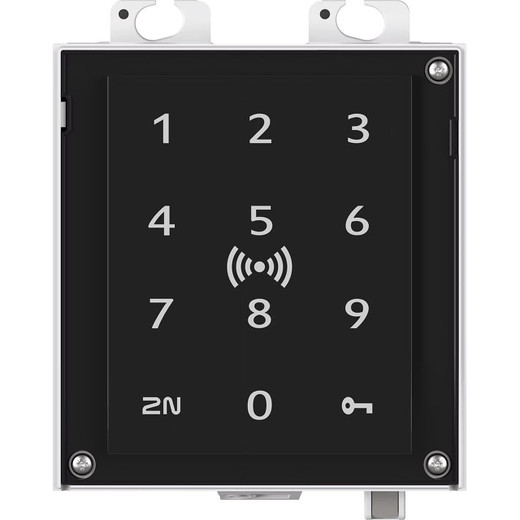

2N 02774-001 AU2.0 Multi-Frequency RFID Reader
The 2N 02774-001 consolidates three credential technologies—125kHz, 13.56MHz, and NFC—into a single compact reader designed for enterprise access control deployments. Rather than maintaining separate hardware for each standard, this unified approach eliminates inventory fragmentation and reduces deployment complexity across facility access points. The integrated keyboard input adds multi-factor authentication capability, letting you combine card or NFC verification with PIN entry in a single device. If your organization is managing mixed legacy card stocks alongside modern smart card or mobile credential adoption, this reader bridges that gap without forcing wholesale infrastructure replacement.
Key Features
- 125kHz Low-Frequency RFID: Reads legacy proximity cards directly, protecting your existing card inventory investment during migration to modern technologies. Operating at 125kHz means no separate reader hardware needed alongside higher-frequency equipment—consolidation reduces panel space and wiring complexity.
- 13.56MHz Smart Card Support: Processes ISO/IEC 14443 Type A/B credentials, enabling deployment of modern smart cards without requiring parallel reader infrastructure. This frequency standard supports higher data rates than 125kHz, critical for encrypted credentials and advanced access policies.
- NFC Mobile Credential Compatibility: Reads NFC-enabled mobile devices natively, eliminating the need for proprietary smartphone apps or secondary hardware when deploying phone-based credentials to staff. This matters as mobile credentials reduce card loss and replacement cycles.
- Integrated Numeric Keypad: Built-in keyboard enables PIN verification alongside contactless credentials, supporting two-factor workflows common in secure facilities and high-security zones. Reduces the need for separate PIN pad hardware, lowering panel footprint and integration cost.
- PICard Format Native Support: Direct compatibility with PICard credential format ensures seamless integration with 2N access control systems and third-party platforms standardized on this format. Eliminates credential conversion overhead and reduces middleware complexity.
- Wall-Mount Compact Design: Purpose-built for indoor panel mounting at access points. The compact form factor fits standard cavity depths without requiring extensive enclosure modifications, speeding installation and reducing site-specific customization.
Integration & Compatibility
The 02774-001 integrates directly with 2N access control systems via standard access control interfaces. PICard format support ensures compatibility with third-party access management platforms that recognize this credential standard. Keyboard input connects via standard wired interface, simplifying integration into existing panel architectures. The multi-frequency design means a single reader installation point can authenticate users holding any of the three credential types—eliminating the "wrong reader at this door" scenario common in mixed-technology environments.
Deployment Scenarios
Enterprise offices with established 125kHz card populations benefit most when modernization timelines span multiple years—this reader lets you deploy new 13.56MHz or NFC credentials at new access points while existing cards remain functional across the facility. Multi-tenant buildings with different credential standards per tenant can standardize on the 02774-001 and support all tenant credential types from a single reader SKU. Secure facilities performing phased NFC adoption can issue mobile credentials to new staff while legacy cardholders retain access without re-issuance. Installations requiring PIN supplementation alongside card authentication—common in high-security zones—can eliminate the need for separate PIN pad hardware by leveraging the integrated keyboard.
When evaluating this reader against alternatives, consider your facility's current credential technology distribution. If you operate exclusively modern smart cards or NFC, a single-frequency 13.56MHz reader may reduce cost. If you maintain only legacy 125kHz cards with no modernization path planned, dedicated 125kHz hardware may be more cost-effective. The 02774-001 justifies its footprint when your deployment supports at least two of the three credential types simultaneously or anticipates a multi-year transition between standards.
Frequently Asked Questions
Q: Does the 02774-001 work with existing 2N access control systems?
A: Yes. The reader integrates directly with 2N access control platforms via standard interfaces and supports PICard credential format natively, ensuring direct compatibility without middleware or conversion layers.
Q: Can I use the 02774-001 to authenticate users with 125kHz cards and a PIN simultaneously?
A: Yes. The integrated keyboard allows you to configure two-factor authentication workflows where users present a 125kHz, 13.56MHz, or NFC credential followed by PIN entry, supporting high-security access policies.
Q: What mounting options are available for the 02774-001?
A: The reader is designed for wall-mount installation at standard access panel locations. Mounting templates and integration documentation are available from 2N or your integrator to guide cavity preparation and installation.
Q: Can the 02774-001 be integrated with third-party access control systems?
A: Integration depends on third-party platform support for PICard format credentials and standard access control interfaces. Consult your access management system documentation or integrator for compatibility confirmation.
Q: Does the 02774-001 require external power or separate pin pads?
A: The integrated keyboard eliminates the need for separate PIN pad hardware. Power requirements depend on your access control system configuration; consult the product datasheet for electrical specifications and integration requirements.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 02774-001 solves a real problem in mixed-credential environments: eliminating reader redundancy. I've walked through too many facilities with three separate readers at each door—one for legacy 125kHz, one for 13.56MHz, one for NFC—all because the credential stock was fragmented across technology generations. The 2N 02774-001 consolidates this into a single compact wall-mount unit, which cuts your parts inventory, simplifies wiring, and reduces the likelihood of credential-reader mismatches at access points.
Technical Highlights:
- Tri-Frequency Support (125kHz, 13.56MHz, NFC): A single reader handles all three standards means you issue new smart cards or mobile credentials without deploying parallel hardware. This matters most in phased modernization projects where you're rolling out new credential types over 2–3 years while legacy cards remain in circulation.
- Integrated Keyboard for Multi-Factor Auth: Two-factor workflows (card + PIN) eliminate the need for separate PIN pad hardware, reducing enclosure size and wiring complexity. Particularly valuable in secure facilities or high-turnover environments where PIN enforcement is a compliance requirement.
- PICard Format Native Support: Direct compatibility with PICard ecosystems minimizes middleware overhead. If you're running 2N systems or third-party platforms standardized on PICard, credential provisioning and authentication flows require no conversion or translation logic.
Deployment Considerations:
- This reader justifies its cost when you operate at least two credential types simultaneously. If your facility is 100% modern smart card or 100% legacy proximity, a single-frequency reader may be more economical.
- Integration with third-party access control systems depends on their support for PICard and standard access control interfaces. Verify compatibility with your VMS or access management platform before specifying.
Best fit: enterprise campuses with mixed legacy/modern card stocks, multi-tenant buildings where different tenants use different credential standards, and facilities performing phased NFC adoption alongside existing card populations. The 02774-001 cuts your total reader count and eliminates the "wrong technology at this door" problem that plagues fragmented deployments.
