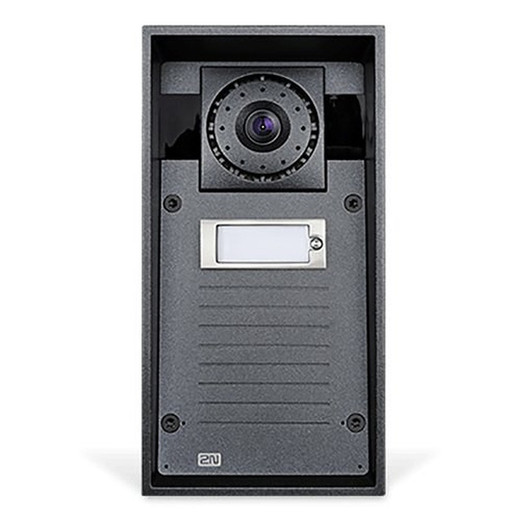

2N 01337-001 IP Force Single Button HD Camera Intercom
The 2N 01337-001 is a purpose-built network intercom station designed for secure access control and two-way communication in enterprise entry environments. This is a compact, weather-sealed device that combines HD video verification, full-duplex audio communication, and IP-based control — intended for outdoor deployment where reliability and simplicity matter as much as functionality. The single-button architecture eliminates complexity in high-traffic scenarios, while integrated outdoor camera capability provides visual verification for access decisions and audit trails.
Key Features
- Single Programmable Button — One configurable button reduces user error and training overhead compared to multi-function keypads. Critical in environments where untrained visitors or staff must operate the device quickly and correctly.
- HD Video Camera — Integrated camera enables real-time visitor identification and recorded event documentation. This non-repudiation capability is essential for access control audit trails and incident investigation.
- Full-Duplex Audio with Noise Cancellation — Advanced audio processing with echo suppression and noise cancellation ensures clear two-way communication in noisy outdoor and industrial environments — a practical advantage over single-direction systems.
- H.265 Video Compression — This codec cuts storage and bandwidth requirements roughly 40–60% compared to H.264 on similar quality scenes. Meaningful when recording 24/7 across multiple intercoms or integrating with larger NVR deployments.
- PoE-Powered Design — Draws power via standard Ethernet 10/100 Base-T with integrated PoE support. Eliminates the need for dedicated 12VDC or AC power runs — a real cost and complexity reduction on retrofit projects or campuses with limited infrastructure.
- IP69K and IK10 Certification — IP69K means direct jets of water and dust won't penetrate; IK10 handles heavy physical impact. Together these ratings ensure reliable operation in harsh outdoor climates, industrial facilities, and high-traffic entry points without protective housings or frequent maintenance.
- Extended Temperature Range — Operates reliably from -40°C to +55°C (-40°F to +131°F). This wide operating envelope eliminates the need for climate-controlled enclosures in cold climates or sun-exposed installations, simplifying deployment and reducing cabinet costs.
- Wide-Angle Video Capture — Comprehensive field of view optimizes visitor recognition and environmental awareness at entry points, reducing the need for secondary cameras dedicated to entry verification.
Integration and Deployment Context
The 01337-001 integrates with IP access control systems and VMS platforms via standard ONVIF-compatible architecture. The single Ethernet run supplies both power and data, making it well-suited for retrofit applications where running separate power infrastructure is not feasible. H.265 compression and modest bandwidth footprint allow deployment across standard PoE switch infrastructure without requiring specialized power supplies or high-capacity uplinks.
Ideal use cases include secure building entry verification, industrial facility gate stations, multi-tenant property intercom systems, event venue access points, and emergency communication stations where both visual identification and audio confirmation are required. The outdoor durability and compact form factor make it practical for wall or pole mounting at exterior checkpoints.
When to Choose a Different Model
If your deployment requires variable zoom or pan-tilt capability for wider coverage, or if you need higher resolution for detailed facial recognition at distance, consider a higher-megapixel or PTZ variant within the 2N product family. If full submersion or sustained high-pressure washdown is required, confirm IP69K is sufficient for your exact environment — some industrial wash-down applications require IP6K9K or higher. If your infrastructure lacks PoE power availability or cannot support Ethernet runs to the intercom location, a 12VDC or AC powered variant may be more practical.
Frequently Asked Questions
Q: Does the 2N 01337-001 support ONVIF?
A: Yes. The device integrates with ONVIF-compatible VMS platforms and access control systems, enabling standard video streams and event integration without proprietary drivers or gateway hardware.
Q: What is the power consumption of the 01337-001?
A: The device is powered via standard 802.3af PoE. Exact wattage is specified in the manufacturer datasheet; verify power budget on your PoE switch to ensure sufficient headroom if deploying multiple units on the same circuit.
Q: Can I mount the 01337-001 outdoors year-round?
A: Yes. The IP69K/IK10 ratings and -40°C to +55°C operating range support permanent outdoor installation in all standard climates. No climate control or protective housing is required.
Q: Does the intercom require a separate audio amplifier or speaker?
A: The 01337-001 includes integrated speakers and microphones for full-duplex audio communication. No external audio equipment is necessary for basic intercom operation, though integration with building PA systems is possible depending on your access control platform.
Q: What compression codecs are supported?
A: The device uses H.265 as its primary codec, delivering efficient bandwidth and storage utilization. Compatibility with H.264 and MJPEG streams depends on your VMS platform's support — confirm with your video management system documentation.
Q: How do I configure the programmable button?
A: Button configuration is typically handled through your access control system or VMS administrative interface. Refer to the 2N IP Force technical documentation for detailed provisioning steps specific to your platform.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 2N 01337-001 fills a critical gap in access control environments where simple, reliable communication and visual verification are non-negotiable. The single-button design eliminates user error compared to multi-function keypads, and the integrated HD camera provides non-repudiation evidence for every intercom event. PoE-powered architecture substantially reduces installation complexity and cost — particularly valuable for retrofit projects where running dedicated power infrastructure is prohibitively expensive or impossible.
Technical Highlights:
- IP69K/IK10 Durability: These ratings mean the 01337-001 handles sustained outdoor exposure without climate enclosures or protective housings. IK10 protects against deliberate impact or weather-driven debris; IP69K prevents water ingress from high-pressure washdown or direct jets. In practice, this translates to minimal maintenance and no seasonal winterization.
- H.265 Codec Efficiency: At 40–60% bandwidth reduction versus H.264, H.265 lets you record 24/7 on standard PoE infrastructure or store events longer on modest NVR capacity. Real benefit when deploying a dozen intercoms across a campus.
- -40°C to +55°C Operating Range: No climate control required. Eliminates heated or cooled cabinet costs in cold climates or sun-exposed installations. Critical for remote facilities or outdoor parking checkpoints where HVAC is unavailable.
Deployment Considerations:
- Confirm your PoE switch has sufficient power budget per port — 802.3af provides adequate headroom for this device, but running eight 01337-001 units on a single 60W switch won't work.
- Single-button design is a strength for untrained users but limits flexibility. If your deployment requires multiple call destinations or complex logic, verify your access control platform supports the routing and escalation paths you need.
- HD video is sufficient for visitor identification at typical entry distances (5–15 feet). If you need facial recognition at 50+ feet or detailed license-plate capture, this is not the right tool.
The 01337-001 is the right choice for industrial gate checkpoints, multi-tenant building entry, event venue access stations, and corporate campus visitor verification — any environment where durability, simplicity, and PoE convenience outweigh the need for zoom or advanced analytics.
