2N 01334-001 IP Force HD Camera Single Button Access Control Reader
The 2N 01334-001 is an integrated IP intercom station engineered to combine video verification with single-button access control in a ruggedized form factor. This device installs at secure entry points—building lobbies, multi-tenant access gates, healthcare facilities, critical infrastructure checkpoints—where you need both visual caller identification and controlled entry in one endpoint. Unlike standalone intercoms or separate access readers, the 01334-001 converges these functions, reducing installation points and simplifying network architecture.
Key Features
- Integrated HD Camera for Caller Verification: Built-in high-definition video capture enables real-time visual identification before access decisions are made. Eliminates the need for a separate door camera, reducing bill-of-materials cost and network port count.
- Single Programmable Button Interface: One dedicated button minimizes user confusion during high-volume entry scenarios or emergency conditions. Button can be configured for direct communication, emergency dispatch, or custom function triggering, reducing the cognitive load on visitors and staff.
- External Card Reader Port: Supports RFID, NFC, and other secure access card technologies for multi-factor authentication workflows. Integrates with your existing card reader infrastructure without replacing installed systems.
- Pictogram Display System: Integrated visual communication icons guide users through entry workflows in multilingual environments, eliminating language barriers at international facilities or high-traffic reception areas.
- Full-Duplex Audio with 10W Loudspeaker: Two-way voice communication includes advanced noise cancellation and echo suppression. The 10W speaker delivers intelligible dialogue in outdoor environments with ambient noise, critical for gate and perimeter installations.
- Power over Ethernet (PoE) Architecture: Single Ethernet 10/100 Base-T connection delivers both data and power via standard 802.3af—no separate 24VDC supply or additional cabling infrastructure required. Reduces power panel complexity and eliminates dedicated power infrastructure costs.
- Network Security Integration: 802.1X authentication compliance ensures the device integrates seamlessly into corporate network policies without requiring separate VLANs or security exceptions.
- Extreme Environmental Durability: IP69K rating protects against direct water jets and high-pressure washing; IK10 rating handles impacts and vandalism attempts. Operating temperature range of -40°C to +55°C supports arctic, tropical, and desert deployments without environmental enclosures or seasonal derating.
Integration & Compatibility
The 01334-001 integrates with IP-based access control systems via standard Ethernet connectivity. External card readers (RFID/NFC) connect through the dedicated reader port. Two-way audio and video streams are transmitted over the same PoE connection, simplifying backbone switch provisioning. When evaluating PoE power planning, confirm your switch delivers sufficient 802.3af wattage; the 01334-001 draws power within standard 15.4W per-port limits, so it will not strain legacy infrastructure.
Deployment Scenarios

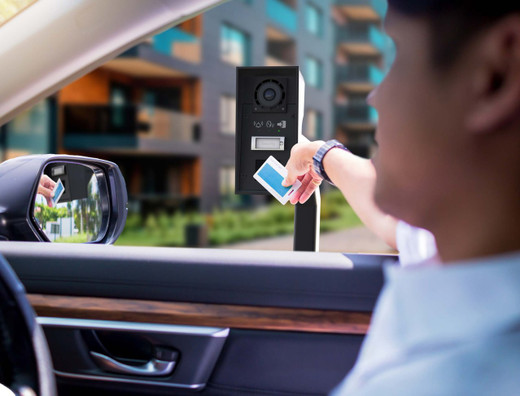

Install at secure building entrances where visitor verification is mandatory before door release. Deploy at multi-tenant residential and commercial access gates to replace aging intercom systems. Use in healthcare and critical infrastructure facilities where visual identification and audio screening reduce unauthorized access attempts. Position at outdoor perimeters and loading docks where IP69K/IK10 durability handles weather, dust, and intentional physical attack.
When to Choose a Different Model
If your facility requires integrated card reader (no external reader port), or if you need video analytics (motion detection, face recognition) embedded in the device, evaluate alternative models within the 2N IP camera family that offer higher-level intelligence. If PoE power is unavailable and you require DC-only operation, confirm local power infrastructure before proceeding.
Frequently Asked Questions
Q: Does the 2N 01334-001 support H.265 compression?
A: The datasheet confirms HD video capture but does not specify compression codec support in available documentation. Verify codec compatibility with your VMS or access control platform before deployment.
Q: What is the maximum resolution of the integrated camera?
A: The device is marketed as "HD Camera" with integrated high-definition video; specific megapixel count and frame rate are not listed in current evidence. Contact the manufacturer or integrator for detailed sensor specifications.
Q: Can the 01334-001 operate indoors and outdoors?
A: Yes. IP69K and IK10 ratings combined with -40°C to +55°C operating range support both indoor and outdoor deployment. However, extended direct sunlight exposure may affect display legibility; consider housing or ventilation in extreme climates.
Q: Does the device require a separate power supply or UPS backup?
A: No. The 01334-001 draws power via standard PoE (802.3af) over a single Ethernet cable. If you require power continuity during mains failure, provision UPS-backed PoE injectors or managed PoE switches upstream.
Q: Is the external card reader port compatible with my existing RFID readers?
A: The device supports RFID and NFC card reader integration through its external reader port. Verify your card reader's connector type and protocol (Wiegand, Mag-stripe, etc.) against the 01334-001 specifications before purchase.
Q: What is the warranty on the 2N 01334-001?
A: Warranty details are not specified in current product evidence. Confirm warranty terms and support options with your specialty distributor or 2N directly.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
The 2N 01334-001 (often searched as 01334 001) represents a practical convergence of IP intercom and access control in a single hardened endpoint. Its IP69K/IK10 durability and -40°C to +55°C operating range are genuine differentiators for outdoor and harsh-environment deployments where commercial consumer intercoms simply fail. The single programmable button is intentional design—not a limitation—because it cuts user friction in high-volume entry scenarios and eliminates confusion during stress or emergency conditions.
Technical Highlights:
- IP69K + IK10 Rating: Resists direct water jets (high-pressure washing), heavy dust ingress, and physical impact—mandatory for gate stations, loading docks, and perimeter installations. You can deploy this without environmental enclosures that degrade video quality or audio clarity.
- Extended Temperature Operation (-40°C to +55°C): No thermal derating or seasonal power management required. Arctic facilities, tropical ports, and desert checkpoints all operate within spec without supplemental cooling or heating infrastructure.
- PoE (802.3af) Power Delivery: Standard switch port; no dedicated 24VDC supply. Reduces power panel footprint, eliminates separate cabling runs, and simplifies UPS provisioning if backup power is required.
- 10W Full-Duplex Loudspeaker with Noise Cancellation: Intelligible dialogue in outdoor environments with ambient wind, traffic, or industrial noise—a real requirement at perimeter gates and loading areas where 2–3W speakers become useless.
Deployment Considerations:
- The external card reader port is flexible but requires careful connector/protocol verification. Ensure your RFID or NFC system matches the reader port specification before committing to hardware.
- Video codec and specific resolution are not detailed in available documentation. Obtain codec details from the manufacturer or integrator early—this affects VMS compatibility and storage calculations if recording is required.
- PoE power draw is within 802.3af limits, but verify your switch has available PoE budget if deploying multiple units across the same infrastructure.
Choose the 01334-001 for outdoor and multi-tenant access scenarios where durability, extended temperature range, and integrated video verification reduce installation complexity and ongoing maintenance cost. Skip it if your facility requires embedded analytics or indoor-only operation where smaller, cheaper alternatives are sufficient.
