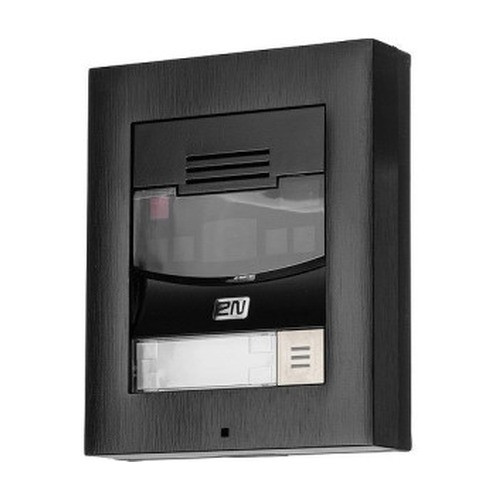

2N 01302-001 IP Solo Surface Mount Intercom
The 2N 01302-001 is a compact surface-mounted IP intercom designed for entrance control and visitor communication in residential and commercial settings. Built as a straightforward access point with minimal complexity, the unit combines a fixed HD camera for visitor identification with a single programmable button and IP-based audio communication. Its black metal finish and weather-resistant construction make it suitable for outdoor doorway and gate installations where durability and remote visibility are priorities.
Key Features
- HD Camera for Visitor Identification: Fixed HD resolution delivers clear enough imagery to recognize and verify visitors before granting access. The camera is purpose-built for entrance scenarios, not pan-tilt-zoom surveillance, so plan accordingly if wide scene coverage or distant subject detail is required.
- Single Programmable Button: One button supports customizable triggers — door unlock, call routing, or smart device activation. Single-button design keeps the interface simple and reduces user confusion in high-traffic entrances.
- IP-Based Audio Communication: Remote smartphone connectivity enables two-way conversation with visitors from anywhere. This eliminates the need for indoor intercom handsets at the entry point and allows staff or residents to screen calls remotely before deciding to grant access.
- H.264 Video Compression: H.264 encoding balances file size and quality on modest bandwidth. For continuous recording across multiple units or properties, H.264 will consume roughly twice the storage compared to H.265 — a meaningful factor if you're recording 24/7 and storage is constrained.
- Surface Mount Form Factor: Mounts flush to exterior walls or frames without requiring in-wall cutting or conduit. Surface mounting simplifies retrofit installations and makes cable routing more visible (and easier to inspect and maintain).
- Weather-Resistant Construction: Durable metal housing and sealed connectors withstand direct rain, dust, and temperature extremes typical of outdoor entry points. However, verify the exact IP/IK rating against your climate and mounting location — if submersion or high-impact vandalism is a concern, confirm that this model meets those thresholds.
- Integration Ready: As an ONVIF-compatible device, the 01302-001 integrates with standard IP-based access control systems, NVRs, and video management platforms that support ONVIF protocol. This avoids proprietary lock-in and allows flexible ecosystem choices.
Integration & Compatibility
The 2N 01302-001 is designed to pair with access control systems and video management platforms that support ONVIF standards. Because it communicates over IP, it connects to your network via standard Ethernet — either PoE-powered (if your switch supports it) or via a separate power adapter. Before deployment, confirm that your NVR, door controller, or intercom server supports ONVIF Profile T (which covers streaming) and any custom button-press logic you intend to program.
Audio quality and network robustness depend on your LAN stability and bandwidth. If the unit will operate over Wi-Fi or a congested network segment, test call quality and latency under load conditions. Firmware updates and integration support typically flow through the 2N ecosystem; check with your integrator or the device manufacturer on update frequency and security patch availability.
When to Choose a Different Model
If you require motorized zoom, pan-tilt capability, or integrated thermal imaging for perimeter monitoring, the 01302-001's fixed HD lens and single-button design will not satisfy those needs — consider a higher-end intercom or a dedicated PTZ camera paired with a separate access control button.
If your installation demands higher resolution (4K or 5MP) for detailed facial recognition at distance, or if you need advanced analytics like people counting or loitering detection, evaluate 2N's surveillance camera lineup to see whether a standalone unit with deeper AI capabilities makes better economic sense.
For indoor-only, climate-controlled environments (e.g., office lobbies), less expensive weatherproof variants or even non-weatherproofed intercom endpoints may be sufficient and reduce cost.
Frequently Asked Questions
Q: What power options does the 2N 01302-001 support?
A: The 01302-001 supports PoE (Power over Ethernet) delivery, eliminating the need for a separate power cable if your network switch has available PoE budget. Power consumption is modest, so standard 802.3af PoE (up to 15.4W per port) is typically sufficient. If PoE is unavailable at your installation point, confirm with your integrator whether an alternative 12VDC power supply is available.
Q: Can I integrate the 01302-001 with my existing NVR or VMS?
A: Yes, provided your NVR or VMS supports ONVIF streaming protocol. Most modern IP-based systems (Milestone, Axis Camera Station, Hikvision, and others) support ONVIF. Check the compatibility list with your system integrator before purchase to avoid integration surprises.
Q: What is the camera resolution and field of view?
A: The 01302-001 includes an HD-resolution fixed camera. Exact megapixel count and horizontal field of view should be confirmed in the datasheet or with your integrator. The fixed lens means you cannot adjust zoom or pan after installation, so plan the mounting height and angle carefully during site survey.
Q: Is the 01302-001 suitable for outdoor use in freezing temperatures?
A: The unit is rated for weather-resistant outdoor duty. Operating temperature range is typically -10°C to 50°C (14°F to 122°F) or similar; verify the exact spec with the manufacturer. In extreme cold, network latency may increase and battery-backed systems may underperform, so test thoroughly if deployment is in a harsh climate zone.
Q: Can the single button be programmed for multiple actions?
A: Yes. The button is programmable and can trigger actions such as door unlock, call routing to a specific extension, or smart home device activation. Configuration is typically done through the device's web interface or integrator console. Ensure your access control system or intercom server supports the button logic you intend before commissioning.
Q: What is the warranty on the 2N 01302-001?
A: Warranty terms vary by region and channel. Contact your integrator or specialty distributor for specific warranty duration, coverage, and support terms for this model.
Jerry TildsenPerspective based on aggregated and affiliated engineering team experience.
The 2N 01302-001 is a no-frills, fixed-lens intercom endpoint — think of it as the straightforward alternative to fancier models with pan-tilt or multi-button arrays. HD resolution and H.264 compression keep bandwidth modest and storage reasonable for 24/7 recording in small-to-medium deployments. The single programmable button and weather-resistant construction make it a solid fit for controlled-access scenarios where simplicity and durability matter more than feature density.
Technical Highlights:
- H.264 Compression: Reduces file size compared to uncompressed or MJPEG streams, but expect roughly 2x the storage footprint of an H.265 device. Plan your NVR retention accordingly if recording multiple units continuously.
- PoE Power Delivery: Draws modest current, typically under the 15.4W ceiling of 802.3af, so you won't overload standard switch ports. No separate power cable or external supply required in most deployments — cable management and installation time both improve.
- ONVIF Compatibility: Opens integration to any ONVIF-compliant VMS or access control platform. Avoids vendor lock-in, but verify that your target system explicitly supports ONVIF Profile T and any custom button-press actions you intend to program before finalizing equipment selection.
Deployment Considerations:
- Fixed HD lens means you must site the unit carefully during survey — wide-angle mounting at eye level typically works well for facial recognition, but narrow corridors or high-mounting locations will compress the scene. No zoom or adjustment after installation, so get the angle right the first time.
- Weather resistance is solid for covered overhangs and direct rain, but if your site experiences severe wind-driven moisture, salt spray, or extended submersion, confirm IP and IK ratings match your environment. Temperature extremes also affect video quality and network latency — test in worst-case conditions if your climate is harsh.
- Single button keeps the interface bulletproof for public-facing installations, but if you need multiple independent triggers (e.g., separate unlock and emergency call), you may require a companion device or a different intercom model.
The 01302-001 works best in apartment complexes, office lobbies, retail entry points, and small commercial gateways where a reliable, simple intercom endpoint is more valuable than multi-function capability. Pair it with a modern access control server or NVR that handles the call routing, unlock logic, and recording — the intercom does the sensing and communication, not the decision-making.
