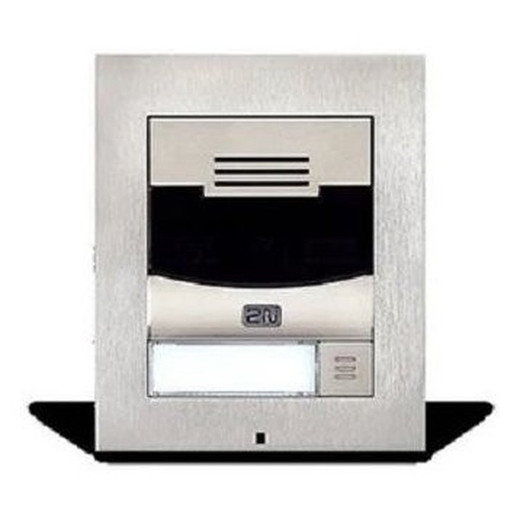

2N 01301-001 IP Solo Surface Mount Nickel Video Intercom
Overview
The 2N 01301-001 is a compact, surface-mounted IP video intercom designed for access control and visitor management at building entry points. This device replaces traditional analog intercoms with native Ethernet connectivity, eliminating the need for separate analog wiring and enabling remote management across your IP infrastructure. The 2MP resolution delivers sufficient detail for visitor identification in daylight and low-light conditions, while integrated infrared illumination handles nighttime operation without external lighting.
This is a purpose-built intercom, not a repurposed camera—the form factor, button layout, and network profile are optimized for entry communication rather than surveillance. If you're integrating access control systems across multiple buildings or need to manage visitor queues from a central office, the IP-native design fits cleanly into existing IP camera infrastructure and eliminates protocol translation headaches.
Key Features
- 2MP HD Video (1920 x 1080): Sufficient resolution for clear facial recognition and visitor verification at typical entry-door distances. Not oversized for the application—meaningful savings on bandwidth and storage compared to 4MP or higher, especially when deployed across dozens of entry points.
- Infrared Night Vision with IR Illumination: Built-in 850nm infrared ensures reliable identification during evening and night shifts without requiring external floodlights. No moonlight dependency—the device illuminates its own scene out to effective range, reducing nighttime blind spots at unstaffed entry gates.
- IP-Based Connectivity (Ethernet & Wi-Fi): Native IP eliminates analog wiring runs and simplifies integration with modern access control platforms. Wi-Fi option reduces installation labor in retrofit scenarios where running Ethernet is impractical; Ethernet remains the preferred path for 24/7 reliability and redundancy.
- PoE Power Supply (802.3af): Single Ethernet cable delivers both data and power—no separate 12VDC supply or AC outlet needed at the door. Typical draw sits well within standard PoE budgets (under 15W), so a modest PoE switch handles multiple units without branch-circuit upgrades.
- Surface Mount Nickel Finish: Compact wall-mounted housing in brushed nickel; a black variant is available. Small footprint suits tight entry vestibules and doesn't dominate the wall aesthetic. Nickel resists corrosion better than bare aluminum in high-humidity or salt-spray environments (though not rated for full outdoor weather—verify IP rating for your climate).
- Single-Button Call Initiation: Simplified interface—visitors press one button to call reception or a specific desk. No numeric keypad or menu navigation; low cognitive load for non-technical users reduces support calls and call-attempt failures.
- Home Automation & Access Control Integration: Compatible with major smart home and access control platforms (exact integration support varies by platform—verify your VMS or access control vendor's ONVIF compliance before purchase). API-level compatibility with Milestone, Genetec, and other enterprise systems depends on firmware version and add-ons.
Deployment Scenarios
This model fits best in multi-tenant buildings, residential communities, secure office lobbies, and warehouse entry gates where a receptionist or security desk monitors visitor requests. The 2MP resolution and PoE simplicity make it cost-effective for 10–50 unit deployments. In larger campus or enterprise networks, consider how the 01301-001 integrates with your network video recorder (NVR) or PoE switch infrastructure—ensure your PoE switch has sufficient budget and that your VMS supports ONVIF discovery for zero-touch provisioning.
When to Choose a Different Model
If you need integrated door-strike control, keypad entry, or RFID card reading at the same point, look for a 2N IP Solo variant that includes those modules (available as plug-in accessories). If your building operates in direct sunlight and requires extreme backlighting performance, a higher-end 2N model with advanced wide dynamic range (WDR) may reduce blown-out skies. For applications requiring video storage on the intercom itself (edge recording), confirm that the 01301-001 supports microSD expansion—not all 2N intercom models include this feature.
Integration & Compatibility
The 01301-001 connects to any standard managed or unmanaged PoE switch. Ensure that your network segment supports multicast for SIP-based calling (if applicable) and that your access control platform or VMS can consume ONVIF Profile S video streams. Firmware updates are firmware are managed via web interface or API; coordinate with your systems integrator on update windows to avoid call-button downtime. Two-way audio flows over SIP or proprietary 2N protocol—audio codec support (G.711, G.726) is transparent to deployment; no special audio licensing required.
Frequently Asked Questions
Q: Can the 01301-001 be powered from a standard PoE (802.3af) switch?
A: Yes. The 01301-001 draws under 15W maximum, well within 802.3af's 15.4W budget. No PoE+ (802.3at) switch required.
Q: Does the 2N 01301-001 require a separate doorbell button, or is it self-contained?
A: The 01301-001 includes a single integrated call button—no separate doorbell required. Visitors press the button to initiate the call.
Q: What night vision range does the IR have?
A: The integrated infrared illumination is optimized for typical entryway distances (roughly 3–6 meters). Exact range depends on reflective surfaces and door overhang; verify on-site after installation if the entry is deeply shadowed.
Q: Can the 01301-001 work over Wi-Fi only, without Ethernet?
A: Yes, Wi-Fi is supported, but Ethernet is strongly recommended for 24/7 reliability. Wi-Fi is best for temporary installations or retrofit scenarios where running cable is impractical.
Q: Is the 01301-001 compatible with Milestone XProtect or Genetec?
A: Integration depends on ONVIF support in your VMS version. Verify with your VMS vendor that they recognize ONVIF Profile S video streams and SIP audio before committing to a large deployment.
Q: What finish options are available?
A: The 01301-001 comes in brushed nickel (this model). A black variant is available under a different model number; check compatibility with your access control platform if aesthetics are critical.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 2N 01301-001 is a practical intercom, not a surveillance camera with a doorbell button tacked on. That distinction matters. The 2MP resolution is sufficient for the job—you're identifying a visitor at 1–2 meters, not reading a license plate at 30 meters. The PoE power model keeps installation costs down and eliminates the AC outlet hunt at the entry. What you need to verify before you deploy 20 units across your campus is whether your access control platform (or VMS, if you're logging video) can actually speak ONVIF to the 01301-001. Plenty of integrators discover too late that their panel's 2015-vintage firmware doesn't do ONVIF discovery, and now they're patching everything or finding a workaround.
Technical Highlights:
- 2MP HD Resolution (1920 x 1080): Lean on bandwidth. A typical 30 fps H.264 stream at 2MP runs roughly 1–2 Mbps depending on motion complexity. Scale to 50 intercoms and you're looking at 50–100 Mbps of aggregate recording bandwidth—manageable on a single gigabit pipe. Upgrade to 4MP and you're doubling the storage footprint and network overhead with minimal return on investment for a stationary entry-door camera.
- IR Illumination (850nm): No external floodlight means no light pollution complaints from neighbors and no maintenance. The 850nm spectrum is invisible to the human eye, so visitors don't see a glare cone. Effective range is roughly 3–6 meters depending on reflectivity—acceptable for typical entry vestibules, but verify in your specific doorway because deep overhangs can kill the IR reach.
- PoE (802.3af) Power Draw: Under 15W keeps your PoE switch's power budget clean. A 48-port managed switch with 240W PoE budget can handle 16 of these units without breaking a sweat—real-world deployment math, not marketing spec.
Deployment Considerations:
- ONVIF compliance is non-negotiable. Before you order, ask your access control integrator or VMS vendor: 'Does your platform auto-discover ONVIF Profile S devices, and do you have example code or documentation for integrating a 2N IP Solo?' If the answer is vague or requires a third-party gateway, budget extra time and money for integration.
- Wi-Fi is tempting on retrofit jobs, but it's a liability in production. If your Wi-Fi network fails, the intercom becomes a silent brick. Ethernet over a PoE injector or a short switch run is always the right call for life-safety equipment, even if the install takes an extra day.
- The single call button means all visitors reach the same destination—typically a receptionist or security desk. If you need to route calls to different departments or tenants, you'll need a smart call-routing box or a VMS that supports conditional call logic. Check that your platform supports it before committing.
The 01301-001 fits best in small-to-medium multi-tenant buildings, apartment complexes, and secure office lobbies where a single entry point feeds into a staffed desk or reception area. It's not the right choice for large campuses with distributed call-routing or for facilities that need integrated access-control hardware (door-strike, keypad, card reader) at the same face plate.
