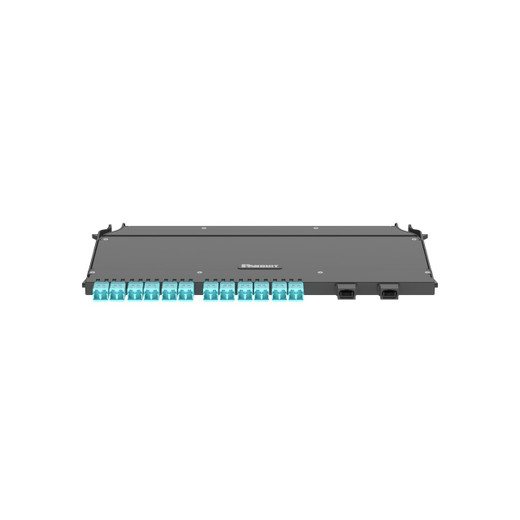

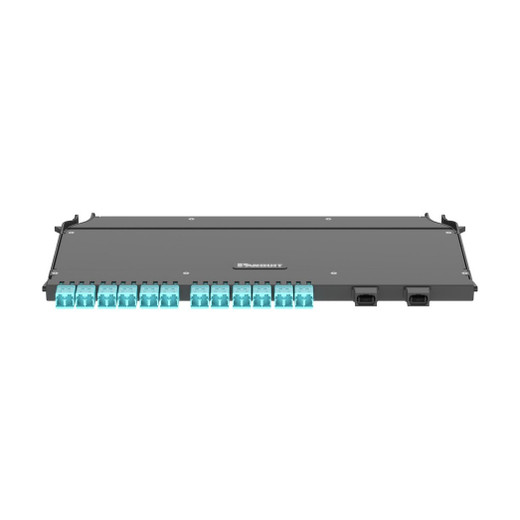

Panduit FDCZO-24-10ASRH Cassette for Fiber Optic Systems

Overview

The Panduit FDCZO-24-10ASRH is a 24-fiber, OM4 multimode front-access cassette designed for FlexCore ODF/OSF applications. It terminates LC Duplex connections on the front with dual MPO-12 male connectors on the rear, facilitating high-density fiber management in structured cabling systems. This cassette is engineered for optimized insertion loss, ensuring signal integrity for demanding data center and enterprise network backbones. Its polycarbonate construction provides durability.

Compatibility

This cassette is specifically designed for use within the Panduit FlexCore ODF (Optical Distribution Frame) and OSF (Optical Sử dụng Frame) systems. It is not compatible with other brands' fiber enclosures or patch panels. The internal termination method uses Method A, right-angled polarity, which must match the MPO trunk cables used.

Installation Notes

The cassette features a low-profile design with an overall height of 0.46 inches (11.7 mm) and a width of 11.53 inches (292.8 mm). Ensure the MPO trunk cables used for connection are also Method A, right-angled polarity to maintain proper fiber channel mapping. The polycarbonate material offers good resistance to typical installation handling.

Standards

This product complies with ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5 (FOCIS-5), and TIA-604-10 (FOCIS-10) standards. It is also RoHS 2002/95/CE compliant and compatible with IEEE 802.3ae and ANSI T11.2 (Fiber Channel) specifications, ensuring interoperability and adherence to industry best practices for optical networking.

Expert Analysis
Specifications
Sub Brand: FlexCore™
Application: FlexCore ODF/OSF
Color: Noir
Connector 1: LC Duplex
Connector 2: MPO-12 Male
Fiber Type: OM4
Material: Polycarbonate
Fiber Count: 24
Height In: 0.46
Height Mm: 11.7
Width In: 11.53
Width Mm: 292.8
Product Type: Cassette pour fibre
Carton Qty: 10
Package Qty: 1
Standards: Conforme ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5, (FOCIS-5), TIA-604-10 (FOCIS-10), RoHS 2002/95/CE ; compatible IEEE802.3 e AtNSI T11.2 (Fiber Channel)
Upc: 61305683284
Cable Category: fiber-optic-systems
Type: Cassette pour fibre
Q&A
Reviews
Product Video
Have Questions?

Panduit FDCZO-24-10ASRH Cassette for Fiber Optic Systems

$1,537.72
$906.99
Add to Cart
