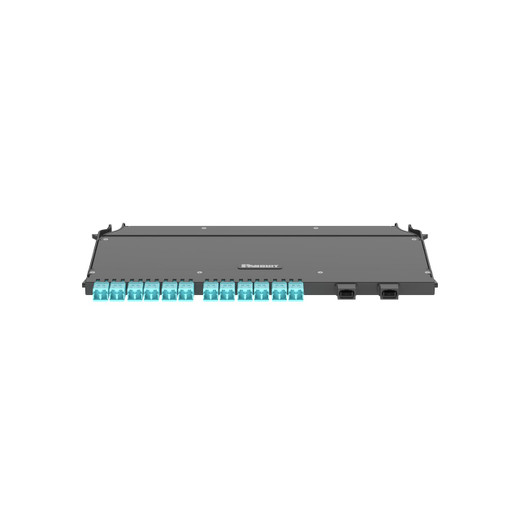

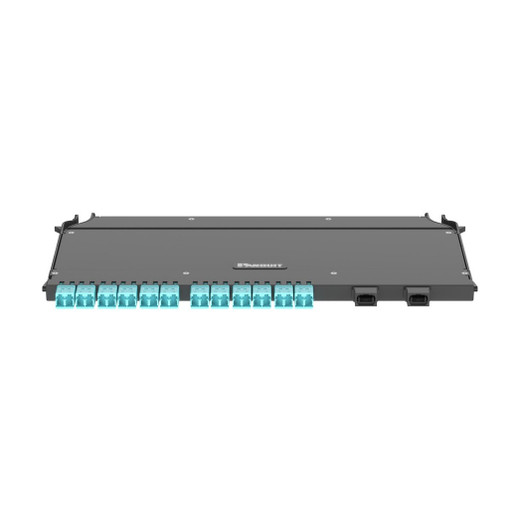

The Panduit FDCZA-24-10ASRH is a front-access fiber optic cassette engineered for high-density datacenter and enterprise network deployments where rack space is at a premium and polarity management is critical. This FlexCore™ ODF/OSF cassette converts a pair of 12-fiber MPO-12 trunk cables into twelve LC duplex connections, delivering 24 fibers of OM4 multimode capacity in a compact 1U-height module. Designed for Method A polarity with right-hand orientation, it solves the recurring install challenge of maintaining proper transmit/receive paths when transitioning from MTP backbone trunks to individual LC patch cords—eliminating the guesswork and mis-patches that plague ad-hoc fiber terminations in dense rack environments.
This cassette is purpose-built for the realities of modern datacenter fiber distribution: you're running pre-terminated MTP trunks between floors or between buildings to save installation time, but your switches and storage arrays still use LC duplex optics. The FDCZA-24-10ASRH sits inside a FlexCore ODF or OSF enclosure at the aggregation point, providing the structured breakout from MPO backbone to LC duplex without requiring field splicing or fusion work. The Method A polarity scheme is key here—it's the TIA-568 standard method where Fiber 1 on the MPO array maps to Position A on LC Duplex 1, and Fiber 2 maps to Position B. This wiring convention ensures that when you patch from one cassette to another (or to a switch) with a standard LC-LC duplex patch cord, the transmit port on one end always connects to the receive port on the other. The right-hand orientation means the internal fiber routing exits the cassette toward the right side of the ODF enclosure, which matters when you're planning cable management arms and strain relief in a fully populated rack. Getting polarity wrong on a 24-fiber cassette means 12 dead links and an hour of troubleshooting; getting it right means the patch lights up green on the first try.
The ultra-low insertion loss specification is more than a spec-sheet bullet point—it directly impacts your usable link budget on 40G and 100G multimode links. OM4 fiber is rated for 150 meters at 40GBASE-SR4 and 100 meters at 100GBASE-SR4 when operating at 850nm, but those distances assume a total channel loss budget that includes every connector, splice, and cassette in the path. If you're designing a three-tier datacenter network (edge-of-row switches feeding aggregation switches feeding core switches), you might have two cassette pass-throughs in a single link. A conventional cassette with 0.75dB insertion loss per connector means you've burned 3dB before you account for the fiber itself; the FDCZA-24-10ASRH's ultra-low IL keeps that budget margin intact, letting you hit the full 150-meter OM4 distance spec even with intermediate patch panels. This is especially critical in legacy buildings where you're retrofitting 40G/100G over existing OM4 cable plants and can't afford to re-pull fiber just to recover a few tenths of a decibel.
The FlexCore front-access design solves a serviceability problem that's plagued rear-access fiber panels for years: when your racks have rear-door containment, rear-door heat exchangers, or back-to-back row layouts, reaching around to the back of an ODF to swap a patch cord means fighting with cable management arms, power strips, and airflow baffles. Front-access cassettes put the LC ports on the front face of the ODF enclosure, where you can see them, label them, and patch them without pulling the rack out of the row. The MPO trunk connections on the rear of the cassette stay undisturbed once installed—those are your semi-permanent backbone runs—while all the day-to-day move/add/change work happens from the front with LC duplex cords. In a high-churn environment (multi-tenant colocation, dev/test labs, or managed hosting), this access pattern cuts service-call time in half and eliminates the need to schedule maintenance windows just to access the back of the rack.
Installation fits the standard FlexCore workflow: mount the ODF enclosure in your rack, slide the cassette into an open slot until it clicks into the guide rails, connect your pre-terminated MPO-12 trunk cables to the rear of the cassette (keyed connectors ensure correct orientation), then dress the LC duplex patch cords from the front ports to your switches or patch panel. The 292.8mm width matches Panduit's standard FlexCore chassis width, so a fully populated 1U ODF can hold multiple cassettes side-by-side for hundreds of fibers in a single rack unit. The polycarbonate housing is non-conductive and won't corrode in the presence of airborne contaminants (important in industrial datacenter environments where particulate and humidity are higher than ASHRAE recommendations), and the material's impact resistance means the cassette survives the inevitable bump during rack integration without cracking adapter housings or breaking fiber-retention clips.
Standards compliance covers every layer of the fiber stack: ISO/IEC 11801 and ANSI/TIA-568-C.3 ensure the cassette meets structured cabling requirements for commercial buildings, TIA-604-5 (FOCIS-5) governs the LC connector physical interface and optical performance, and TIA-604-10 (FOCIS-10) covers the MPO-12 connector geometry and insertion loss limits. IEEE 802.3 compliance means the cassette supports Ethernet over fiber from 1GBASE-SX through 100GBASE-SR4, and ANSI T11.2 Fibre Channel compliance extends that support to 2GFC through 32GFC storage networks. This broad standards coverage matters when you're building converged infrastructure that carries SAN, LAN, and backup traffic over the same physical fiber plant—the cassette won't be the bottleneck or the non-compliant element that breaks storage fabric certification.
This cassette is the right tool for the specific job of Method-A right-hand OM4 breakout in FlexCore ODF environments. If your datacenter has standardized on Panduit FlexCore enclosures and you're running OM4 between floors with MPO-12 trunks, the FDCZA-24-10ASRH is the direct-fit component that maintains polarity consistency, preserves link budget, and keeps patching accessible from the front of the rack. The 10-pack carton quantity is sized for multi-rack deployments—one carton can outfit a full row of edge-of-row switches or populate an entire aggregation layer ODF—and the per-cassette pricing at this density makes it cost-competitive with field-terminated alternatives once you account for labor, fusion-splice consumables, and OTDR test time. For installations where Method A polarity, right-hand routing, and front-access serviceability align with your design standards, this cassette delivers predictable first-time-right fiber connections at datacenter scale.
