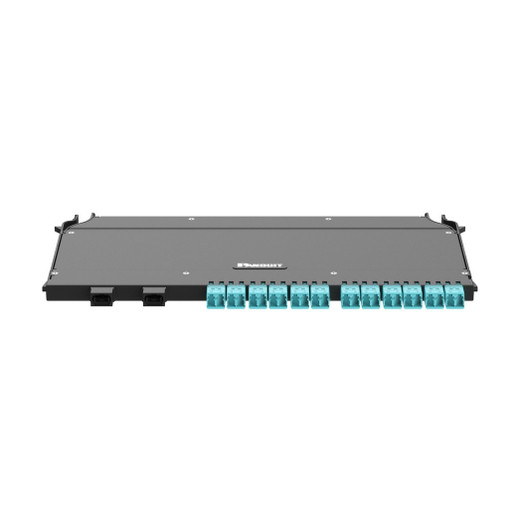

High-density fiber deployments demand precise polarity management and minimal insertion loss. The Panduit FDCZO-24-10ASLH FlexCore cassette delivers both: 24 OM4 multimode fibers in a front-access cartridge that breaks out dual MPO-12 trunk connectors to twelve LC duplex ports using Method A polarity. Purpose-built for FlexCore ODF and OSF enclosures, this left-orientation module lets you scale 10G/40G/100G links in datacenter spine-leaf fabrics, campus fiber backbones, and AV distribution networks where structured cabling meets active equipment—without the field-termination risk or insertion-loss variability of ad-hoc patch strategies.
The cassette's Method A polarity scheme uses a straight-through MPO trunk pinout where fiber 1 on the transmit side maps to fiber 1 on the receive side when both connectors are key-up. This is the ANSI/TIA-568-C.0 Annex B standard for parallel optics: your 40GBASE-SR4 QSFP+ transceiver's MPO transmit array (fibers 1-4) connects to the cassette's first MPO-12 input, which fans out to LC ports 1-4 on the panel. The receive path follows the inverse—LC ports 5-8 aggregate back through the second MPO-12 to the transceiver's receive array (fibers 5-8). No polarity flips, no crossover trunks, no field errors. Every LC port is pre-labeled for its position in the 24-fiber map, and the cassette's internal ribbon maintains the fiber sequence from MPO pin 1 through LC position 12 on both trunks. When you're scaling 10G links via breakout or provisioning 40G/100G parallel optics, this structured approach eliminates the troubleshooting spiral of mismatched polarity that kills insertion budgets and burns deployment hours. Factory termination guarantees every connector meets TIA-604-5 (FOCIS-5) endface geometry and TIA-604-10 (FOCIS-10) MPO mechanical specs—insertion loss is optimized and consistent across all 24 fibers, not field-variable.
FlexCore ODF enclosures centralize fiber breakout in front-access 1U or 2U panels where cassettes slide into horizontal slots. This FDCZO-24-10ASLH variant is left-oriented: the MPO trunk cables exit the cassette's left side, routing toward the chassis's left-mounted trunk entry grommet. If your FlexCore panel has trunk ingress on the left (common in side-by-side dual-bay ODF racks), this orientation keeps bend radius clean and avoids crossing trunk cables over adjacent cassettes. The LC ports face forward, flush with the panel faceplate, so all patching happens from the front of the rack—techs pull patch cords without reaching behind the ODF or disturbing trunk infrastructure. In spine-leaf datacenter topologies, you typically run MPO trunk cables vertically from top-of-rack switches down to FlexCore breakout panels mid-rack, then patch horizontally via LC duplex to server NICs or storage arrays. The front-access cassette design isolates the permanent MPO backbone (installed once, rarely touched) from the active LC patch layer (changed frequently as workloads migrate). When you add a new 10G link, you patch a duplex LC cord from the cassette to the endpoint—no trunk re-termination, no insertion loss recalculation. That separation is why FlexCore cassettes dominate hyperscale and colocation builds where mean time to provision a new link is a KPI.
The OM4 fiber specification supports 10GBASE-SR to 400 meters, 40GBASE-SR4 to 150 meters, and 100GBASE-SR10 to 100 meters over 50 µm multimode cores at 850 nm wavelength. This cassette's optimized insertion loss—factory-terminated MPO and LC connectors held to tight tolerances—preserves your link budget when you're chaining multiple cassettes or running near the distance limit. ISO/IEC 11801 and ANSI/TIA-568-C.3 compliance means it fits structured cabling specifications for commercial buildings and datacenters, and IEEE 802.3 alignment guarantees interoperability with Ethernet standards from 1G through 100G. ANSI T11.2 Fiber Channel certification extends compatibility to 8G/16G/32G FC storage fabrics—SAN architects use the same cassette infrastructure for both Ethernet and Fiber Channel links, avoiding parallel cabling plants. RoHS 2002/95/EC compliance removes lead and hazardous substances, meeting EU and California environmental mandates for equipment disposal. When you're designing a 40G spine or a 100G uplink migration path, this cassette gives you the polarity structure, insertion loss margin, and standards compliance to execute the build once and scale it predictably as bandwidth demand grows.
