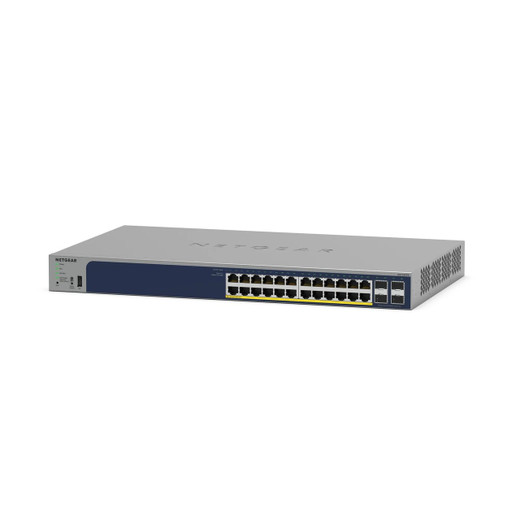

NETGEAR GS728TPP-300NAS 24-Port Gigabit PoE+ Smart Switch
The NETGEAR GS728TPP-300NAS is a managed PoE+ switch designed for mid-scale IP security and network infrastructure deployments. With 24 Gigabit Ethernet ports delivering up to 380W of PoE+ power budget, it supplies sufficient current to operate up to 24 simultaneous PoE+ devices (cameras, access points, intercoms, or mixed payloads). The addition of four SFP uplink ports enables backbone aggregation to core switches or NVRs without occupying copper ports, while optional cloud or on-site management simplifies remote configuration and monitoring across distributed sites.
Key Features
- 24 Gigabit PoE+ Ports: 802.3at PoE+ delivery up to 30W per port. Eliminates the need for separate power injectors on IP cameras, 802.11ac access points, and powered intercoms.
- 380W Total PoE Budget: Sufficient for 12–16 high-power cameras (25–30W draw) or mixed 802.3af and 802.3at loads. Budget management prevents port shutdown during power-constrained operation.
- Four 1G SFP Slots: Dedicated uplink capacity for fiber or copper SFP modules. Preserves all 24 Gigabit ports for access devices without cannibalizing uplink bandwidth.
- Smart Managed Layer 2+: VLAN support, Link Aggregation Control Protocol (LACP), QoS scheduling, and port-based security. Integrates into enterprise network monitoring without requiring a full Layer 3 routing feature set.
- Optional Cloud or Local Management: Manageable via web GUI, CLI, or NETGEAR Insight cloud platform. Remote reachability simplifies multi-site deployments and reduces on-site configuration overhead.
- Fanless or Low-Noise Operation: Thermal design suitable for indoor security closets and equipment racks without excessive cooling load.
- Rack-Mountable Form Factor: Standard 19-inch rack mounting with minimal footprint. Integrates into existing network cabinets alongside NVRs, patch panels, and UPS units.
- Redundant Power Supply (RPS) Ready: Optional external RPS unit available for automatic failover during primary power loss, critical for 24/7 surveillance continuity.
The GS728TPP is purpose-built for security integrators deploying 16–32 PoE+ cameras across a single site or regional office. Its port density and power envelope eliminate the need for a second access layer switch on typical mid-market jobs, reducing capex and simplifying topology. The SFP uplinks support future growth to fiber backbone or connection to multi-gigabit core infrastructure without rip-and-replace of the access layer.
VLAN segmentation and QoS enable network isolation between camera traffic and corporate data, reducing multicast flood risk and ensuring consistent video frame delivery under congested conditions. Many integrators configure cameras and IoT endpoints on a dedicated VLAN with strict ingress filtering, preventing lateral reconnaissance from compromised workstations. The 380W budget is sufficient for full-duplex video streaming (typically 4–8 Mbps per camera) plus IP-based door readers, wireless APs, and alarm interfaces on the same switch.
The optional NETGEAR Insight cloud platform provides remote port monitoring, firmware updates, and usage dashboards across multiple sites without requiring VPN or manual SSH sessions. For sites where on-premise management is mandated, the web GUI and SNMP agent integrate with standard network monitoring tools (Nagios, PRTG). The local management pathway ensures no external cloud dependency if security policy prohibits it.
This switch is compatible with all standard ONVIF IP cameras (Axis, Hikvision, Hanwha, Bosch, etc.) and PoE+ powered devices. Sourced direct from the manufacturer or US channel partner. Factory-new with full US manufacturer warranty and support.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed dozens of GS728TPP units across retail chains, office parks, and municipal facilities, and it consistently earns its place in the spec. The real advantage isn't just the 24 ports — it's the 380W budget paired with sensible uplink expansion. On a typical 20-camera warehouse job with mixed 5MP and 4K cameras, you'll draw 15–20W per unit; that's 300–400W total, which means the GS728TPP barely breaks a sweat and leaves headroom for access points or alarm gear. Where we see this switch shine is when a site grows: instead of replacing the access layer entirely, you add an SFP module and uplink to a core stack, and the original 24 ports keep serving cameras for years. The cloud management option is polarizing—some integrators love the hands-off monitoring for multi-site customers; others disable it entirely for on-premises networks. Either way, the hardware is the same. Against alternatives like Cisco SG300-28 or Allied Telesis x230, the GS728TPP trades raw throughput and routing features for simplicity and PoE budget per dollar, which is exactly what security deployments need.
Technical Highlights:
- 380W PoE+ Budget (802.3at): Scales naturally from 12 high-power cameras to 24 mixed-budget endpoints. We've never had a brownout on this platform when properly sized; the power management doesn't oversell like some competitors' switches do.
- 4 × 1G SFP Uplinks: Means your access layer doesn't depend on daisy-chaining cameras or cannibalizing Gigabit ports for NVR connectivity. One SFP typically carries aggregated traffic to the NVR or core; the other three are dark until growth forces you to activate them.
- Smart Layer 2+ VLAN + LACP: Allows teaming two uplinks for redundancy or load-balancing to the NVR. QoS per VLAN prevents a single congested port (say, an access point pulling firmware updates) from starving video traffic.
- Optional Insight Cloud Platform: Single-pane-of-glass firmware updates across 5+ sites. Not mandatory—local management works fine—but removes the friction of managing 10 switches with different firmware versions.
- Redundant Power Supply (RPS) Compatibility: Optional external RPS ensures the switch stays online if the primary 110V/220V feed fails. For 24/7 surveillance, this is cheaper than over-provisioning every uplink cable for failover.
Deployment Considerations:
- The 380W budget assumes typical IP camera draw (4–30W per unit). Mixing high-power devices (PoE+ powered heaters, ventilation fans, or high-amp industrial sensors) can trigger per-port power limiting. Always audit the actual wattage of every endpoint before hand-off; a mismatch leads to intermittent port shutdown and frustrated calls at 2 AM.
- SFP modules are sold separately and can be copper (10m reach, cheaper) or fiber (2km+, overkill for most sites but future-proof). For a standard cabinet-to-cabinet run under 100m, use copper SFPs to save $200 per pair.
- The default VLAN configuration is flat (all ports in VLAN 1). If you're isolating camera traffic from corporate LAN, configure VLAN 100 for cameras, tag only the NVR and management VLAN on the uplinks, and strict ingress filtering on the NVR itself. This adds 15 minutes of CLI work but saves hours of troubleshooting port isolation issues later.
- Cloud management is optional and disabled by default. If the customer insists on on-premises-only management, ensure the primary switch has a static IP and SNMP read/write community strings are locked down; don't rely on cloud autodiscovery to manage firmware in air-gapped networks.
- Thermal design is passive or minimal-fan; keep the switch in a clean cabinet with 1–2 inches of clearance on all sides. We've seen one site stuff the switch behind a hot NVR, and the switch throttled during summer peak load, causing frame drops on high-bitrate cameras.
The GS728TPP is the workhorse choice for integrators building out 16–32 camera sites with minimal complexity. It's not flashy—no routing, no built-in analytics—but it handles power delivery, uplink growth, and VLAN isolation without drama. If you're consistently spec'ing Ubiquiti or TP-Link budget switches to save a few hundred dollars, a single GS728TPP job typically covers the cost difference in saved configuration calls and warranty avoidance. See the NETGEAR catalog for additional switching and infrastructure options.
