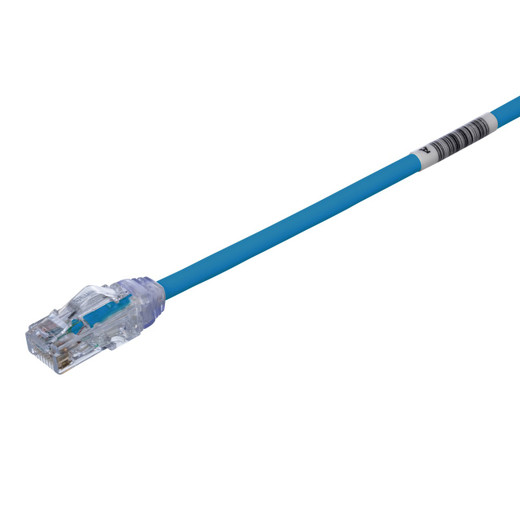

Panduit UTP28X20BU 10G 28AWG 20ft Patch Cord
Panduit UTP28X20BU 10G 28AWG 20ft Patch Cord
UTP28X20BU
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Panduit UTP28X20BU 10G 28AWG 20ft Patch Cord

Overview

The Panduit UTP28X20BU is a 20-foot Cat 6A unshielded twisted pair (U/UTP) patch cord designed for high-speed networking applications. Its 28 AWG solid copper construction and compact 0.185-inch diameter simplify cable management in dense environments like data centers, enabling reliable 10GBASE-T Ethernet connectivity. The integral pair manager and patented tangle-free latch streamline installation and maintenance, reducing deployment time.

Compatibility

This patch cord exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards, ensuring compatibility with all 10GBASE-T Ethernet networks operating up to 500 MHz. It is wired to T568A/T568B standards, making it compatible with virtually any network device. The cord supports IEEE 802.3af/at/bt (PoE++) up to 90W, suitable for powering network devices like IP cameras or wireless access points.

Installation Notes

The cable features a CM/LSZH (Communications Multipurpose/Low Smoke Zero Halogen) flammability rating, suitable for use in air-handling spaces. The integrated RapidID barcoding facilitates easy port mapping with compatible scanning software, accelerating network audits and troubleshooting. The centered de-embedded plug design ensures a secure connection without excessive strain on the RJ45 connector.

Expert Analysis
Specifications
Product Type: Cat 6A Patch Cord
Length: 20 ft (6.1 m)
Conductor Gauge: 28 AWG
Conductor Type: Solid Copper
Cable Construction: U/UTP (Unshielded Twisted Pair)
Color: Blue
Diameter: 0.185 in (4.7 mm)
Connector 1: RJ45 Modular Plug
Connector 2: RJ45 Modular Plug
Wiring Scheme: T568A/T568B Compatible
Performance Standard: Exceeds ANSI/TIA-568.2-D Cat 6A, ISO 11801 Class EA
Bandwidth: 1–500 MHz
PoE Support: IEEE 802.3af/at/bt (Type 3 & Type 4, up to 90W)
Flammability Rating: CM/LSZH
Special Features: RapidID Barcoding, Tangle-Free Latch, Centered De-Embedded Plug, Integral Pair Manager
Testing: 100% Factory Tested (Wire Map, NEXT, Return Loss)
Package Quantity: 1 Cord
Carton Quantity: 10 Cords
Standards Compliance: UL 1863, IEC 60603-7, ANSI/TIA-1096-A, RoHS Compliant
UPC: 07498321902
Type: Patch Cord
Connectivity: Cat 6A
Poe Power: PoE++ (802.3bt)
Sub Brand: Pan-Net®
Application: (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing.
Length Ft: 20
Length M: 6.1
Carton Qty: 10
Package Qty: 1
Cable Category: copper-systems
