Panduit UTP28X5YL 10G 28AWG 5ft Yellow Patch Cord

Overview

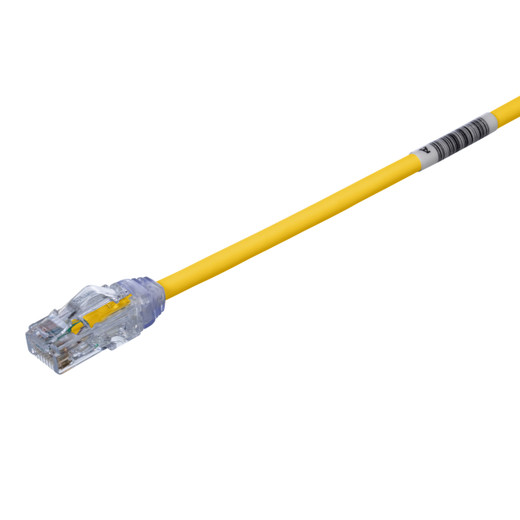

The Panduit UTP28X5YL is a 5-foot Cat 6A Unshielded Twisted Pair (UTP) patch cord designed for high-speed network infrastructure. Its 28 AWG solid copper conductors and Class EA performance support up to 10GBASE-T Ethernet over 100 meters, making it suitable for data center I/O consolidation, server virtualization, and backbone aggregation. The compact 0.185-inch diameter cable simplifies routing in dense environments, while the tangle-free latch ensures secure connections and easy management during moves, adds, and changes. This cord also supports IEEE 802.3bt Type 3 & 4 PoE applications, delivering up to 100W without requiring separate power delivery infrastructure.

Compatibility

This Cat 6A patch cord is engineered to meet or exceed ANSI/TIA-568.2-D Category 6A and ISO/IEC 11801 Class EA standards, ensuring compatibility with all standard T568A/B wired networking equipment. It supports 10GBASE-T Ethernet and is rated for 25GBASE-T up to 30 meters. Its 28 AWG solid copper construction is ideal for high-density patching in data centers and enterprise networks where performance and reliability are critical. It is also compliant with IEEE 802.3af/at/bt for Power over Ethernet delivery.

Installation Notes

The UTP28X5YL features a patented tangle-free latch that prevents snagging and allows for rapid release, streamlining installation and maintenance. The integrated pair manager and centered de-embedded plug design contribute to consistent performance. The cable is CM/LSZH rated for flammability compliance in various building codes. Each cord is 100% factory tested for wire map, NEXT, and return loss to ensure reliable performance out of the box.
