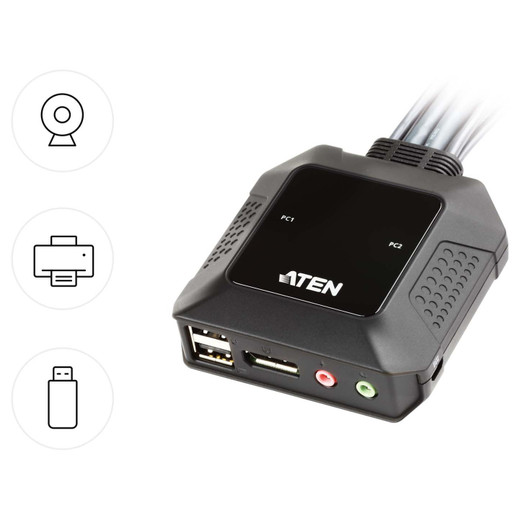

ATEN CS22DP 2-Port USB DisplayPort Cable KVM Switch

Overview

The ATEN CS22DP is a compact, 2-port USB DisplayPort KVM switch designed to consolidate control of two computers onto a single workstation. This unit allows you to switch between a primary workstation and a secondary device, such as a server or specialized computer, using a single set of DisplayPort video, USB keyboard, and USB mouse. The included remote port selector cable provides flexible placement of the switch, keeping your desk clutter-free. It's ideal for environments where you need to manage multiple systems efficiently without sacrificing screen real estate or user comfort. The CS22DP model supports high-resolution video output, ensuring clarity for detailed work.

Compatibility

This KVM switch is designed to work with any computer featuring a DisplayPort output and USB-A ports for keyboard and mouse. It supports standard USB HID (Human Interface Device) compliant keyboards and mice. The video switching capability is compatible with DisplayPort 1.2 interfaces. It can be used with various operating systems including Windows, macOS, and Linux distributions. The remote port selector is 1.8 meters long, offering flexibility in workstation setup.

Installation Notes

The CS22DP operates without requiring an external power adapter, drawing power directly from the connected computers via USB. However, an optional USB Micro-B power input is available for scenarios where computer USB ports cannot supply sufficient power. The device supports video resolutions up to 4096 x 2160 @ 60Hz, and also offers compatibility with lower resolutions such as 2560 x 1440 @ 144Hz for high-refresh-rate gaming or design applications. Operating humidity is rated between 0-80% RH, non-condensing.
