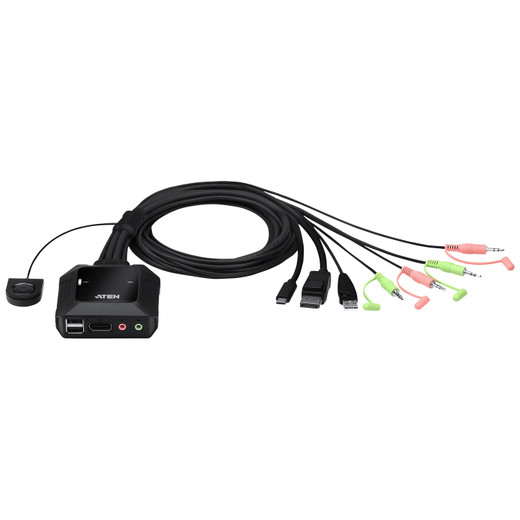

ATEN CS52DP 2-Port KVM Switch
Overview
The ATEN CS52DP is a 2-port USB-C and DisplayPort hybrid cable KVM switch designed for single users managing two computers. It allows seamless control of two systems from a single workstation, reducing desk clutter and improving workflow efficiency. This unit is suited for professional environments where dual-monitor setups are standard, such as editing suites, control rooms, or development workstations. The CS52DP model offers support for high-resolution video up to 4K@60Hz.
Compatibility
This KVM switch is designed to connect and control two computers independently. It utilizes USB-C and DisplayPort connections for video and data, making it compatible with modern laptops and desktops equipped with these ports. The included remote port selector allows for easy switching between the two connected computers without needing to access the main unit. It is suitable for use with standard operating systems that support USB and DisplayPort devices.
Installation Notes
The CS52DP supports video resolutions up to 4096 x 2160 @ 60Hz and 2560 x 1440 @ 144Hz, ensuring high-fidelity visuals for demanding applications. For power, it features an optional connection via a USB Micro-B port (1 x USB Micro Type B Female), which is recommended for optimal performance and stability, especially when driving high-resolution displays. The operating humidity range is 0-80% RH, non-condensing, suitable for most indoor office environments. The unit itself is designed for desktop use, with its connections consolidated for easy access.
