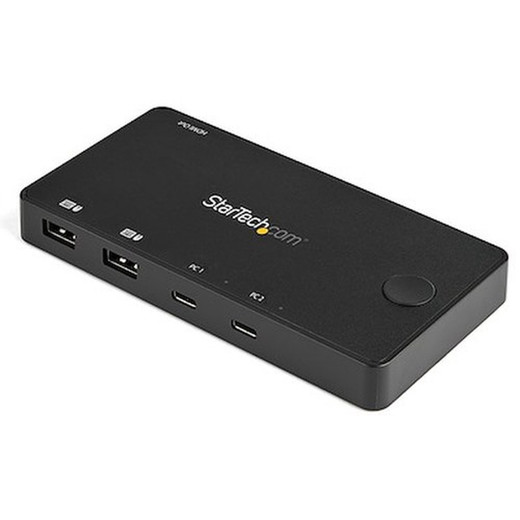

StarTech SV211HDUC 2-Port USB-C KVM Switch with 4K 60Hz HDMI 2.0

Overview

The StarTech SV211HDUC is a compact, bus-powered 2-port KVM switch built for professionals who run two USB-C computers off a single HDMI 2.0 monitor, keyboard, and mouse. At 5.5 x 2.8 x 0.6 inches and 11.2 oz, it sits flat on a desk without taking over your workspace — no external power brick required, since it draws power directly from the connected hosts. If you're managing a workstation and a laptop from one display or working in a dual-host IT support environment, the SV211HDUC eliminates cable swapping and keeps your desk clean without adding complexity.

Browse the full StarTech connectivity lineup or compare options across the KVM switches category to validate fit before ordering.

Key Features

• 4K 60Hz via HDMI 2.0: Full 3840x2160 resolution at 60 frames per second means you're not sacrificing display quality when switching hosts. Older HDMI 1.4 KVMs cap at 4K/30Hz, which produces visible judder in video playback and UI animation — HDMI 2.0 eliminates that compromise for demanding monitor setups.
• USB-C (DisplayPort Alt-Mode) Host Interface: Both host ports use 24-pin USB-C with DP Alt-Mode, so modern laptops and workstations with USB-C video output connect directly — no adapter chain needed. This is the native interface on most current-generation MacBooks, Dell XPS systems, and Thunderbolt-equipped workstations.
• Bus-Powered Operation: The switch draws power from the connected USB-C hosts, not a wall outlet. One fewer power adapter on your desk, one fewer outlet consumed. For clean deployments in executive offices or trading desks where cable management matters, this is a real advantage over externally-powered units.
• 7.1 Channel Audio Switching: Audio follows the active host, supporting up to 7.1 channel surround — relevant if your monitor or connected speakers handle multi-channel output. Both hosts' audio routes correctly through the switch without manual re-patching.
• One-Touch Port Selection: A physical push button on the unit switches between hosts. No hotkey sequences to memorize, no software to install. For shared workstations where multiple users cycle through, physical switching is faster and more intuitive than keyboard shortcuts.
• 2x USB 2.0 Type-A Console Ports: Two USB 2.0 Type-A ports on the console side handle keyboard and mouse. USB 2.0 at 480Mbps is more than sufficient for HID peripherals — you're not bottlenecked here for standard input devices.
• 480Mbps USB 2.0 Data Rate: The USB data path runs at USB 2.0 speeds (480Mbps). This is appropriate for keyboard, mouse, and basic peripheral sharing. Note: this is not a USB 3.x device — high-speed storage passthrough is not the use case here.
• 50,000-Hour MTBF: Mean time between failures of 50,000 hours indicates commercial-grade reliability for always-on desk deployments. At 8 hours per day of use, that projects to roughly 17 years of service life under normal conditions.
• Operating Environment 5°C–35°C, 20–80% RH: Standard office environment ratings. This is a desk device — not rated for industrial or uncontrolled-temperature environments. Storage tolerance extends to -20°C–50°C, so shipping and storage in cold climates or warm warehouses won't cause damage.

Integration and Compatibility

The SV211HDUC is designed for USB-C hosts running DisplayPort Alt-Mode. Confirm your host machines output video over USB-C before ordering — not all USB-C ports carry video signal. Thunderbolt 3 and Thunderbolt 4 ports are fully compatible. The single HDMI output connects to any HDMI 2.0 display; if your monitor is HDMI 1.4 only, the connection will work but resolution or refresh rate will be capped by the display, not the switch.

For keyboard and mouse, the two USB 2.0 Type-A console ports handle standard HID devices without driver installation on most operating systems. If you're building out a complete KVM accessories bundle — cables, console peripherals, or display mounts — verify USB-C cable length and quality, since long or low-quality USB-C cables can drop DP Alt-Mode signal.

For guidance on matching KVM switches to your host and display hardware, the KVM switch selection guide covers port type compatibility and video resolution tradeoffs in detail. If your setup requires more than two hosts or multiple monitors, consider stepping up to a larger multi-port KVM switch in the StarTech lineup.

Frequently Asked Questions

Q: Does the SV211HDUC require an external power supply?

A: No. The SV211HDUC is bus-powered, drawing power directly from the connected USB-C host computers. No external power adapter or wall outlet is needed.

Q: What is the maximum resolution and refresh rate supported?

A: The SV211HDUC supports up to 4K (3840x2160) at 60Hz via its HDMI 2.0 output. Your monitor must also support HDMI 2.0 to achieve 4K 60Hz — an HDMI 1.4 display will cap the output.

Q: Do both host ports support video output over USB-C?

A: Yes. Both host ports are USB-C (24-pin) with DisplayPort Alt-Mode support. Your connected computers must have USB-C ports that carry video signal (DP Alt-Mode or Thunderbolt 3/4). USB-C ports that carry data only will not work for video.

Q: What is the warranty on the SV211HDUC?

A: The SV211HDUC carries a 2-year manufacturer warranty.

Q: How do you switch between the two connected computers?

A: Switching is done via a physical push button on the unit. There are no hotkey sequences required and no software to install.

Q: Does the SV211HDUC support USB 3.0 or Thunderbolt data passthrough?

A: No. The USB data path on the SV211HDUC runs at USB 2.0 speeds (480Mbps maximum). It is designed for keyboard, mouse, and standard HID peripheral sharing — not high-speed storage or Thunderbolt data transfer.

Ted Perry

The SV211HDUC fits a specific niche well: two USB-C hosts, one HDMI 2.0 display, no power brick. The bus-powered design is the detail that actually matters in practice — most of the two-port KVM switches I've spec'd for executive and trading desk installs end up with a mess of adapters and wall warts, and this one sidesteps all of that by pulling 100% of its operating power from the host USB-C ports. If your hosts support it, the setup is genuinely clean.

Technical Highlights:

• HDMI 2.0 at 4K 60Hz: Delivers full 3840x2160 at 60fps — the threshold where 4K actually feels fluid. Units that top out at HDMI 1.4 produce noticeable judder at 4K; this one doesn't.
• USB 2.0 480Mbps console path: Sufficient for all keyboard and mouse traffic with zero latency impact, but buyers should know upfront this is not a USB 3.x switch — peripheral bandwidth tops out at 480Mbps.
• 50,000-hour MTBF: At a standard 8-hour office workday, that's approximately 17 years of rated service life — a number that holds up well for always-on desk deployments.

Deployment Considerations:

• Verify DP Alt-Mode is active on both host USB-C ports before deploying — USB-C ports on older docks or budget laptops sometimes carry data only, and the SV211HDUC will not pass video from those ports.
• Operating temperature ceiling is 35°C — this is a controlled office environment device. Do not deploy in server rooms without active cooling or in industrial settings where ambient temps exceed that threshold.

For a financial analyst, architect, or developer running a primary workstation alongside a secure-enclave laptop on a single 4K display, the SV211HDUC is a clean, no-compromise solution — provided both machines have genuine DP Alt-Mode USB-C output.
