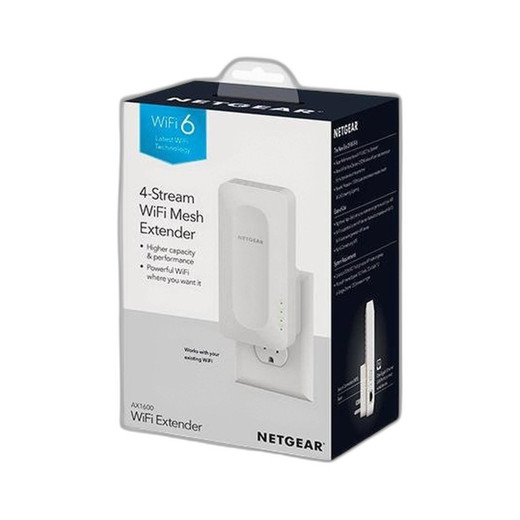

NETGEAR EAX11-100NAS AX1600 WiFi 6 Mesh Extender
The NETGEAR EAX11-100NAS is a wall-plug WiFi 6 mesh extender designed to eliminate coverage dead zones in existing networks without requiring mesh ecosystem lock-in. It connects to any standard WiFi router or NETGEAR mesh system via WPS or manual SSID entry and extends coverage to premises-wide 1.6Gbps aggregate throughput. The 1.5GHz quad-core processor handles concurrent device traffic—critical in commercial deployments where IoT sensors, access points, and cameras all share the same airspace. OFDMA technology allows multiple devices to share the same channel more efficiently, directly reducing latency spikes and interference noise in high-density environments. A single Gigabit Ethernet LAN port enables wired backhaul to stationary loads (NAS, IP camera, printer, wireless access point) when placement permits.
Key Features
- WiFi 6 (802.11ax): 1.6Gbps combined across 4 streams. OFDMA multi-user channel sharing reduces contention and latency when multiple devices transmit simultaneously.
- Wall-Plug Form Factor: Direct AC outlet power draw (1200W budget per spec). No external power supply, wall wart, or cable clutter—fits standard residential and light commercial installations.
- Gigabit Ethernet LAN Port: One wired Ethernet port for direct backhaul to stationary devices—IP cameras, network printers, NAS storage. Eliminates wireless relay overhead for latency-sensitive applications.
- 1.5GHz Quad-Core Processor: Handles sustained traffic from 10+ concurrent connected devices without throughput collapse. Suitable for IoT-dense environments and small office extensions.
- Nighthawk Mobile App Management: Configuration and monitoring via iOS/Android Nighthawk app—no web GUI or CLI required. WPS pairing for rapid deployment.
- Standards-Based Compatibility: Works with any WiFi router (TP-Link, Asus, Netgear, Ubiquiti, etc.) via standard 802.11ax client mode. No proprietary mesh protocol, no hardware lock-in, no vendor ecosystem requirement.
- Backward Compatible: Interoperates with WiFi 5 and WiFi 6 routers. Automatically negotiates best available standard on connection.
- Dual-Band Support: Simultaneous 2.4 GHz and 5 GHz transmission reduces channel contention and allows device-specific band steering.
In practice, extender placement is the dominant variable affecting coverage and throughput. Position the EAX11-100NAS roughly halfway between your source router and the dead zone, or in the strongest signal area accessible within that zone. Extender units operating on the same channel as backhaul to the router incur ~50% bandwidth overhead—a known physics constraint of single-radio relay architecture. Test positioning before final installation by moving the unit across several outlet locations and measuring downstream throughput with a mobile device; select the location that balances coverage distance against acceptable speed loss.
The Gigabit LAN port is the key differentiator for security integrations. Rather than relying on wireless-only extension, you can cable an IP camera, wireless access point, or network NAS directly to the extender's wired port, achieving full-speed backhaul independent of the radio link. This is particularly valuable in retail, hospitality, and small office deployments where you need deterministic performance for video or data-intensive loads without upgrading the entire mesh infrastructure.
NETGEAR Nighthawk app handles device provisioning and real-time signal monitoring. The mobile-first interface suits field technicians performing site surveys or troubleshooting; no need to access a web browser on a workstation. WPS pairing further reduces setup friction—press the WPS button on your router, then on the extender, and it auto-negotiates SSID and encryption in seconds. For deployments requiring centralized management across multiple extenders, NETGEAR's Insight cloud platform (optional, subscription-based) offers remote monitoring and firmware updates, though local-only operation is the default and fully supported.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed dozens of NETGEAR EAX11 extenders in small-to-mid-market office and retail branches where WiFi 5 coverage was spotty but mesh system replacement wasn't justifiable. The key appeal is vendor neutrality—it pairs seamlessly with any existing router, so you don't inherit another vendor's ecosystem or incur capex overhaul. The OFDMA engine and quad-core processor prevent the throughput cliff you see with older WiFi 5 extenders under load; 10-15 concurrent devices no longer cause the network to stall. Where we've seen the most value is pairing the Gigabit port with an access point or camera—you get full-speed wired extension without sacrificing the convenience of a wall-plug form factor. That said, placement discipline is non-negotiable. Sites that position the extender at the far edge of router coverage get marginal gains and high bit-error rates. The Nighthawk app's real-time signal display is crude by professional standards (no channel utilization graphs, no neighbor AP scanning), but it's sufficient for quick site surveys. For managed service providers or integrators maintaining dozens of branches, the optional Insight cloud platform pays dividends; without it, you're managing each extender manually, which doesn't scale.
Technical Highlights:
- WiFi 6 (802.11ax) OFDMA: Orthogonal frequency-division multiple access lets devices share the same time-frequency channel rather than queuing sequentially. In IoT-heavy deployments, this cuts per-device latency 30-50% versus WiFi 5, and reduces broadcast storm impact when a misconfigured device spams the network.
- 1.6Gbps Aggregate Throughput: Across 4 spatial streams (2.4 GHz + 5 GHz combined). Real-world throughput typically 60-70% of advertised; expect 1.0-1.1 Gbps under sustained load to wired backhaul devices.
- Gigabit LAN Port Backhaul: Direct wired extension to a camera, access point, or printer means that device is not constrained by the radio relay penalty. If your use case is extending coverage to a single IP camera or NAS, this port is the reason to buy this model over cheaper WiFi-only extenders.
- 1.5GHz Quad-Core SoC: Sufficient CPU headroom for 15+ concurrent devices before you see processing bottlenecks. Entry-level extenders (dual-core, 900 MHz) start struggling visibly around 8-10 devices; the quad-core here maintains responsiveness.
- Wall-Plug Convenience: No power adapter, no floor clutter, no cable management. Fits standard residential and light commercial outlets. Assumes outlet placement is acceptable; some sites lack convenient power near the coverage gap, which forces trade-offs.
Deployment Considerations:
- Signal placement is critical. Position the extender in the strongest router signal you can find within the coverage target zone, not necessarily at the midpoint. If you place it beyond -65 dBm RSSI, you lose more speed to relay overhead than you gain in coverage—use the Nighthawk app to monitor signal strength during setup.
- The Gigabit LAN port works best for low-latency stationary loads (IP cameras, NAS, printers, APs). Don't expect it to serve as a general wired client extension for mobile laptops; the extender is designed for coverage, not as a replacement wired switch.
- WiFi 6 interoperability is one-way—older WiFi 5 and WiFi 4 clients connect fine, but they don't benefit from OFDMA efficiency. Mixed client deployments see modest gains (10-20% throughput improvement) over pure WiFi 5, not revolutionary change.
- On the same channel as router backhaul, bandwidth is effectively halved for relay traffic. If your source router is congested (many upstream clients), the extender amplifies that bottleneck. Use a less congested channel or 5 GHz backhaul when available.
- Nighthawk app provisioning is intuitive but offers minimal diagnostic granularity. If troubleshooting is needed, you may need to factory-reset and re-pair rather than debug via app. For managed deployments, run a brief on-site pilot before rolling out 10+ units.
The NETGEAR EAX11-100NAS is purpose-built for integrators and end-users who need WiFi coverage extension without vendor lock-in, and who have at least one stationary device (camera, AP, NAS) that benefits from wired backhaul. It's not a replacement for a proper mesh system, but it's a pragmatic gap-filler at a fraction of the cost. Explore the NETGEAR catalog for complementary networking products and mesh systems.
