Middle Atlantic 16SP Cabinet Frame RK 23D - CFR-16-23

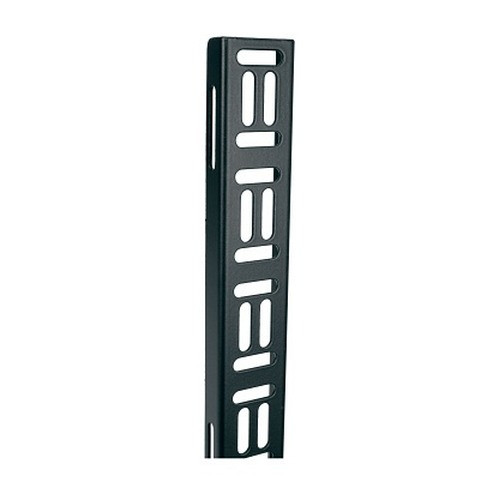

Middle Atlantic CFR-16-23 16RU In-Cabinet Frame Rack

Overview

The Middle Atlantic CFR-16-23 is a 16-rack-unit open-frame rail set designed to mount inside existing enclosures — not a standalone rack. If you're converting a ventilated cabinet or custom enclosure into a structured AV or security equipment bay, this frame drops in to provide 10-32 threaded rails across 16U of usable space. The CFR-16-23 ships in a flat-black powder-coat steel finish, manufactured in the USA and TAA-compliant, making it a straightforward choice for government and public-sector installations with domestic-origin requirements. At 23 inches of usable depth and a UL-rated load capacity of 250 lbs (113.4 kg), it handles dense NVR, server, and AV equipment loads without flex. Product weight is 22.5 lbs — light enough for a one-person install inside a cabinet.

Compatibility

The CFR-16-23 is part of Middle Atlantic's CFR (Cabinet Frame Rack) series and is intended for use inside Middle Atlantic enclosures that accommodate a 23-inch depth rail set. Compatible enclosure families include Middle Atlantic's BGR, BGRT, and similarly dimensioned lumber-and-rail cabinets where internal frame mounting is the designed installation method. The 10-32 rail standard accepts standard rack hardware from virtually any manufacturer — NVRs, patch panels, PoE switches, KVM drawers, and 1U/2U security appliances all mount without adapter hardware. For integrators building out network video recorders and associated PoE network switches inside a cabinet, the 16U capacity handles a typical 8–16 camera NVR stack with room for switch and patch panel. Confirm your cabinet's internal rail-mount points match the CFR series mounting pattern before ordering — Middle Atlantic publishes cabinet-specific compatibility on their product pages.

Installation Notes

Usable height is 28 inches (71.1 cm) across 16U; total frame height is 28.94 inches. Width is 19.25 inches, consistent with standard 19-inch rack equipment. The frame mounts inside the host cabinet using the cabinet's existing internal attachment points — no external fasteners or additional mounting hardware are included based on available evidence. Verify your cabinet's internal dimensions accommodate 19.25 inches of width and 23 inches of depth before ordering. The 250 lb UL load rating applies to the frame itself; ensure the host cabinet and its mounting surface are rated for the combined load of frame plus equipment. UL Listed.
