Middle Atlantic 16SP Cabinet Frame RK 18D - CFR-16-18

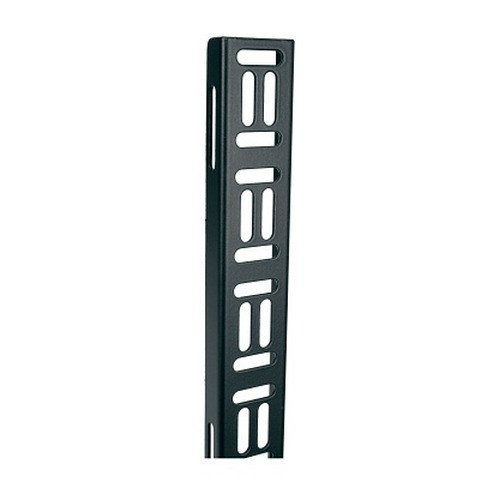

Middle Atlantic CFR-16-18 16RU In-Cabinet Frame Rack

Overview

The Middle Atlantic CFR-16-18 is a 16-rack-unit in-cabinet frame designed to mount inside an enclosure rather than stand independently — the right choice when you need a structured rail system within an existing cabinet footprint. At 18 inches of usable depth and a UL-rated 250 lb load capacity, this frame handles dense AV and security equipment loads without compromise. The CFR-16-18 ships in a flat black powder coat finish over steel construction, and its 10-32 threaded rack rails accommodate the full range of standard rack-mount hardware. TAA-compliant and manufactured in the USA, it meets federal procurement requirements where country-of-origin matters. Product weight is 23.5 lbs; plan for 29 lbs shipping weight when coordinating delivery logistics.

Compatibility

The CFR-16-18 is engineered for use within Middle Atlantic cabinet enclosures that accept an 18-inch-deep internal frame — specifically Middle Atlantic's C-series and similar enclosed rack cabinets sized for a 16RU frame insert. The 19.25-inch width and 10-32 rail pattern are compatible with standard EIA-310 rack-mount equipment: NVRs, PoE switches, patch panels, UPS units, and AV gear. Verify your enclosure's internal clearance against the 28.94-inch overall height and 18-inch depth before ordering — the usable rail space is 28 inches (71.1 cm), which accommodates exactly 16RU of installed equipment with no dead space above or below.

Installation Notes

This is an in-cabinet frame, not a standalone open-frame rack — it requires an outer enclosure for structural support and is not rated for freestanding use. The 10-32 threaded rail system requires 10-32 rack screws (not included); confirm your rack mounting hardware matches before installation. The 250 lb UL load rating applies to the frame itself; verify that your enclosure and mounting surface are rated to handle the combined load of frame plus installed equipment. For security deployments integrating NVRs and network switches, account for cable management depth when selecting equipment — usable depth of 18 inches is measured to the rail face, not the rear of the enclosure.
