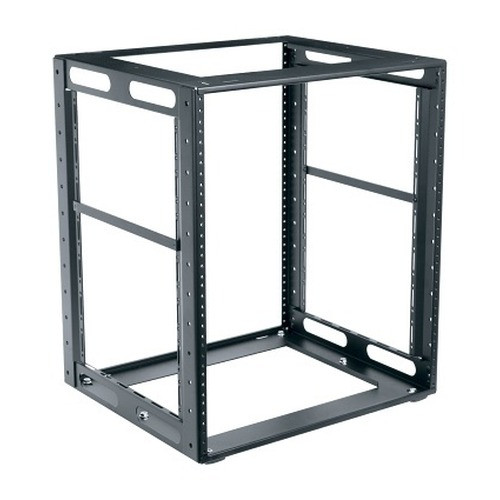

Middle Atlantic CFR-14-23 14U In-Cabinet Rack Frame

Overview

The Middle Atlantic CFR-14-23 is a 14U steel rack frame designed to mount inside an existing enclosure — not a standalone open-frame rack. If you're building out a head-end cabinet for a surveillance or AV system and need a properly threaded, UL-listed mounting structure that fits within a finished enclosure, the CFR-14-23 solves that problem without requiring a full rack replacement. The frame ships at 20.5 lbs, fits a 19.25 in wide footprint, and reaches 25.43 in tall — plan your enclosure clearance accordingly. UPC 656747268427 confirms this is the CFR-14-23 configuration: 14 rack units at 23 inches usable depth, finished in flat black powder coat steel.

Compatibility

Designed for Middle Atlantic enclosures and cabinets that accept in-cabinet rack frame inserts. The 14U capacity and 23 in usable depth suit NVR appliances, patch panels, PoE switches, and UPS units commonly deployed in physical security head-end builds. The 10-32 threaded rail pattern is the standard used across most 1U and 2U security appliances — confirm your gear uses 10-32 cage nuts or direct-thread screws before ordering; square-hole (M6) equipment requires an adapter. Load capacity is 250 lbs UL-listed, which comfortably covers a fully loaded 14U bay of network and recording equipment. TAA-compliant and manufactured in the USA, making it eligible for federal and government procurement without waiver.

Installation Notes

Usable height is 24.5 in (14U at 1.75 in per U) with an overall frame height of 25.43 in — account for the additional 0.93 in when sizing the host enclosure opening. Usable depth matches the frame depth at 23 in; verify that the deepest device in the bay (typically an NVR or UPS) clears the enclosure's rear door with cable dressing room to spare. Material is steel with flat black powder coat; no field finishing required. Shipping weight is 26 lbs — plan lift assistance for single-technician installs into overhead or elevated enclosures.
