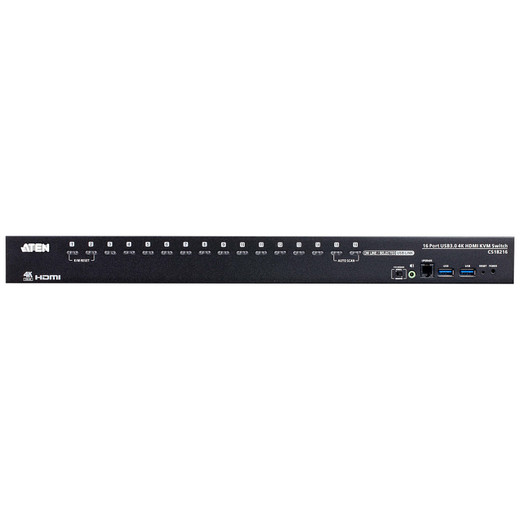

ATEN CS18216 16-Port USB 4K HDMI Rackmount KVM Switch
Overview
The CS18216 is a 16-port, rackmount KVM switch from the ATEN KVM line that consolidates control of up to 16 servers or workstations from a single USB keyboard, mouse, and HDMI display. Where it earns its place is in dense server rooms and NOC environments: the rack-mount form factor fits standard 1U/2U bays, and the CS18216 supports cascading up to 256 total nodes — meaning you can chain multiple units together without adding a second console station. Video output tops out at 4096x2160 @ 60Hz over HDMI, so full 4K resolution holds end-to-end across all 16 ports without downscaling. Port selection is flexible — OSD menu, front-panel pushbuttons, hotkeys, or RS-232 serial commands — covering both hands-on ops and scripted automation workflows. Two USB 3.1 Gen 1 Type-A ports on the front panel provide direct peripheral access at each console session, useful when deploying USB drives or dongles server-side without rewiring.
Compatibility
The CS18216 connects to any server, workstation, or KVM-compatible device with a standard USB keyboard/mouse interface and HDMI video output. Cascade configurations require a second CS18216 (or compatible ATEN 8-port variant from the same CS182xx family) connected via the dedicated cascade port — consult the ATEN compatibility matrix to confirm mixed-unit cascade support before ordering. RS-232 command control integrates with building management systems or serial-capable rack management controllers, making it suitable for data center infrastructure management environments. The USB 3.1 Gen 1 hub ports are compatible with standard USB-A peripherals including storage drives and input devices.
Installation Notes
Operating humidity is rated 0–80% RH non-condensing — standard for climate-controlled server rooms; avoid direct installation in uncontrolled warehouse or outdoor environments. Scan interval for auto-switching is configurable from 0 to 255 seconds (default 5 seconds), adjustable via OSD. Firmware is field-upgradeable via the onboard slide switch recovery mechanism; current release is v1.2.111 (2025-10-28), shared with the CS18208 8-port variant. Use the provided firmware zip (cs18208-cs18216-v1.2.111.zip) and follow ATEN's upgrade procedure to avoid partial-flash scenarios. For rack mounting, ATEN notes that physical dimensions on some rack products are expressed LxWxH rather than the standard WxDxH — verify orientation before ordering rack ears or blanking panels.
