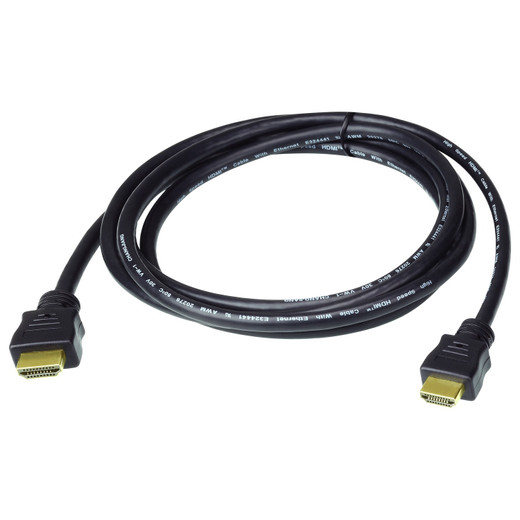

ATEN 2L7D05H HDMI Cable — Male to Male, 5m, 4K/30Hz
Overview
The ATEN 2L7D05H is a 5-meter HDMI male-to-male cable engineered for AV distribution, KVM console runs, and display connections where consistent 4K signal integrity over mid-range distances matters. It carries up to 4096x2160 at 30Hz — the full DCI 4K envelope — making it a practical choice for digital signage feeds, boardroom display links, and AV-over-IP endpoint connections where you need resolution headroom without stepping up to fiber. The 2L7D05H is part of ATEN's structured cable line, available in 5m, 10m, 15m, and 20m lengths to match your rack-to-display or matrix-to-panel run.
Compatibility
This cable is designed for use with ATEN KVM switches, matrix switches, video extenders, and HDMI-equipped displays that accept standard 18Gbps HDMI signaling. Compatible product families include ATEN VM-series HDMI matrix switches, VS-series HDMI splitters, VE-series HDMI extenders, and KVM switches with HDMI console ports (CS-series). The male-to-male connector configuration fits any standard HDMI Type A port — source to display, switch to panel, or extender local-unit to source device. Confirm your application's bandwidth requirements: the 2L7D05H is rated for 4K/30Hz, not 4K/60Hz — if your source outputs 4K/60 (600MHz / HDMI 2.0), step up to a cable rated for that bandwidth.
Installation Notes
The cable jacket is PVC-rated to 80°C continuous operating temperature — suitable for standard conduit and above-ceiling plenum-adjacent routing, though verify local fire code if a CL2/CL3 or plenum (CMP) rating is required for in-wall runs. Aluminum foil shielding on tinned copper conductors (24–30 AWG) suppresses EMI from adjacent power runs common in equipment racks. Gold-plated connectors resist oxidation in humid environments. The outer diameter ranges 6.0–10.0mm depending on configuration; plan cable management clips and grommet sizing accordingly. Bend radius is rated to 90° — avoid sharper bends at rack edges or behind wall-mounted displays, which can degrade signal integrity over time. Compliant with UL VW-1, CSA, and RoHS — suitable for commercial AV and security installations in North American code jurisdictions.
