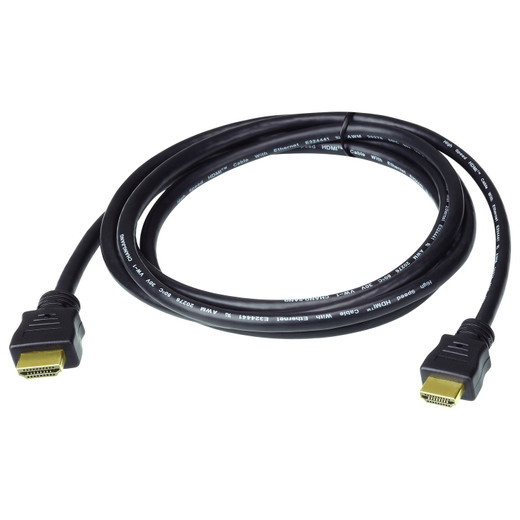

ATEN 2L7D03H HDMI Cable — 1m, 4K/60Hz, Male to Male
Overview
The ATEN 2L7D03H is a 1-meter HDMI male-to-male cable rated for 4096x2160 at 60Hz — the resolution ceiling required for UHD source-to-display runs in AV-over-IP installations, KVM console setups, and digital signage deployments. HDCP 2.2 compliance means it won't break the handshake on protected 4K content streams, which is a common failure point when mixing cables from non-compliant sources. The 30AWG tinned copper conductor and gold-plated 19-pin connectors are built for reliable signal integrity across repeated connect/disconnect cycles in rack and patch environments. PVC jacket with a 6.0mm outer diameter keeps cable management clean in tight rack pathways. UL VW-1 flame rating and CSA certification satisfy standard commercial installation requirements — relevant when running cable inside walls or above drop ceilings.
Compatibility
Designed for use with ATEN KVM switches, matrix switches, and video extenders that carry an HDMI interface — including the VM, VS, and VE series. Also compatible with any standard HDMI source or display supporting the 19-pin Type A connector: 4K monitors, projectors, capture cards, UHD NVR outputs, and HDMI-equipped network video recorders. HDCP 2.2 support ensures compatibility with DRM-enforced 4K sources. This cable is sold as a 1m length (2L7D03H); ATEN offers the same design in 2m, 3m, and 5m variants — select the appropriate length for your cable run before ordering, since substituting a longer cable to compensate for routing adds bulk and can affect signal margin in daisy-chained extender setups.
Installation Notes
Operating temperature ceiling is 80°C — relevant for enclosed rack cabinets or cable trays where ambient heat accumulates. Confirm your cabinet's thermal profile before bundling densely. The 6.0 ± 0.20mm jacket diameter is compatible with standard HDMI cable management clips and D-rings rated for that gauge. RoHS compliance is in scope for installations subject to hazardous-materials restrictions. Gold plating on the connectors resists oxidation in moderate-humidity environments; for outdoor or high-humidity runs, use an appropriately rated extender rather than extending this cable beyond its rated environment.
