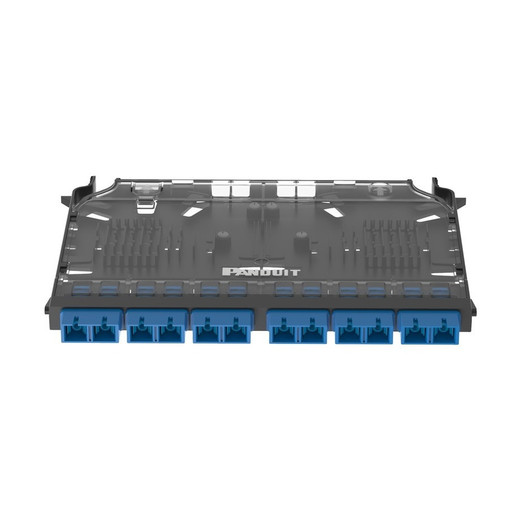

Panduit FHS9N-12-03R HD Flex 12-Fiber OS2 SC Duplex Splice Cassette

The Panduit FHS9N-12-03R is a 12-fiber, OS2 single-mode splice cassette in the HD Flex™ platform, built for structured fiber backbone runs where you need clean, high-density termination at the panel without the bulk of traditional splice trays. With six SC duplex ports on the front and unterminated pigtails at the rear, this cassette fits directly into HD Flex enclosures and panels — no adapters, no conversion hardware, no field-crimped connectors to manage.

Overview

Fiber backbone infrastructure in commercial buildings, data centers, and campus networks lives or dies on splice quality and cassette density. The FHS9N-12-03R addresses both: 12 fibers per cassette in a polycarbonate body means you can pack high fiber counts into a single rack unit of panel space while keeping every splice protected and organized. The OS2 9/125µm single-mode fiber type targets the long-haul or inter-building segments where multimode simply won't reach — think campus backbone, inter-floor riser, or building-to-building connections over 300 meters where OS2's low attenuation matters. This cassette is part of the Panduit fiber solutions line, engineered for the HD Flex™ modular panel ecosystem.

Key Features

• 12-Fiber OS2 Single-Mode: Nine-micron OS2 fiber handles long-distance backbone runs where multimode hits its distance ceiling — typically beyond 300m at 10G or any distance at 40G/100G over SMF transceivers. Twelve fibers per cassette keeps density up without requiring oversized panels.
• Six SC Duplex Ports (6 ports / 12 fibers): SC duplex remains one of the most widely deployed connector types in enterprise and campus environments. Six SC duplex ports on the FHS9N-12-03R means straightforward integration with existing SC-based patch cords and equipment — no LC-to-SC conversion loss to manage, no hybrid adapter panels needed if your infrastructure is SC-standardized.
• Unterminated Rear (Splice Configuration): The rear of this cassette ships unterminated, which means it's designed for fusion or mechanical splicing of field-run fiber directly into the cassette. This is the correct choice when you're landing a blown or pulled OS2 trunk cable and want the splice point protected inside the panel — not when you need a pre-terminated trunk-to-trunk connection (that's a different cassette family).
• HD Flex™ Platform: The HD Flex ecosystem is Panduit's modular high-density fiber panel architecture. Cassettes drop in and out without disturbing adjacent fibers, which matters during MAC (moves, adds, changes) in a live fiber plant. If you're already running HD Flex panels or enclosures, the FHS9N-12-03R slots directly in without any adapter hardware.
• Polycarbonate Construction: The polycarbonate body is impact-resistant and dimensionally stable in the temperature ranges typical of telecom rooms and data center hot/cold aisles. It's not a cosmetic choice — polycarbonate cassette bodies resist cracking during installation and handling better than lower-grade plastics, which matters when you're sliding cassettes in and out of a loaded panel under time pressure.
• Standard Insertion Loss (Standard IL): The FHS9N-12-03R is specified at standard insertion loss — not low-IL or ultra-low-IL. For most enterprise backbone and campus deployments this is completely adequate. If your optical power budget is extremely tight (long cascaded runs, high split ratios in passive optical networks), check your link budget math before committing to standard-IL cassettes rather than a low-IL variant.
• Package Quantity of 1, Carton Quantity of 10: Sold individually, with 10 per carton for volume deployments. If you're building out a large panel farm — say, a 144-fiber MDA in a data center — buying by the carton makes sense both logistically and for cost management.

Integration & Compatibility

The FHS9N-12-03R is designed for the Panduit HD Flex fiber panel and enclosure platform. Confirm your enclosure accepts HD Flex cassettes before ordering — Panduit's OPTICOM and other legacy panel families use different cassette form factors and are not interchangeable. On the connector side, SC duplex patch cords are required at the front; the rear accepts field-spliced OS2 fiber. If your facility has already standardized on LC duplex or MTP/MPO trunking, this cassette is not the right fit — look at the LC or MTP variants in the HD Flex line instead. For OS2 trunk cable planning, pair with appropriately rated OS2 plenum or riser cable depending on your pathway classification.

What's in the Box

• 1x Panduit FHS9N-12-03R HD Flex 12-Fiber OS2 SC Duplex Splice Cassette

Frequently Asked Questions

Q: What fiber type does the FHS9N-12-03R support — can it be used with OM3 or OM4 multimode fiber?

A: No. The FHS9N-12-03R is an OS2 single-mode cassette using 9/125µm fiber. It is not compatible with multimode fiber (OM3/OM4/OM5). For multimode deployments, you need the appropriate multimode variant in the HD Flex line.

Q: Does the FHS9N-12-03R come pre-terminated, or does it require field splicing?

A: The rear of this cassette is unterminated — it is designed for fusion or mechanical splicing of field-run OS2 fiber directly into the cassette at the rear. The front ports are SC duplex for patching. If you need a factory pre-terminated trunk connection, look for a pre-terminated cassette variant.

Q: Is this cassette compatible with all Panduit fiber panels, or only HD Flex enclosures?

A: The FHS9N-12-03R is designed specifically for the Panduit HD Flex™ panel and enclosure platform. It is not interchangeable with Panduit's OPTICOM or other legacy panel families, which use different cassette form factors. Verify your enclosure model accepts HD Flex cassettes before ordering.

Q: How many SC duplex connections does the FHS9N-12-03R provide?

A: Six SC duplex ports, accommodating all 12 fibers. Each SC duplex port carries two fibers (transmit and receive), so six ports equals 12 fiber circuits.

Q: What is the insertion loss rating on the FHS9N-12-03R?

A: The FHS9N-12-03R is specified at standard insertion loss (Standard IL). If your link budget requires low-IL or ultra-low-IL performance — for example, in a long cascaded run or a passive optical application — check Panduit's HD Flex lineup for low-IL variants before committing to this cassette.

Q: Can the FHS9N-12-03R be ordered in bulk, and what is the carton quantity?

A: Yes. The package quantity is 1 (sold individually), and the carton quantity is 10. For large panel buildouts, ordering by the carton simplifies receiving and inventory management.

Jerry Tildsen

The FHS9N-12-03R is a straightforward, well-executed piece of the HD Flex™ platform — 12 fibers, OS2 single-mode, six SC duplex ports, splice-ready rear. What I want buyers to think about before ordering is whether the splice configuration actually matches their infrastructure plan. This is not a pre-terminated cassette. If your field crew is running trunk cable and terminating on-site with a fusion splicer, this is exactly right. If you're expecting to drop in a pre-terminated trunk and be done, you need a different part number.

Technical Highlights:

• OS2 9/125µm Fiber: Single-mode at 9 microns means this cassette is suited for runs where multimode has hit its ceiling — typically any OS2 backbone segment over 300m at 10G, or any distance where you're using SMF transceivers. Don't mix fiber types at the splice; OS2 to multimode splices produce unacceptable loss.
• Six SC Duplex Ports / 12 Fibers: Six SC duplex ports gives you 12 individual fiber circuits in a single cassette footprint. In an HD Flex 1U panel that accepts multiple cassettes, you can land 72 or more fibers per rack unit — real density for a MDA or IDF build.
• Standard IL Rating: Standard insertion loss is the correct call for most enterprise backbone links where your power budget has reasonable margin. If you're cascading through multiple splice points or running extended distances pushing the OS2 attenuation ceiling, pull out the link budget spreadsheet before assuming Standard IL is sufficient — it usually is, but verify.

Deployment Considerations:

• Confirm your enclosure model is HD Flex compatible before the cassettes arrive on-site. Panduit makes multiple panel families and the cassette form factors are not interchangeable — a mislabeled enclosure on a PO will cost you a return trip.
• The unterminated rear means a fusion splicer and OS2 pigtails (or direct fiber from the trunk) are required on-site. This is not a plug-and-play cassette — budget the splicing labor and materials into your project cost, particularly if you're landing a large-count trunk across many cassettes simultaneously.

The FHS9N-12-03R is the right cassette for an OS2 campus backbone or inter-floor riser termination project where the team has fusion splicing capability and the infrastructure is already standardized on SC duplex — common in healthcare campuses, university buildings, and mid-to-large enterprise IDFs that predate the LC migration.
