Panduit FHSZA-12-03R 12-Fiber OM4 HD Flex SC Splice Fiber Cassette

Overview

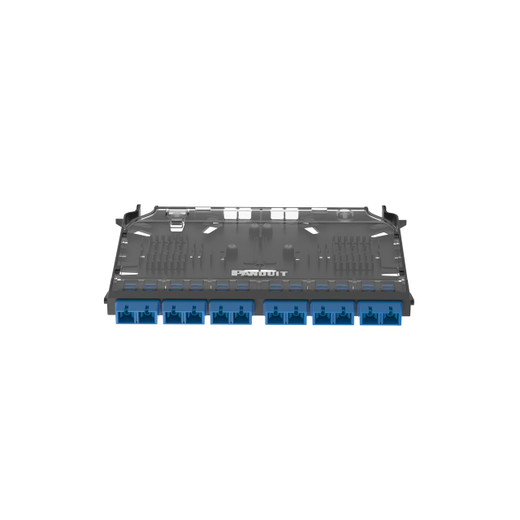

The Panduit FHSZA-12-03R is a 12-fiber OM4 splice-loaded fiber cassette built for the Panduit HD Flex high-density fiber infrastructure platform. With 6 SC duplex ports on the front and unterminated splice pigtails on the rear, it gives network and security infrastructure teams a clean, modular way to terminate field-run multimode fiber without committing to a fixed panel layout. If you're deploying fiber optic infrastructure in enterprise data centers, campus backbones, or high-density security head-end rooms, this cassette format is worth understanding before you spec a traditional fixed-port panel.

The cassette slides into any HD Flex-compatible enclosure — swapping a failed cassette or reconfiguring a zone takes seconds rather than requiring a full panel replacement. That modularity has real operational value in facilities where the fiber plant needs to evolve alongside the network.

Key Features

• 12-Fiber OM4 Multimode: OM4-rated 50/125µm fiber supports 40GbE and 100GbE at up to 150m — meaning this cassette is appropriate for modern high-speed backbone runs, not just legacy gigabit links. If your security or IT backbone is moving to 40G or 100G, OM4 is the minimum you want in the plant.
• 6 SC Duplex Ports (Ultra Low Insertion Loss): Six SC duplex ports deliver 12 fiber connections in a single cassette footprint. The ultra-low IL rating means less signal degradation per connection point — critical when you're stacking multiple cassettes in a long-haul path where insertion losses compound.
• Splice-Loaded (Unterminated Rear): The rear pigtails are unterminated, meaning field fiber is fusion-spliced directly to the cassette's built-in pigtails inside the cassette body. This eliminates a connector mating point compared to field-terminated connectors, which translates to lower and more consistent insertion loss at each fiber endpoint.
• HD Flex Platform Compatibility: Designed specifically for Panduit's HD Flex enclosure ecosystem. If you're already running HD Flex frames in your MDA or IDA, this cassette drops in without adapters — standardizing on one platform simplifies sparing and reduces installation errors.
• Polycarbonate Housing: The black polycarbonate body is lighter than metal alternatives while providing the structural rigidity needed to protect fusion splices. Polycarbonate also handles the thermal cycling common in equipment rooms without warping or cracking over time.
• Modular Cassette Format: The cassette architecture means individual 12-fiber zones can be added, removed, or replaced independently. In a 1U HD Flex panel, you can mix cassette types as your cabling needs change — no need to repunch a full fixed panel when you're adding a new riser or relocating a camera cluster.
• Sold Individually, Carton of 10: Each FHSZA-12-03R ships as a single cassette (Package Qty: 1), but carton quantity is 10 — useful context when planning a large deployment where you'll want to order in bulk to minimize per-unit shipping cost.

Integration & Compatibility

The FHSZA-12-03R is built for the Panduit HD Flex enclosure family. It will not seat correctly in standard 1U fixed-port panels or competing cassette platforms — verify your enclosure is HD Flex-compatible before ordering. The SC duplex front interface is widely compatible with OM4-capable switches, media converters, and SFP+ transceivers. Pair with OM4-rated patch cords (LC or SC depending on your active equipment) to complete the link. For longer backbone runs feeding network switches or NVR head-ends, confirm your transceiver's OM4 distance budget aligns with your run lengths before finalizing fiber counts.

The unterminated rear requires fusion splicing — factor fusion splice labor and equipment access into your installation planning. This is not a field-terminated or pre-polished push-on solution.

Frequently Asked Questions

Q: What enclosure is the FHSZA-12-03R compatible with?

A: The FHSZA-12-03R is designed for Panduit's HD Flex enclosure platform. It is not a universal cassette and will not fit standard fixed-port panels or non-HD Flex frames. Confirm your enclosure model is HD Flex-compatible before ordering.

Q: Does the FHSZA-12-03R come pre-loaded with splices, or do I need to fusion splice in the field?

A: The cassette ships splice-loaded — the internal pigtails and splice holders are pre-installed inside the cassette body. You fusion splice your field fiber to the cassette's rear pigtails on-site. You do not need to load individual splice components.

Q: What fiber type does the FHSZA-12-03R support?

A: It supports OM4 multimode fiber (50/125µm). It is not rated for single-mode (OS1/OS2) applications.

Q: How many fiber connections does the FHSZA-12-03R provide?

A: The cassette provides 12 fibers total across 6 SC duplex ports on the front face, with 12 corresponding splice pigtails on the rear.

Q: Can I order the FHSZA-12-03R as a single unit, or is it carton-only?

A: The FHSZA-12-03R is sold individually (Package Qty: 1). The carton quantity of 10 is the standard bulk packaging — you can order a single cassette or multiple units depending on your project scope.

Q: Is the FHSZA-12-03R suitable for 40GbE or 100GbE backbone applications?

A: Yes. OM4 multimode fiber supports 40GbE up to 150m and 100GbE at shorter distances, making this cassette appropriate for modern high-speed backbone links — not just legacy gigabit infrastructure.

Karl Wilson

The FHSZA-12-03R is a splice cassette, and the splice-loaded rear is the spec that matters most in practice. You're not field-terminating these — you're fusion splicing your backbone fiber directly into the cassette's pre-installed pigtails, which gives you a cleaner, lower-loss termination than a field-polished connector. For a 12-fiber OM4 zone feeding camera clusters or switch uplinks, that consistency matters more than it would on a single short patch cord.

Technical Highlights:

• OM4 50/125µm Fiber: Supports 40GbE to 150m and 100GbE at shorter distances — this cassette is spec'd for current high-speed backbone deployments, not just legacy 1G infrastructure. Don't downgrade to OM3 if your switches are already moving to 40G.
• 6 SC Duplex Ports / Ultra Low IL: 12 fibers in a single cassette with ultra-low insertion loss at each port. In a multi-cassette path, low IL per connection point compounds favorably — less signal budget burned at the panel, more margin for transceiver sensitivity limits.
• HD Flex Platform: The cassette-swap architecture means a failed or reconfigured zone is a tool-free pull-and-replace, not a re-termination job. In a live data center or head-end room, that's a meaningful difference in MTTR.

Deployment Considerations:

• The unterminated rear requires fusion splice access during installation — budget for fusion splicer availability and trained technician time. This is not a plug-and-play termination method.
• HD Flex enclosure compatibility is non-negotiable. The FHSZA-12-03R (often searched as FHSZA 12 03R) will not seat or latch in non-HD Flex frames — verify your panel model before pulling fiber to the rack.

Best fit for enterprise security head-end rooms or campus MDAs where OM4 backbone fiber is being terminated in a high-density HD Flex infrastructure and the splice approach is already established. Not the right cassette for a simple patch-only application or a site without fusion splice capability on staff.
