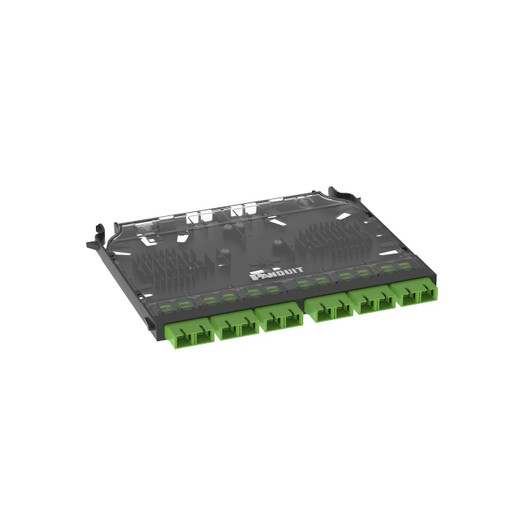

Panduit FHS9N-12-3AP 12-Fiber OS2 APC HD Flex SC Duplex Fiber Cassette

Overview

The Panduit FHS9N-12-3AP is a 12-fiber OS2 single-mode fiber cassette built on the HD Flex™ platform, designed for high-density structured cabling environments where port count, cable management, and low insertion loss all matter in the same rack unit. With 6 SC duplex front-facing ports and unterminated pigtails on the rear, this cassette integrates into HD Flex modular panels and enclosures — giving installers a clean, organized splice point without the sprawl of individual fiber runs. If you're deploying OS2 single-mode plant in a data center, enterprise MDF/IDF, or campus backbone and need an APC-terminated cassette that slots into a scalable modular system, the FHS9N-12-3AP is the straightforward answer.

The APC (angled physical contact) polish on the SC duplex ports is a deliberate specification choice — APC connectors deliver return loss typically greater than 60 dB versus the ~26 dB of UPC connectors, which matters on long single-mode runs where back-reflections degrade signal quality in DWDM, CATV, or coherent optical links. If your application is standard enterprise IP networking or security over short single-mode runs, UPC variants exist in the same HD Flex family — APC is the right spec for signal-sensitive or long-haul OS2 links.

Key Features

• 12-Fiber OS2 Single-Mode: OS2 9/125µm fiber supports low-attenuation transmission over distances up to 10 km and beyond depending on optics — the right foundation for campus backbone or inter-building links where multimode simply won't reach.
• 6 SC Duplex Front Ports (APC Polish): Six SC duplex positions give you 12 fibers in a compact cassette footprint. APC polish reduces back-reflection to levels required by analog video, DWDM, and high-sensitivity optical receivers — a direct spec match for signal-critical OS2 infrastructure.
• Unterminated Rear (Splice-Ready): The unterminated Connector 2 side means you splice directly to your incoming fiber plant rather than using a pre-terminated trunk — the correct approach when exact cable lengths are unknown or when you need permanent, low-loss fusion-spliced terminations instead of field connectors.
• HD Flex™ Platform: The HD Flex sub-brand indicates compatibility with Panduit's modular high-density panel system. Cassettes install and swap without tools in the field, which reduces maintenance downtime when a port needs to be replaced or the infrastructure re-patched.
• Standard Insertion Loss (Standard IL): The standard IL rating (as opposed to low-IL or ultra-low IL tiers) is the correct tier for most enterprise and commercial deployments — adequate margin for IEEE 802.3 optical budgets on typical structured cabling spans without the cost premium of low-IL products you don't need unless you're running right at the edge of a power budget.
• Polycarbonate Housing: Polycarbonate construction provides the mechanical rigidity needed to protect 9µm glass fiber bends and splices inside a cassette that will be handled repeatedly during moves, adds, and changes in active patch environments.
• Black Color / Rack Integration: Standard black finish matches common patch panel and rack aesthetics — straightforward for cable plant documentation and visual port identification in high-density environments.

Integration & Compatibility

The FHS9N-12-3AP (often searched as FHS9N 12 3AP) is designed for use within Panduit's HD Flex fiber management system, which includes compatible modular panels and enclosures that accept this cassette form factor. Verify that your target panel or enclosure is rated for HD Flex cassette insertion before ordering — the system is modular but not universally backward-compatible with older Panduit panel generations. This cassette is appropriate for integration into fiber optic cable plant using OS2 single-mode fiber; do not install it on OM1/OM2/OM3/OM4 multimode infrastructure. For APC-terminated links, ensure that all connected equipment, patch cords, and mating adapters also use APC connectors — mixing APC and UPC on the same link introduces a mechanical mismatch that increases insertion loss and degrades return loss significantly. Consider pairing this cassette with compatible OS2 APC patch cords and a HD Flex modular enclosure to complete the structured fiber termination point.

What's in the Box

• 1x Panduit FHS9N-12-3AP HD Flex 12-Fiber OS2 APC SC Duplex Fiber Cassette

Frequently Asked Questions

Q: What fiber type does the FHS9N-12-3AP support — can it be used with multimode fiber?

A: No. The FHS9N-12-3AP is an OS2 single-mode cassette with a 9µm fiber diameter. It is not compatible with multimode fiber (OM1/OM2/OM3/OM4). Using it with multimode plant will result in excessive insertion loss and unreliable links.

Q: What is APC polish, and do I need it for a standard enterprise LAN deployment?

A: APC (angled physical contact) polish reduces back-reflection to typically greater than 60 dB return loss, compared to approximately 26 dB for UPC connectors. For most enterprise LAN (1G/10G Ethernet) applications over short OS2 runs, standard UPC is sufficient. APC is the correct choice for analog video, DWDM, CATV, or any link where high back-reflection could degrade the optical source or receiver. All patch cords and mating connectors on an APC link must also be APC-polished — mixing connector types on the same link is not acceptable.

Q: How many fibers does this cassette support, and how many ports does that translate to?

A: The FHS9N-12-3AP supports 12 fibers terminated as 6 SC duplex ports on the front face. Each SC duplex port carries two fibers (one transmit, one receive), yielding 6 duplex connections per cassette.

Q: Is the rear of the cassette pre-terminated or does it require splicing?

A: The rear (Connector 2) is unterminated — it requires fusion splicing to your incoming fiber plant. This is the appropriate approach when cable run lengths are variable or when you require the lowest-loss, most permanent termination method. It is not a plug-and-play trunk connector.

Q: How many cassettes come per carton, and is it sold individually?

A: The FHS9N-12-3AP is sold with a package quantity of 1 cassette per unit. The carton quantity is 10, which is the standard shipping carton count — individual units are available.

Q: Is this cassette compatible with all Panduit fiber panels, or only HD Flex enclosures?

A: This cassette is specifically designed for the HD Flex™ modular system. Compatibility with other Panduit panel generations is not guaranteed — confirm that your target enclosure or panel explicitly supports HD Flex cassette insertion before ordering.

Jerry Tildsen

The FHS9N-12-3AP sits in a specific niche in the Panduit HD Flex line — it's the APC-polish variant of the 12-fiber OS2 SC duplex cassette, and that single distinction drives the entire deployment decision. APC matters when your optical link budget is tight at the source end, or when you're running coherent or analog-overlay signals where a UPC connector's ~26 dB return loss would cause reflections back into the transmitter. On a standard 10GBase-LR enterprise run, you likely don't need it; on a CATV headend or a long-haul OS2 campus backbone feeding into sensitive DWDM equipment, APC is the correct termination choice and this cassette is spec'd accordingly.

Technical Highlights:

• OS2 9µm Fiber, 12 Fibers / 6 SC Duplex Ports: Twelve fibers in a single cassette with SC duplex front access means you're getting 6 full-duplex connections per cassette slot — reasonable density for the HD Flex platform without going to LC duplex. SC duplex is the right connector when your network equipment uses SC-format SFPs or when legacy infrastructure demands it.
• APC Polish — Return Loss >60 dB: The angled contact geometry pushes reflected light away from the fiber core rather than back toward the source. On DWDM or analog video links, this is the difference between a clean link and one that degrades the laser's coherence or introduces noise on the video overlay.
• Unterminated Rear / Splice-Ready: Fusion splicing to the incoming plant instead of using field connectors is the right call for permanent infrastructure — you avoid the 0.3–0.5 dB insertion loss of a mated connector pair at every splice point, which adds up on multi-span campus backbones.

Deployment Considerations:

• APC connector mating is not forgiving — every cord, adapter, and mating device on this link must be APC. A single UPC-to-APC mismatch at any point in the link creates a physical gap that raises insertion loss and destroys the return loss advantage you paid for.
• The unterminated rear requires a licensed fusion splicer and trained technician on-site. If your crew is doing field-connector terminations only, specify the pre-terminated trunk variant in the HD Flex family instead.

The FHS9N-12-3AP is the right cassette for campus backbone termination points where OS2 APC infrastructure feeds DWDM multiplexers, analog video headends, or long-haul single-mode links — not the everyday enterprise LAN IDF where a UPC variant at lower cost makes more sense.
