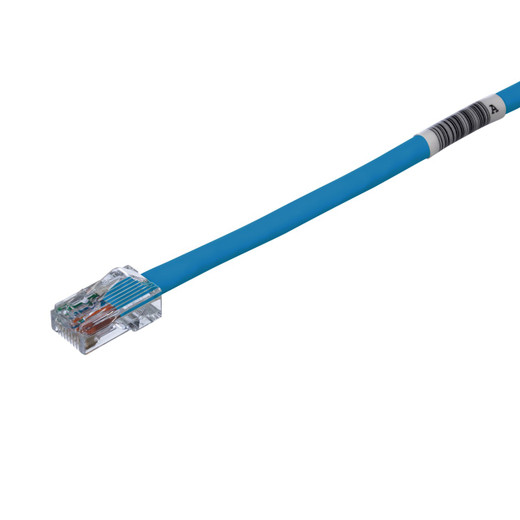

Panduit UTPCH10BUY Cat 5e UTP Patch Cord
The Panduit UTPCH10BUY is a 10-foot Category 5e UTP patch cord engineered for high-density rack environments where reliability and rapid deployment matter. Built with 24 AWG stranded copper and terminated with Pan-Plug modular connectors, this blue jumper delivers verified Gigabit Ethernet performance while supporting Power over Ethernet up through 802.3bt Type 4 (PoE++). Every cord ships with pre-installed RapidID barcodes, enabling one-scan port mapping that cuts documentation time on large IP camera arrays, access control panels, and VoIP phone rollouts. The patented tangle-free latch prevents snags during pulls through congested patch panels, a small detail that saves measurable time when you're dressing 200+ cables in a server rack or IDF closet.
Key Features
- 24 AWG stranded U/UTP construction for flexibility in tight bend-radius applications
- 100% factory tested for wire map, NEXT, and return loss across 1–100 MHz
- Tangle-free latch design prevents hook-and-snag failures during MACs
- RapidID pre-installed barcodes enable fast port documentation with compatible software
- Supports PoE++ (802.3bt Type 3 & Type 4) for PTZ cameras, 802.11ax APs, and high-power endpoints
- Exceeds ANSI/TIA-568.2-D Category 5e and ISO/IEC 11801 Class D performance standards
- Compatible with T568A and T568B wiring schemes for mixed-environment deployments
- CM-rated jacket meets NEC requirements for horizontal cable runs
- RoHS compliant; UL listed (File E129886)
Panduit factory-tests every UTPCH10BUY cord end-to-end before it leaves the production line, verifying wire-map continuity, near-end crosstalk (NEXT), and return loss against Category 5e channel limits. The centered de-embedded plug geometry and integral pair manager inside each Pan-Plug connector maintain twist right up to the contact point, preserving signal integrity at Gigabit speeds even when the cable is flexed repeatedly during adds or moves. The 24 AWG stranded conductors offer the pliability installers need in high-density patch fields—these cords route cleanly around vertical managers and dress into horizontal troughs without the springback you get from solid-conductor jumpers. Standards compliance extends beyond electrical performance: the CM jacket rating satisfies NEC Article 800 for installation in cable trays and plenum-return pathways (when used with plenum-rated horizontal cabling), and the plug design meets IEC 60603-7 dimensional specs for universal RJ45 compatibility.
In security and access control installations, PoE++ support is the differentiator. This cord will safely deliver up to 90 watts (802.3bt Type 4) to a single endpoint, which matters when you're powering a 4K PTZ camera with integrated IR illuminator and edge analytics, or a high-power 802.11ax access point serving a warehouse floor. The stranded-conductor design also improves DC resistance balance compared to mixed solid/stranded patch cords, reducing the voltage drop that can cause PoE negotiation failures on long horizontal runs. RapidID barcodes print directly on the plug boot; scan once with the Panduit RapidID mobile app, and the port assignment, cable ID, and install date write automatically to your DCIM database—no clipboard, no spreadsheet re-entry, no transposition errors when you're documenting a 48-port switch cutover at 2 a.m.
The tangle-free latch isn't marketing—it's a molded boot extension that shields the release tab from snagging on adjacent cables during extraction. In a fully populated 2-post relay rack with 500+ patch cords, that feature alone prevents the cascade failures (yank one cord, release three others) that turn a simple port move into a service-impacting event. Pan-Net patch cords ship in cartons of 10, and Panduit backs them with a manufacturer warranty. For integrators spec'ing IP camera networks, converged voice/data builds, or any Ethernet deployment where uptime and install speed directly affect labor cost, the UTPCH10BUY delivers the mechanical durability and electrical headroom Panduit's TX5e platform is known for.
