Aiphone 10-STATION Audio Door Adaptor for Tc-m - TB-AD10

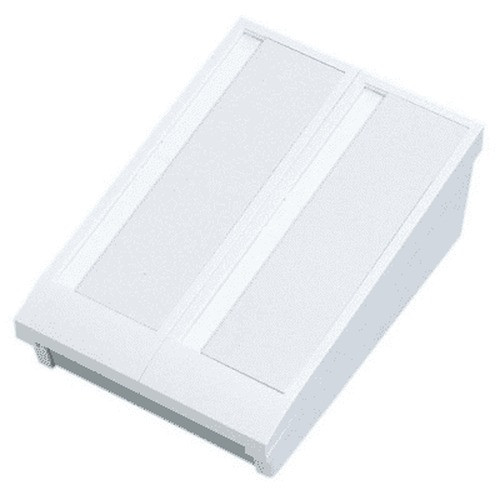

Aiphone TB-AD10 Audio Door Adaptor

Overview

The Aiphone TB-AD10 is an audio door adaptor designed to extend the reach of your intercom system, specifically for use with the TC-M master station and IE series door stations. This unit is critical for deployments in larger facilities where standard cable lengths are insufficient, ensuring reliable audio communication across significant distances without signal degradation. It acts as a bridge, allowing for longer wire runs than typically supported by the master station alone.

Compatibility

This adaptor is engineered for seamless integration with Aiphone's TC-M master stations and IE series door stations. It is not a standalone intercom device but an accessory that enhances the capabilities of these specific Aiphone components.

Installation Notes

The TB-AD10 supports extended wiring distances. When connecting to an IE door station, you can achieve up to 500 feet using 22AWG wire or up to 1,200 feet using 18AWG wire. For the connection back to the TC-M master station, the maximum distance is 210 feet with 22AWG wire or 495 feet with 18AWG wire. Proper gauge wire selection is crucial for maintaining signal integrity over these longer runs.

What's in the Box

• 1x Aiphone TB-AD10 Audio Door Adaptor
