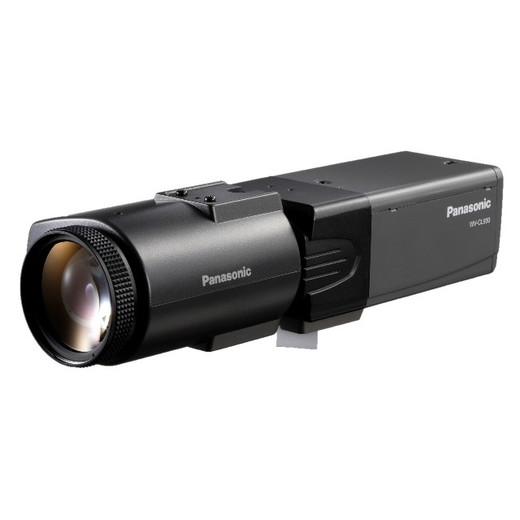

i-PRO WVCL930 1/2" CCD Day/Night IP Camera

i-PRO WVCL930 1/2" CCD Day/Night IP Camera

Overview

The WVCL930 is a 1/2 inch CCD camera purpose-built for round-the-clock fixed surveillance where low-light performance drives the design. At 0.09 lux (color mode) and 0.008 lux (B/W mode) with an F1.4 lens, it delivers usable imagery in near-darkness without external IR lighting—critical in retail corridors, warehouses, and perimeter monitoring where ambient light varies across day and night cycles. The compact 70 mm × 65 mm × 151 mm form factor fits tight wall-mount and ceiling-cavity installations common in existing retail and office infrastructure. IR cut filter switches automatically to boost sensitivity in monochrome mode, ensuring you don't sacrifice night-time detail for daytime color fidelity.

Key Capabilities

Dual resolution modes let you trade bandwidth against clarity: 480 TV lines (Normal mode) for constrained networks, or 540 TV lines typical (High mode) for evidence-grade detail. Built-in Video Motion Detection (VMD) triggers alerts locally without offloading to your VMS—valuable for unmanned facilities or shift-based monitoring where you need immediate notification of activity. Adaptive digital noise reduction (2D-DNR + 3D-DNR) cleans up shadow detail without washing out texture in low-light scenes. Electronic sensitivity enhancement (auto up to 32×, manual up to 128×) stretches usable gain when ambient light drops further. Auto Back Focus (ABF) eliminates focus-creep issues during installation and long-term operation, particularly important in variable-temperature warehouses or outdoor-adjacent spaces.

Power and Compatibility

The WVCL930 operates on 120V AC power (220–240V and 24V AC / 12V DC variants available as WV-CL930 and WV-CLR930 series). Confirm your facility voltage before ordering to select the correct model. Standard coaxial communication (WV-CL930 series) or optional RS-485 data control (WV-CLR930) integrates with any IP surveillance system supporting these standards. A C-mount adapter (included for NTSC) permits lens swaps. Optional varifocal (2×), 6× motorized, and 10× motorized zoom lenses are available separately, allowing focal-length adjustment on-site without re-installation trips.

What's in the Box

• Operating Instructions – 1 pc.
• AC Power Cord – 1 pc. (2 inch length)
• ALC Lens Connector (YFE4191J100) – 1 pc.
• C-mount adapter (NTSC only) – 1 pc.
