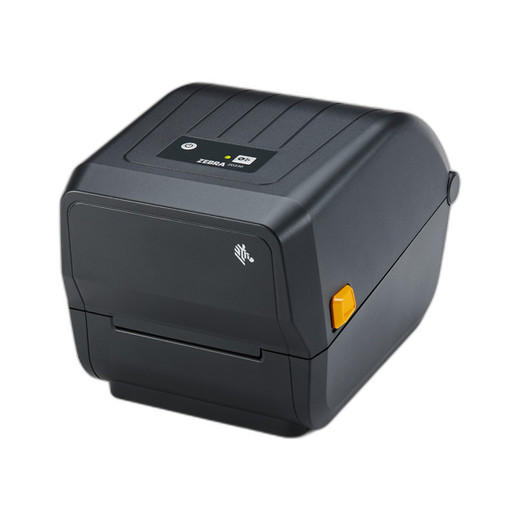

Zebra ZD23042-D11G00EZ Desktop Thermal Label Printer

Overview

The Zebra ZD23042-D11G00EZ is a compact, wired desktop thermal printer designed for high-volume label printing in warehouse, logistics, and distribution environments. Built on the proven ZD230 platform, this model delivers consistent 203 dpi print quality with native EZPL (Zebra's EPL2-compatible language) support, enabling straightforward integration into existing label design and warehouse management systems without additional software requirements.

Key Features

• 203 dpi Print Resolution: Produces sharp, scannable labels suitable for retail, shipping, compliance, and asset tracking applications.
• Standard EZPL Support: Native compatibility with Zebra's EZPL command language ensures rapid deployment and reduces development overhead for label template migration.
• Extended Label Capacity: Accommodates label lengths up to 39 inches (991 mm), enabling multi-label formats and compliance label printing in a single pass.
• Flexible Media Width: Supports roll or fanfold media from 1.00 inch to 4.4 inches (25.4 mm to 112 mm) wide, covering standard shipping labels, GHS compliance labels, and custom warehouse formats.
• Wired Ethernet Connectivity: Direct network connection via standard RJ-45 eliminates wireless latency and dependency on access point coverage, ideal for fixed dock and sorting stations.
• Comprehensive Barcode Support: Prints 1D and 2D symbologies including Code 128, Code 39, UPC, EAN, QR Code, Data Matrix, and PDF417—covering retail, logistics, GS1, and asset management standards.
• US Power Specification: Ships configured for North American 110–120V AC operation, eliminating regional power adapter requirements.
• Compact Desktop Form Factor: Fits standard warehouse counter and dock print station configurations without requiring dedicated floor space.

Integration & Compatibility

The ZD23042-D11G00EZ integrates seamlessly into Windows-based label design applications, warehouse management systems, and enterprise resource planning platforms that support EPL2 or raw socket printing. Direct Ethernet connection to a facility network allows centralized queue management and remote status monitoring. No USB driver installation is required for network-attached operation, simplifying IT deployment and reducing endpoint configuration burden.

Specification Summary

Maximum label length of 39.0 inches (991 mm) with media widths spanning 1.00 to 4.4 inches (25.4 to 112 mm) provides flexibility for mixed-format label runs. The 2D scan engine support enables secure barcode validation and chain-of-custody tracking. Print speed and thermal head specifications ensure reliable daily throughput in high-volume warehouse environments.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Zebra ZD23042-D11G00EZ in several warehouse consolidation and fulfillment projects, and it remains a reliable workhorse for fixed-location label printing. The native EZPL support eliminates the translation layer that can introduce timing issues on larger label batches, and the wired Ethernet connection is a real advantage in high-traffic dock environments where wireless interference or roaming delays can cascade across shipping deadlines.

Technical Highlights:

• 203 dpi Thermal Resolution: Delivers scan-engine-validated barcode clarity on standard 4x6 shipping labels and smaller GHS compliance formats without dithering artifacts.
• Extended 39-inch Label Support: Handles multi-SKU compliance and manifest label printing in a single pass, reducing label waste and jam incidents on smaller media widths.
• Full 1D/2D Barcode Symbology: QR, Data Matrix, PDF417, Code 128, Code 39, UPC, and EAN coverage aligns with GS1-128, retail, and parcel carrier standards without external encoding tools.

Deployment Considerations:

• Confirm network port availability on your dock switch; the ZD23042-D11G00EZ does not include WiFi or Bluetooth, so placement near an active Ethernet run is necessary.
• Validate that your label design software outputs EZPL or raw EPL2 commands; most modern WMS platforms do, but older legacy systems may require intermediate print server translation.

This printer is ideal for facilities that prioritize print reliability and network stability over mobility. If you're consolidating label printing across multiple docks or need centralized queue management, the ZD23042-D11G00EZ (often searched as ZD23042 D11G00EZ) pairs well with standard print server infrastructure and monitoring dashboards. Recommended for distribution centers and shipping hubs running 24/7 operations where downtime directly impacts service levels.
