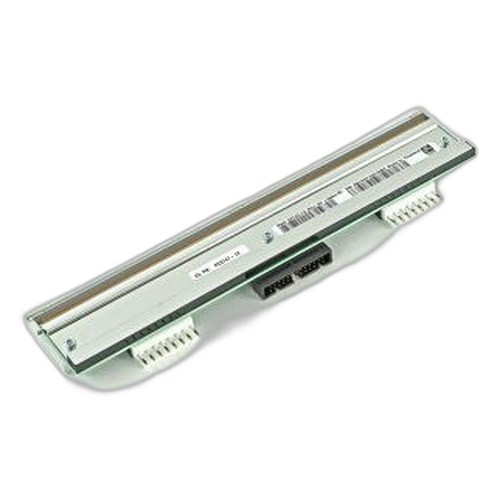

Zebra P1004237 300DPI Thermal Printhead
Overview
The Zebra P1004237 is a thermal transfer printhead engineered as a direct replacement for Zebra's 170XI4 and ZE500-6 series industrial label printers. This is a consumable component rated for millions of print cycles before degradation requires replacement. At 300 dots per inch (DPI), the P1004237 delivers the resolution necessary for barcode scanning, variable data printing, and text legibility on standard label substrates without the cost overhead of higher-density elements.
Key Features
- 300 DPI Print Resolution: Adequate for barcode barcodes (GS1-128, Code 128, QR codes), text, and graphics on labels and receipts; avoids the diminishing-return cost premium of 400+ DPI elements in warehouse and logistics workflows
- Thermal Transfer Technology: Uses ribbon-based printing to produce fade-resistant output on coated and uncoated label stocks, giving you control over substrate choice and ink durability vs. cost tradeoff
- Direct-Fit Compatibility: Plug-in replacement for 170XI4 and ZE500-6 printers with no firmware updates, chassis modification, or re-alignment required — swap and resume operation
- Wear Component Engineering: Designed for continuous operation in high-volume production; typical thermal printheads are rated for approximately 1–2 million print cycles depending on media and ribbon type — monitor cycle counts to avoid mid-shift failures
- Black Monochrome Element: Standard thermal element for single-color barcode and label output; not suitable for multi-color printing
- OEM Quality: Genuine Zebra replacement part manufactured to original equipment specifications, ensuring compatibility and performance consistency with your printer's thermal control electronics
Integration and Compatibility
The P1004237 is a consumable replacement component. Installation requires basic maintenance access to the printer — no external power, network, or firmware configuration. Proper printhead alignment is critical to maintain edge sharpness and barcode scan reliability; consult your printer's service documentation for alignment procedures after installation. Organizations running 170XI4 or ZE500-6 printers should establish a stock of replacement printheads based on monthly print cycle volume to avoid production downtime. Thermal printhead lifespan varies with media abrasiveness and ribbon type; silicone-coated labels wear elements faster than wax-ribbon applications on smooth media.
When to Choose a Different Approach
If your application requires resolution above 300 DPI — such as ultra-dense 2D codes, pharmaceutical track-and-trace labeling, or small-font variable data — consider a higher-resolution variant within the Zebra thermal printer family. If you are transitioning from thermal transfer to direct thermal printing (which eliminates ribbon consumables), you will need a printer redesign, not just a printhead swap. The P1004237 is strictly a thermal transfer element and cannot be used in direct thermal printers.
Frequently Asked Questions
Q: Is the P1004237 compatible with any Zebra printer models other than 170XI4 and ZE500-6?
A: No. The P1004237 is engineered specifically for the 170XI4 and ZE500-6 series. Using an incorrect printhead model risks damaging the printer's thermal control circuit and voiding warranty. Always verify the correct part number for your printer model before ordering.
Q: How do I know when the printhead needs replacement?
A: Monitor print cycle counts (available in printer logs) and watch for degraded print quality: fading edges, horizontal streaking, or gaps in barcode bars. Most thermal printheads perform reliably until 1–2 million cycles; replace proactively before quality degradation affects scan rates.
Q: Can the P1004237 work with direct thermal media, or does it require ribbon?
A: The P1004237 is a thermal transfer element and requires ribbon cartridges. It will not produce output on direct thermal media. If you need direct thermal capability, a different printer and printhead assembly are required.
Q: What ribbon types are compatible with the P1004237?
A: Standard thermal transfer ribbons used by Zebra 170XI4 and ZE500-6 printers (wax, wax-resin, and resin formulations) are compatible. Consult your printer documentation for approved ribbon part numbers to ensure optimal element lifespan and print quality.
Q: What is the typical warranty on a replacement printhead?
A: Genuine Zebra replacement parts are supplied with standard OEM distributor warranty terms. Warranty does not cover wear-related degradation or damage from improper installation; it covers defects in manufacture only.
Q: Should I replace the platen roller at the same time as the printhead?
A: Platen roller replacement is independent of printhead replacement. If the platen shows wear (glazing, scoring), replace it to prevent print quality loss. Check the platen condition when installing a new printhead to avoid premature element wear.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Zebra P1004237 is a straightforward thermal transfer printhead replacement for organizations operating 170XI4 or ZE500-6 printers in production. When sourcing a replacement printhead, matching the correct model number to your printer series is non-negotiable; the P1004237 is the specified component for these two platforms. At 300 DPI, this printhead delivers adequate resolution for standard barcode and label applications without inflating consumable costs.
Technical Highlights:
- 300 DPI Resolution: Sufficient for barcode scanning, variable data, and text legibility on standard label stocks; eliminates the cost premium of 400+ DPI elements unless you are printing pharmaceutical regulatory codes or ultra-dense 2D matrices
- Thermal Transfer Method: Ribbon-based printing ensures durable output and broad substrate compatibility across coated and uncoated label media; gives you flexibility in material and ink durability selection
- Plug-In Replacement: No firmware updates, hardware modification, or re-calibration required; installation is a maintenance task, not an engineering project
Deployment Considerations:
- Thermal printheads are wear consumables; track print cycle counts and schedule replacement proactively to avoid mid-shift downtime. Cycles vary with media abrasiveness and ribbon formulation (wax, wax-resin, resin); silicone-coated or textured labels accelerate wear
- Always align the printhead carefully after installation — misalignment causes edge fading and horizontal streaking, which degrades barcode scan reliability and increases reject rates in automated sorting workflows
- Maintain a stock buffer of replacement printheads based on monthly production volume; lead times on OEM parts are predictable, but mid-production failures are costly
This element is the right choice for high-volume warehouse, logistics, and retail label printing where barcode reliability and cost-per-page matter more than ultra-fine print density. If you are running a 170XI4 or ZE500-6, the P1004237 is the only correct replacement path.
