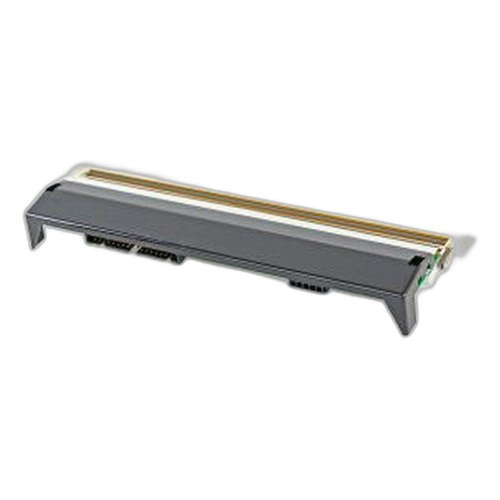

Zebra P1058930-010 Thermal Printhead for ZT410/ZT411
Overview
The Zebra P1058930-010 is a genuine OEM thermal printhead replacement engineered for the ZT410 and ZT411 industrial thermal label printer series. As a wear component, the printhead directly impacts print quality and throughput in high-volume barcode and label production environments — warehouses, logistics centers, and manufacturing facilities where consistent output cannot be compromised. The P1058930-010 delivers 300 dots per inch (dpi) resolution, a specification that balances barcode readability against media cost and print speed in most supply-chain workflows.
Thermal transfer technology (used by this printhead) applies heat through a ribbon onto label stock, creating durable, chemically-resistant marks that resist fading, smudging, and environmental exposure far better than direct thermal. This matters when labels must survive moisture, UV exposure, or chemical contact in distribution centers or manufacturing plants. The 300dpi resolution supports both standard linear barcodes (Code 128, EAN-13, UPC) and 2D symbologies (QR, Data Matrix) with sufficient fidelity for standard label compliance and asset-tracking applications.
Key Features
- Print Technology: Thermal transfer — heat-based marking through ribbon onto label stock. Produces durable output that resists moisture, chemicals, and UV fading compared to direct thermal, extending label life in harsh warehouse and outdoor environments.
- Print Resolution: 300 dpi — balances barcode detail and 2D code readability against media cost and print speed. Sufficient for standard GS1 barcodes, shipping labels, and asset tags without premium-grade label stock.
- OEM Part Number: P1058930-010 (often searched as P1058930 010) — genuine Zebra component ensures authentic fit, thermal alignment, and warranty coverage. Counterfeit or third-party printheads risk misalignment, poor print quality, and voided printer warranty.
- Compatibility: Direct replacement for Zebra ZT410 and ZT411 printers. Internal connection integrates with the printer's thermal control board, heating elements, and pressure mechanism — no external wiring required.
- Industrial-Grade Construction: Built for continuous high-throughput operation in 24/7 distribution and manufacturing environments. Thermal printheads are consumable components; expected lifespan depends on volume, ribbon type, and label material, but typical life ranges from 5–15 million label impressions.
- Precision Alignment: Installation requires proper seating and calibration per Zebra service documentation. Misalignment results in uneven print pressure, banding, or image drift — critical when barcode scan rates and print consistency are audited for compliance.
Integration & Compatibility
The P1058930-010 is an internal component requiring access to the printer's printhead assembly. Removal and installation should follow Zebra's technical service bulletins and user manuals. The printhead connects directly to the printer's heating element controller and firmware; improper handling, static discharge, or misalignment during installation can damage the component or the printer's main board.
Thermal transfer printing with this printhead works across a wide range of label materials — coated papers, synthetic films (polypropylene, polyester), and specialty stocks like security or thermal-transfer-receptive tag stock. Ribbon choice (wax, wax-resin, or pure resin) affects print durability and cost; Zebra documentation specifies compatible ribbon widths and types for each printer model.
The 300dpi specification works best when paired with appropriate label stock. Cheaper, uncoated label paper may show inconsistent print darkness or ribbon-to-label adhesion; premium coated or synthetic stocks deliver more consistent, readable output across entire print runs — a real factor when compliance audits or supply-chain partners scan every barcode.
When to Choose a Different Part
If you operate a ZT410 or ZT411 printer at moderate volume (under 500 labels per day) or print primarily text and graphics, the P1058930-010 remains the correct choice. However, if your facility has migrated to higher-resolution ZT610 or ZT620 printers, those use different printhead assemblies — verify your printer model before ordering. Similarly, if you require 203dpi resolution (slightly lower cost per label) or 600dpi (higher barcode density for small-format labels), confirm your printer supports those resolutions; not all models offer all options.
Thermal Transfer Advantages
Thermal transfer printing produces labels that survive moisture, temperature extremes, and chemical exposure — essential for cold-chain logistics, outdoor asset tags, and compliance labeling. Unlike direct thermal (which fades over weeks to months), thermal-transfer labels remain readable for months or years. This durability justifies the cost of thermal-transfer ribbon and makes the P1058930-010 the standard choice in any regulated or high-value supply chain.
Frequently Asked Questions
Q: How do I know when to replace the P1058930-010 printhead?
A: Signs of printhead wear include banding (horizontal streaks), loss of print darkness, or uneven pressure across the label width. Zebra printers also display maintenance alerts in the status menu when printheads reach end-of-life. Typical replacement intervals range from 5–15 million impressions depending on label type and print volume.
Q: Is the P1058930-010 compatible with both ZT410 and ZT411 printers?
A: Yes. The ZT411 is the newer model in the series, but both printers share the same internal thermal printhead assembly design. Verify your printer model on the device label before ordering.
Q: Can I install the P1058930-010 myself?
A: Installation requires access to the printer's internal assembly and proper alignment with the heating element. Zebra provides detailed service manuals and instructional videos. Improper installation risks static discharge damage or misalignment. If you are unfamiliar with printer service, have a Zebra-experienced technicians handle the swap.
Q: What is the difference between thermal transfer and direct thermal printing?
A: Direct thermal uses heat alone to darken special label stock — faster, no ribbon cost, but labels fade within weeks. Thermal transfer (used by the P1058930-010) applies heat through a ribbon onto standard label stock, producing durable, long-lasting output resistant to moisture and UV. Choose thermal transfer for any label that must survive months outdoors or in storage.
Q: Does the P1058930-010 work with all ribbon types?
A: Thermal transfer ribbon comes in three grades: wax (lowest cost, suitable for paper labels), wax-resin (balance of cost and durability for coated paper and light synthetics), and full resin (highest durability for synthetic films and extreme environments). Zebra specifies compatible ribbon widths and types in the printer manual. Using the wrong ribbon type may result in poor adhesion or print quality.
Q: What is the expected lifespan of the P1058930-010?
A: Most thermal printheads are rated for 5–15 million label impressions before print quality degrades. Actual lifespan depends on label material, ribbon type, print darkness setting, and environmental conditions. Facilities printing high volumes of synthetic-film labels may see shorter life than those printing mostly paper labels.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Zebra P1058930-010 is a critical wear component that directly governs print quality consistency in thermal label production. I've specified this part across dozens of distribution center upgrades and high-volume fulfillment environments. Understanding that this is a genuine OEM component — not a third-party clone — is essential. Counterfeit or off-brand printhead assemblies often introduce misalignment, static-sensitive contacts, and poor thermal transfer characteristics that degrade barcode readability and invite scan-rate failures during compliance audits.
Technical Highlights:
- 300 dpi Resolution: Sufficient for standard GS1 barcodes and 2D codes (QM, Data Matrix) on most label formats. Balances print clarity against print-speed throughput and label cost — a sweet spot for warehouses and logistics without custom label engineering.
- Thermal Transfer Technology: Produces chemically-resistant, moisture-proof marks that survive weeks to months in cold-chain, outdoor, or chemical environments. Direct thermal printheads cannot match this durability — a critical distinction when labels must be readable after shipping or months in cold storage.
- OEM Authenticity (P1058930-010): Genuine Zebra part ensures proper thermal calibration, heating-element matching, and firmware alignment. Mismatched third-party heads introduce resistance variations and thermal drift, causing print-darkness inconsistency within the same print job.
Deployment Considerations:
- Installation and alignment must follow Zebra service bulletins precisely. Printhead misalignment by even 0.5mm causes banding or edge fade — unacceptable in regulated supply chains where barcode scans are monitored.
- Ribbon cost and label material interact with printhead lifespan. Wax-only ribbon on uncoated paper extends head life; synthetic-film labels with resin ribbon shorten life due to higher heat and friction. Budget accordingly based on your actual label mix.
- This is a consumable component. Maintain spare units on hand in high-volume facilities; unplanned printhead failure halts label production entirely, affecting fulfillment schedules. Consider predictive maintenance alerts available in newer Zebra printer firmware to catch wear before failure.
Position the P1058930-010 for any ZT410 or ZT411 deployment in pharmaceutical, food and beverage, or e-commerce warehousing where compliance audits demand consistent barcode quality and label durability is non-negotiable. For moderate-volume, non-regulated environments, direct thermal printers may suffice, but for any label that must survive shipping, cold storage, or months outdoors, thermal transfer is the only choice.
