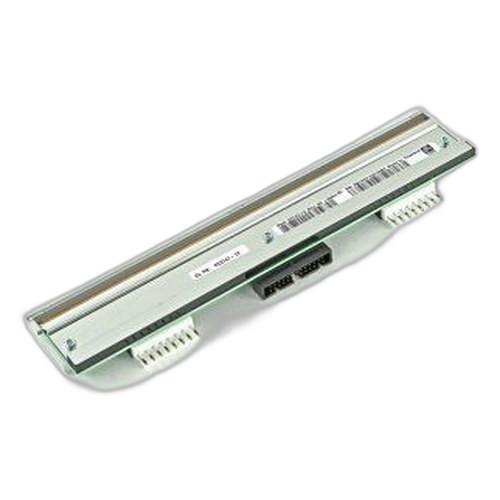

Zebra P1004239 220XI4 300DPI Printhead
Overview
The P1004239 is a genuine Zebra replacement printhead assembly engineered specifically for the 220XI4 industrial thermal printer platform. Operating at 300 dots per inch (DPI), this printhead delivers the barcode clarity and durability required in high-volume warehouse, logistics, manufacturing, and pharmaceutical labeling environments. As an OEM component manufactured to Zebra specifications, the P1004239 maintains full compatibility with 220XI4 series units and integrates seamlessly into your existing thermal printing infrastructure. Unlike third-party alternatives, OEM printheads preserve thermal element precision and warranty coverage when installed by qualified technicians.
Key Features
- 300 DPI Resolution: Produces barcode scans with the clarity and contrast GS1, pharmaceutical tracking, and small-font logistics labels demand. At this resolution, your barcode readers will consistently capture first-pass scans without rejects, reducing label reprints and line slowdowns.
- Thermal Transfer Capable: Ribbon-based printing supports durable labels on synthetic media, coated papers, and polyester stocks. Ribbon mode is ideal when label lifespan matters — warehouses exposed to moisture, chemicals, or rough handling.
- Direct Thermal Capable: Heat-sensitive media eliminates ribbon cost and complexity, cutting consumables expense by roughly 30–40% per label. Trade-off: direct thermal labels fade in sunlight or high-temperature storage after 6–12 months, so reserve this mode for short-dwell logistics labels.
- OEM Manufacturing Standards: Built to Zebra tolerances for thermal element performance, platen alignment, and media advance precision. Non-OEM alternatives risk misalignment, poor print contrast, and warranty voidance — a costly gamble in 24/7 operations.
- Field-Replaceable Assembly: Designed for quick swap without specialized tooling. Printhead change requires only printer power-down, access panel removal, and careful insertion — typically 10–15 minutes. This minimizes production interruption during routine thermal element maintenance.
- Industrial Durability Rating: Engineered for continuous production cycles across 12–24 month service life under standard warehouse use. Actual lifespan depends on media type and cleaning discipline — abrasive direct thermal stock or adhesive residue accelerates wear and thermal element degradation.
Thermal Printing Modes & Media Selection
The P1004239 supports both thermal transfer and direct thermal printing, which means your media choice directly impacts cost, durability, and printhead life. Thermal transfer (ribbon-based) output resists fading, moisture, and temperature swings — appropriate for outdoor shipping labels, pharmaceutical traceability, and long-term warehouse storage. Direct thermal skips the ribbon and uses heat-sensitive media, reducing per-label cost but limiting label lifespan to months rather than years. Abrasive media compounds (common in cheap direct thermal stock) accelerate printhead wear and can reduce service intervals to 12 months or less. Work with your media supplier to balance cost and durability; premium-grade direct thermal media extends thermal element life by 20–30% versus discount alternatives.
Compatibility & Installation
The P1004239 is a drop-in replacement for OEM 220XI4 series printheads only. Do not attempt installation on other Zebra models (ZT series, S series, or GK series printers) — mechanical fit and electrical interfaces are platform-specific. Installation requires basic technician skill: power off the printer, open the carriage access panel, remove the old printhead assembly, align the new P1004239 into the carriage slot, and secure per Zebra's field-service guide. Ensure the platen roller (the rubber cylinder opposite the printhead) is clean before reinstalling; dust or adhesive on the platen reduces pressure uniformity and causes print quality loss. Many IT and logistics teams schedule printhead replacement during planned maintenance windows (monthly or quarterly) to avoid production disruption. Keep one spare on hand for immediate swap if thermal element failure occurs during peak shipping periods.
Maintenance & Longevity
Printhead life depends on three factors: production volume, media quality, and cleaning discipline. At 300 DPI, the thermal element on the P1004239 contains approximately 2,400 heating dots across the print width — each cycle generates heat and wear. Monthly cleaning with an approved cleaning pen or Zebra-specified solvent removes adhesive buildup and media lint, extending service life by 15–25%. Skip cleaning, and residue insulates the thermal dots, forcing higher voltage to maintain print temperature, which accelerates degradation. If you print on abrasive materials (uncoated kraft, rough thermal paper), replace the printhead every 12 months. Premium media and consistent cleaning can stretch intervals to 18–24 months.
Frequently Asked Questions
Q: Is the P1004239 compatible with my Zebra 220XI4 printer?
A: Yes, the P1004239 is the OEM printhead assembly for the Zebra 220XI4 series. Verify your printer model number before ordering — it is not compatible with other Zebra thermal printer lines.
Q: What is the typical lifespan of the P1004239 printhead?
A: Service life ranges from 12–24 months depending on production volume, media type, and maintenance. Direct thermal on abrasive media shortens lifespan to 12 months; thermal transfer on premium media extends it to 18–24 months. Regular cleaning (monthly) adds 15–25% to service intervals.
Q: Can I use third-party or rebuilt printheads instead of OEM?
A: Third-party printheads void your Zebra warranty and risk misalignment, poor contrast, and shortened lifespan. OEM components guarantee thermal element precision and compatibility. For cost-critical deployments, budget for OEM replacement cycles rather than risking print quality and downtime.
Q: What cleaning materials should I use on the P1004239?
A: Use only Zebra-approved cleaning pens or specified solvents (typically isopropyl alcohol). Do not use abrasive materials, paper towels, or unapproved chemicals — they damage the thermal dots and coating. Monthly cleaning maintains print contrast and extends thermal element life.
Q: Is thermal transfer or direct thermal printing better for my warehouse labels?
A: Thermal transfer (ribbon-based) is more durable and fade-resistant — use it for long-term storage, outdoor exposure, or pharmaceutical traceability. Direct thermal is cheaper per label but fades within 6–12 months — reserve it for short-dwell logistics labels. Premium direct thermal media costs slightly more but extends printhead life and label durability.
Q: How long does printhead installation take, and do I need a technician?
A: Field replacement typically takes 10–15 minutes for a qualified technician. Power down the printer, open the access panel, remove the old assembly, insert the new P1004239, and verify alignment. No specialized tools required, but refer to Zebra's field-service documentation to ensure platen alignment and electrical fit.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The P1004239 is a field-replaceable thermal element engineered for the 220XI4 platform, and it's the decision point between uptime and cost creep. At 300 DPI, this printhead delivers barcode contrast that won't come back to haunt you in scan-rate audits — a real issue with degraded or third-party alternatives running close to thermal limits. The key insight: lifespan is not fixed. It depends on media choice and cleaning discipline, so buying spare printheads is actually a maintenance expense, not an afterthought.
Technical Highlights:
- 300 DPI Thermal Element: Sharp enough for GS1 compliance and pharmaceutical tracking codes. Degradation becomes visible around month 18–20 if media is abrasive; monthly cleaning extends this to 24 months. Skip cleaning, and you'll lose contrast in 12–15 months.
- Dual-Mode Printing (Thermal Transfer + Direct Thermal): Thermal transfer costs roughly 30–40% more per label but survives moisture and temperature swings for 2+ years. Direct thermal fades in 6–12 months but cuts consumables cost — choose based on label dwell time, not just budget. On abrasive direct thermal media, plan for 12-month printhead intervals; on thermal transfer, stretch to 18–24 months.
- OEM Manufacturing Precision: Platen alignment and thermal dot density are calibrated to Zebra's carriage tolerances. Non-OEM alternatives drift in alignment over time, causing uneven pressure and left-edge print fade — a slow degradation you'll notice in month 8–10 and regret not catching earlier.
Deployment Considerations:
- Plan for replacement every 12–24 months. High-volume sites (5,000+ labels/day) should stock two spares. A thermal element failure during peak shipping is an expensive downtime — have a swap ready.
- Media quality is non-negotiable. Cheap direct thermal stock (uncoated kraft, loose adhesive) accelerates wear and degrades contrast faster than premium media. The printhead cost difference is small versus the cost of line downtime; invest in media durability.
- Cleaning discipline — monthly swabs with Zebra-approved solvent — is the single biggest lever for extending service intervals. Skip it, and you're burning through printheads on a 12-month cycle. Do it, and you hit 20–24 months consistently.
Position the P1004239 as a planned replacement component in high-volume 220XI4 deployments — warehouses, 3PLs, and manufacturing plants running 24/7 label output. For intermittent or low-volume printing (under 1,000 labels/day), a single printhead will last 24+ months and pay for itself against downtime risk. For high-volume sites, factor spare printheads into annual consumables budgets, not capital — it's a maintenance cost, and budgeting for it upfront avoids surprises during peak season.
