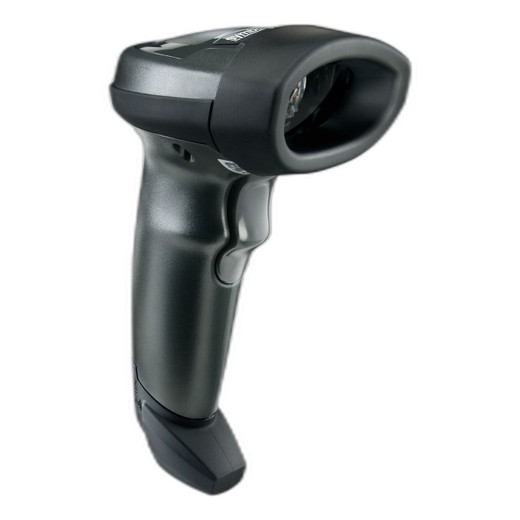

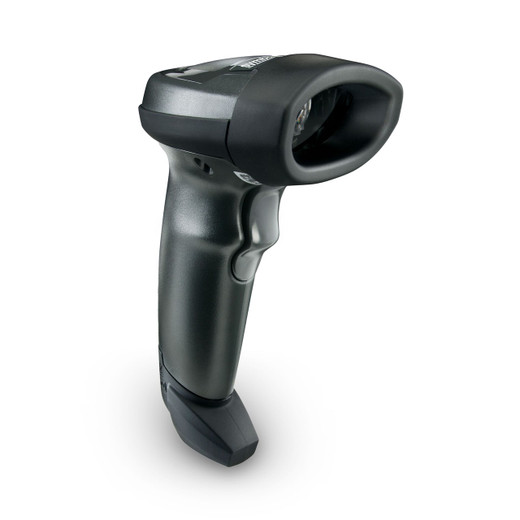

Zebra LI2208-SR7U2100SGW Wired Handheld Barcode Scanner
Overview
The Zebra LI2208-SR7U2100SGW is a wired linear barcode scanner engineered for high-volume retail point-of-sale and warehouse scanning operations. This scanner reads 1D symbologies including Code 39, UPC, and EAN at 547 scans per second—meaning you can process a full transaction cycle without queue buildup in a busy checkout lane or warehouse staging area. The fixed USB connection eliminates battery maintenance and ensures uninterrupted data flow to your POS or warehouse management system. This is a straightforward tool: no wireless complexity, no firmware quirks, just reliable barcode capture.
Key Features
- 547 Scans Per Second: Throughput matters in retail and logistics. At this scan rate, your operators won't hit the scanner's ceiling during peak transactions or rapid bin-picking cycles. A slower scanner becomes a bottleneck; this one stays ahead of hand speed.
- 1D Linear Imager Engine: Optimized for standard barcodes (Code 39, UPC, EAN, and related symbologies). If you need 2D capture (QR, PDF417), you'll need a different model. This imager is purpose-built for linear codes, which means faster processing and fewer false reads on worn or damaged labels.
- IP42 Environmental Rating: Dust and splash protection keep the scanner functional in warehouse conditions—spilled water from cleaning stations or product moisture won't disable it. IP42 is not submersion-safe and won't survive heavy washdown; it's baseline ruggedness for dry indoor logistics.
- 1.8 Meter Drop Survival: Handheld tools get dropped. A 1.8m (6 ft) concrete drop and continued operation mean fewer replacement costs and downtime in high-wear environments. This is industrial-grade durability, not consumer-grade.
- USB Wired Connection: Direct USB integration to your POS terminal or computer eliminates pairing, range, and battery concerns. Power and data travel one cable. If mobility across a large warehouse floor is critical, consider a wireless or batch-capable model instead.
- Desktop Stand Included: The kit ships with a stand for hands-free fixed-position scanning (e.g., stationary checkout counter, receiving dock). Operator can free both hands for bagging or staging inventory while the scanner rests in the stand.
Integration & Compatibility
The LI2208-SR7U2100SGW connects to any system accepting standard USB Human Interface Device (HID) input: retail POS systems, warehouse management software, inventory platforms, and generic barcode capture applications. No driver installation required on most Windows and Linux systems. Ensure your host device has an available USB port or a powered hub if you're running multiple peripherals.
What's in the Box
- Zebra LI2208-SR Handheld Barcode Scanner
- USB Cable
- Desktop Stand
When to Choose a Different Model
If your operation requires 2D barcode capture (QR codes, PDF417, Data Matrix), the LI2208-SR is not suitable—you'll need a Zebra 2D imager scanner from the DS or LI3600 families. If operators need scanning mobility across a large warehouse floor without a tether, evaluate Zebra's wireless scanner lineup. If your environment involves washdowns or submersion, you'll need IP67 minimum, which is outside this product's rating.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Zebra LI2208-SR7U2100SGW (often searched as LI2208 SR7U2100SGW) is a no-frills, high-throughput workhorse for environments where you need fast 1D scanning, zero wireless overhead, and a tool that survives being dropped on concrete. The 547 scans-per-second throughput is the real differentiator—it means your checkout operators or warehouse pickers won't be throttled by a slow scanner.
Technical Highlights:
- 547 Scans/Second: Directly correlates to transaction throughput. A 300 scan/s competitor will create visible delays in peak retail hours; this scanner keeps pace with realistic hand speed and checkout queue demands.
- IP42 Rating + 1.8m Drop Survival: Combined, these specs mean the scanner will tolerate spilled water and occasional drops without immediate failure. Real-world retail and warehouse drops happen; this device is rated for it. However, IP42 is not food-safe or heavy-washdown capable—dusty warehouse shelves are fine, cleaning-spray environments are not.
- USB Wired Connectivity: No battery management, no pairing latency, no range limitations. The trade-off is tether length—if your scanning zone is a 15-foot checkout counter, USB works perfectly. If you need mobile scanning across a 50,000 sq ft warehouse, wired becomes impractical.
Deployment Considerations:
- This scanner is 1D only—it will not read QR codes or modern 2D symbologies. If your supply chain is migrating to 2D encoding, this is a dead end; plan for a 2D-capable model instead.
- USB cable length is a hard constraint. Standard cables are 10–15 feet; longer runs require active hubs or custom cabling. Map your scanning positions and verify USB reach before deployment.
Deploy the LI2208-SR7U2100SGW in fixed-position retail checkout, warehouse receiving docks, or inventory staging areas where operators return to the same scanning station repeatedly. It's also suitable for cart-based or cart-mounted configurations where the scanner stays physically proximate to a POS terminal or industrial tablet. Skip it for mobile floor scanning or 2D barcode environments.
Frequently Asked Questions
Q: Can the LI2208-SR7U2100SGW read 2D barcodes like QR codes?
A: No. This is a 1D linear imager designed exclusively for Code 39, UPC, EAN, and similar linear symbologies. For QR, PDF417, or Data Matrix codes, you'll need a 2D-capable Zebra scanner from the DS or LI3600 family.
Q: What is the maximum USB cable length I can use with this scanner?
A: Standard USB cables are typically 10–15 feet. Longer runs require powered USB hubs or custom cabling. The kit includes a cable; verify its length matches your scanning counter layout before purchase.
Q: Is the LI2208-SR7U2100SGW suitable for outdoor or washdown environments?
A: No. The IP42 rating protects against dust and splash but not submersion or high-pressure washdown. For food processing, wet environments, or heavy cleaning protocols, specify IP67 or higher.
Q: Does this scanner require driver installation on Windows or Mac?
A: Most modern Windows and Mac systems recognize the LI2208-SR as a standard USB HID device without driver installation. However, verify compatibility with your specific OS version and any custom POS software before deployment.
Q: What happens if I drop the LI2208-SR7U2100SGW?
A: The scanner is rated to survive 1.8-meter (6-foot) drops to concrete. This is a tested specification, not a guarantee of indefinite operation; inspect the device after any drop and test barcode reads before returning to production.
Q: Can the scanner be mounted on an articulated arm or wall bracket instead of the desktop stand?
A: The kit includes a desktop stand. Third-party mounts designed for standard handheld scanners may be compatible, but verify mounting geometry and USB cable routing before ordering custom brackets.
