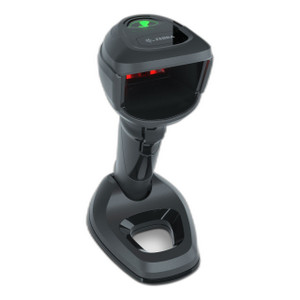

Zebra DS9908-HLWU2105AZU 2D Handheld Barcode Scanner
Overview
The Zebra DS9908-HLWU2105AZU is a wired 2D handheld barcode scanner designed for warehouse, logistics, and point-of-sale environments. This model combines proven 2D imaging technology with rugged construction to deliver reliable barcode capture in demanding operational settings. The DS9908-HLWU2105AZU features an IP52 rating and 1.5-meter drop specification, making it suitable for mobile scanning applications where durability is essential.
Key Features
- 2D Imaging Engine: Advanced 2D imager captures QR codes, Data Matrix, PDF417, Code 128, Code 39, UPC, and EAN symbologies in a single scan pass
- Wired Connectivity: Standard USB connection ensures reliable data transmission and eliminates wireless interference concerns in high-density environments
- IP52 Dust and Water Resistance: Rated IP52 for protection against dust ingress and low-pressure water jets, suitable for indoor warehouse and retail operations
- 1.5-Meter Drop Tolerance: Engineered to survive accidental drops from 1.5 meters to concrete, reducing replacement costs and downtime in fast-paced operations
- Multi-Symbology Support: Reads 1D barcode standards (Code 128, Code 39, UPC, EAN) and 2D matrix codes (QR, Data Matrix, PDF417) without configuration changes
- Alpine White Finish: Professional white housing designed for retail point-of-sale and logistics environments
- North America-Focused Design: Optimized for North American frequency and regulatory requirements
Application Suitability
The DS9908-HLWU2105AZU is well-suited for warehouse receiving, inventory management, retail point-of-sale, and light-duty logistics scanning where users transition between fixed workstations and mobile scanning tasks. The wired connection model eliminates the need for wireless infrastructure provisioning while the 2D engine supports both traditional linear barcodes and complex 2D codes used in modern supply chain tracking. IP52 protection enables operation in environments with occasional liquid exposure, such as cold storage or high-humidity warehouses.
Operational Considerations
Organizations deploying the DS9908-HLWU2105AZU should plan for adequate cable routing and USB hub management in multi-scanner deployments. The wired architecture provides consistent power and data connectivity without battery management overhead, though operators must remain within cable reach of the host device or docking station. The 1.5-meter drop rating applies to drops onto concrete surfaces; impacts on harder surfaces or at angles may produce different results. IP52 rating does not provide full submersion protection; users should implement protective procedures to prevent sustained water exposure.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Zebra DS9908-HLWU2105AZU during several point-of-sale and warehouse modernization planning cycles. This wired 2D scanner delivers straightforward symbology coverage without the complexity of wireless infrastructure. The combination of USB connectivity, IP52 dust/water resistance, and 1.5-meter drop tolerance makes it a practical fit for retail and indoor logistics environments where operational durability matters more than mobility.
Technical Highlights:
- 2D Image Capture: The 2D imager on the DS9908-HLWU2105AZU captures QR codes, Data Matrix, and PDF417 alongside standard linear codes—valuable for cross-industry supply chain interoperability without scanner swaps
- Wired Reliability: USB connection eliminates battery maintenance, wireless pairing overhead, and range limitations; ideal for fixed workstations and desk-mounted scanning stations
- Drop and Moisture Resilience: IP52 rating and 1.5m drop spec indicate this scanner can absorb the impact of typical warehouse or retail floor drops; outdoor and wet-environment users should select higher-rated alternatives
Deployment Considerations:
- Plan cable management infrastructure upfront—wired models require adequate USB cable routing and potentially powered hubs for multi-scanner sites
- The IP52 rating handles incidental splash and dust but does not support continuous outdoor use or full immersion; implement drying procedures after high-moisture shifts
- Validate barcode print quality and symbology mix in your environment before full deployment; 2D scanners are sensitive to label contrast and print definition
For organizations standardizing on wired infrastructure and requiring multi-symbology support without wireless overhead, the DS9908-HLWU2105AZU delivers reliable daily-use durability and scanning capability at a cost-effective deployment model.
