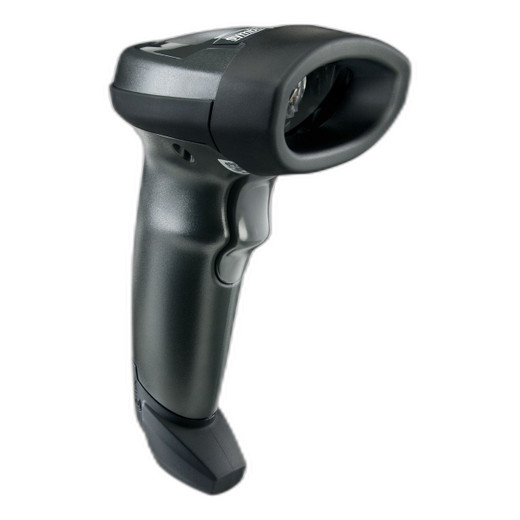

Zebra LI2208-SR7U2100AZW 1D Wired Handheld Barcode Scanner
Overview
The Zebra LI2208-SR7U2100AZW is a wired handheld 1D linear imager scanner built for point-of-sale, retail checkout, and light warehouse environments where USB connectivity is available and wireless overhead must be eliminated. USB cable integration removes battery maintenance cycles and wireless pairing complexity — meaning technicians configure it once and operators use it without device management overhead. The LI2208-SR7U2100AZW (often searched as LI2208 SR7U2100AZW) is a direct-attach solution for fixed transaction terminals and service desks.
Key Features
- 1D Linear Imager Engine: Captures Code 39, UPC, and EAN symbologies at 547 scans per second — fast enough for high-velocity checkout lanes without scan-rate bottlenecks during peak traffic.
- IP42 Environmental Rating: Resists dust and light splash — adequate for retail counters and service desks where occasional water contact occurs (e.g., beverage spills, wet hands). Not rated for submersion or sustained washdown environments; if you need washdown-grade durability, specify an IP65 or higher model from the barcode scanners portfolio.
- 1.8m Drop Tolerance to Concrete: Survives accidental floor drops from counter height without field repair — a practical resilience threshold for busy retail floors where handling damage is common.
- Single-Pass Scan Mode: Reads barcode orientation in one direction without requiring operator manipulation — reduces training time and scan failures on cluttered or partially occluded labels.
- USB Wired Connection: Eliminates battery charging schedules, wireless frequency conflicts, and Bluetooth pairing maintenance. Power and data flow through a single USB cable, simplifying desk-side installation and reducing IT touchpoints for device re-provisioning.
- Black Finish: Blends with standard retail terminal hardware and POS enclosures without cosmetic mismatches in customer-facing checkout areas.
Deployment Context
Deploy the LI2208-SR7U2100AZW at fixed checkout stations, customer service desks, returns counters, and transaction terminals where the scanner remains tethered to a USB port. Wired architecture is ideal for high-volume retail locations where scanner availability is paramount and battery failures cannot interrupt operations. Avoid mobile warehouse picking or roaming inventory tasks — those require cordless handheld or mobile computer integrations.
The IP42 rating handles typical retail spills and dust but does not provide protection against extended moisture exposure or aggressive washdown. Ensure mounting keeps the scanner away from direct water jets, ice machines, or open-air receiving docks.
Integration Considerations
The LI2208-SR7U2100AZW integrates with any POS system or enterprise barcode capture platform that accepts USB keyboard-wedge input or standard HID (Human Interface Device) protocol. No special drivers or SDK integration is required for most point-of-sale terminals. Verify with your system integrator that your legacy POS software recognizes barcode data as keyboard input; some older standalone systems may require a different scanner interface standard.
What's in the Box
- Zebra LI2208-SR handheld scanner
- USB cable
When to Choose a Different Model
If you need cordless operation and battery convenience, consider a wireless variant within the Zebra handheld scanner family. If your environment requires IP65 or higher protection (wet rooms, food processing, outdoor receiving), specify a ruggedized industrial scanner with sealed housing. For 2D barcode capability (QR, Data Matrix, PDF417), evaluate a Zebra 2D imager model instead of this 1D-only device.
Frequently Asked Questions
Q: Is the LI2208-SR7U2100AZW suitable for warehouse pick-to-light operations?
A: No. The wired USB connection restricts the scanner to stationary checkouts and service desks. Warehouse picking requires either a cordless handheld scanner or a mobile computer with integrated barcode scanning.
Q: What symbologies does the LI2208-SR7U2100AZW read?
A: Code 39, UPC, and EAN. If your application requires 2D symbologies (QR, PDF417, Data Matrix), this 1D-only model is not compatible — upgrade to a 2D imager variant.
Q: Can the LI2208-SR7U2100AZW integrate with my existing POS terminal without custom software?
A: Yes, provided your POS system accepts USB keyboard-wedge or HID input. No drivers or special integration is required for most modern retail terminals. Contact your integrator to confirm compatibility with legacy POS platforms.
Q: Is the LI2208-SR7U2100AZW safe for outdoor or wet-environment deployment?
A: No. The IP42 rating handles light dust and occasional splash but not sustained moisture, rain, or washdown. Outdoor or high-moisture applications require an IP65-rated industrial scanner.
Q: How fast can the LI2208-SR7U2100AZW scan barcodes?
A: 547 scans per second, which is sufficient for high-velocity checkout lanes without throughput delays during peak trading hours.
Q: Can I use the LI2208-SR7U2100AZW as a mobile scanner?
A: No. It is wired via USB and designed for stationary checkout and service-desk deployment. Mobile or roaming barcode scanning requires a cordless or mobile-computer-integrated alternative.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Zebra LI2208-SR7U2100AZW delivers predictable 1D capture for retail environments where simplicity and reliability matter more than feature density. The 547 scans-per-second throughput and IP42 durability make this scanner practical for high-traffic checkouts, but the wired USB architecture is a hard boundary — it is not portable, and it cannot roam.
Technical Highlights:
- 547 Scans Per Second: Sufficient for simultaneous multi-lane checkout without scanner speed becoming a throughput bottleneck, even during holiday peak hours with line queues.
- 1.8m Drop Tolerance: Real-world resilience for retail environments where scanners are handled roughly and occasional floor contact is inevitable. Eliminates costly field repair cycles from counter-height drops.
- IP42 Rating with Single-Pass Imaging: Handles light dust and incidental splash common to retail desks, but do not deploy this near beverage dispensers, sinks, or open receiving doors. The lack of sealed optics means sustained moisture exposure will degrade the imager window.
- USB Keyboard-Wedge Integration: Plugs into any standard USB port with zero driver installation on most POS terminals. This simplicity is an asset for quick commissioning but locks you into stationary mounting.
Deployment Considerations:
- The wired USB cable is non-negotiable — do not attempt cordless retrofit. If mobile scanning is a future requirement, this model will not scale; plan mobile alternatives separately.
- IP42 is adequate for retail but not for food processing, outdoor receiving, or washdown environments. Confirm moisture exposure limits with your site team before ordering.
- 1D-only capability means QR codes, Data Matrix, and other 2D formats will not scan. If barcode standards are changing (e.g., migration to GS1 Data Bar or pharma 2D requirements), this device will become obsolete faster than a 2D variant.
The LI2208-SR7U2100AZW is the right choice for high-velocity, fixed-position retail checkouts where wireless overhead and battery management are liabilities rather than features. It is not suitable for omnichannel environments, inventory management systems, or mobile receiving operations.
