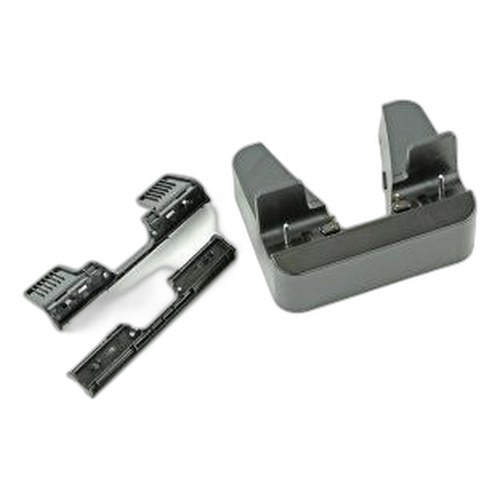

Zebra CRD-ET4X-1SNWS-02 ET4X Connect Cradle

Zebra CRD-ET4X-1SNWS-02 ET4X Connect Cradle

Overview

The Zebra CRD-ET4X-1SNWS-02 is a single-slot charging and connectivity cradle engineered specifically for the ET4X rugged mobile computer series. This docking accessory centralizes device charging, data synchronization, and secure storage in warehouse, logistics, and field operations environments where handheld computers cycle through shifts or work sessions. If your operation relies on ET4X devices for inventory management, order fulfillment, or asset tracking, a stationary dock eliminates the friction of managing individual chargers and cables across a facility—particularly valuable when you're running 24/7 operations and need predictable device readiness between shifts.

Key Features

• Single-Device Charging Dock: Dedicated single-slot design means one CRD-ET4X-1SNWS-02 cradle per device. This straightforward approach eliminates the complexity of multi-slot charging—no contention, no power distribution headaches. For smaller warehouses (5–15 ET4X units), this translates to lower total cost of ownership compared to a multi-slot alternative; for larger deployments, plan on purchasing multiple cradles proportional to your device count.
• PoE Connectivity Option: The cradle supports PoE-powered docking, meaning a single Ethernet cable delivers both charging power and network connectivity to the ET4X. This consolidation reduces cable clutter behind your dock station and simplifies network integration into existing warehouse management systems (WMS) or MDM (mobile device management) infrastructure. No separate 12V power supply or USB hub required—one RJ-45 connection handles both roles.
• ET4X Platform Integration: Purpose-built for Zebra's ET4X series, ensuring mechanical fit, electrical compatibility, and firmware/driver support. The cradle integrates seamlessly with standard enterprise mobile device management platforms and warehouse workflows that already deploy ET4X computers. If your environment runs a mix of Zebra devices (e.g., TC51 barcode scanners alongside ET4X tablets), ensure you have separate cradles for each device type—cross-model cradle compatibility is not supported.
• Data Sync & Network Access: During docking, the ET4X gains full network connectivity for real-time database synchronization, policy enforcement, and remote management—critical for operations where inventory or order data must be refreshed between shifts. This eliminates offline synchronization delays that can occur if devices charge only via USB without network access.
• Enterprise-Grade Durability: Designed for industrial warehouse environments. The cradle supports continuous daily cycling in typical dock stations (temperature-controlled backrooms) but is not rated for outdoor, high-moisture, or high-temperature locations. Verify ambient temperature and humidity specs against your warehouse conditions before deployment.
• Simple Deployment Model: Mounting is straightforward—the cradle either sits on a flat surface or mounts to a wall/pole via standard bracket hardware (verify bracket compatibility with your facility infrastructure). No complex installation workflow; once positioned and cabled, it requires minimal maintenance beyond periodic cleaning of contact points.

Integration & Compatibility

The CRD-ET4X-1SNWS-02 is compatible with Zebra's ET4X rugged mobile computer line. It integrates with standard enterprise mobile device management (MDM) platforms such as MobileIron, Microsoft Intune, or Zebra's own Intelligent Mobile Device Management solution, allowing IT teams to remotely manage policy, app deployment, and device health across docked and undocked ET4X units. Warehouse management systems (WMS) that support ET4X integration—including SAP, Oracle, or warehouse-specific platforms like JDA or Manhattan Associates—work with devices charged and synchronized via the CRD-ET4X-1SNWS-02. If your operation uses a third-party WMS or MDM, confirm ET4X compatibility with your vendor before procurement.

When to Choose a Different Solution

If you operate with large device fleets (50+ ET4X units) and need centralized, automated charging with minimal dock footprint, explore Zebra's multi-slot charging dock alternatives in the ET4X accessory family—they allow parallel charging of multiple devices but require higher initial investment. If your devices are deployed in harsh outdoor or high-moisture environments, verify that a stationary docking station is compatible with your facility layout; PoE-powered cradles may not survive direct water exposure or extreme temperature swings. For organizations deploying mixed device types (ET4X alongside scanning terminals or mobile computers from other vendors), ensure you budget for dedicated cradles per device model—cross-compatibility is not supported.

Frequently Asked Questions

Q: Is the CRD-ET4X-1SNWS-02 compatible with ET4X models from all Zebra firmware versions?

A: The cradle is mechanically and electrically compatible with all ET4X mobile computers. However, confirm firmware version compatibility with your IT or device management team, particularly if running very old or beta firmware. Zebra publishes compatibility matrices for each device generation; check the ET4X product support page if you encounter any sync or charging issues.

Q: Can I use the CRD-ET4X-1SNWS-02 with USB-only charging, or is PoE required?

A: The cradle supports PoE-powered charging as its primary configuration. If your facility lacks PoE infrastructure, a separate 12V power supply can be used instead, but this requires additional cabling and a separate power management consideration. PoE is the cleaner integration path for most modern warehouse setups.

Q: How many ET4X devices can I charge simultaneously with one CRD-ET4X-1SNWS-02 cradle?

A: The CRD-ET4X-1SNWS-02 is a single-slot cradle; it charges one ET4X device at a time. If you need to charge multiple devices in parallel, purchase additional cradles or explore Zebra's multi-slot dock alternatives.

Q: Does the CRD-ET4X-1SNWS-02 work with MDM platforms like Microsoft Intune or Zebra's own management console?

A: Yes. The cradle provides PoE connectivity, which allows the ET4X to maintain network access and communicate with MDM servers for policy sync and device management. No special driver or MDM connector is required—the cradle is transparent to the MDM infrastructure.

Q: What is the charging time for an ET4X device using the CRD-ET4X-1SNWS-02?

A: Charging time depends on the ET4X battery capacity and PoE power delivery. Typical full charge is 2–4 hours; refer to the ET4X user manual for battery specifications and charging curve details. PoE may deliver lower amperage than a dedicated charger, so plan dock time accordingly during peak shift changeovers.

Q: Is the CRD-ET4X-1SNWS-02 rated for outdoor warehouse dock areas or high-humidity environments?

A: The cradle is rated for controlled indoor environments (typical warehouse backroom or office conditions). Do not deploy in direct sunlight, outdoor docks, or high-moisture areas (refrigerated units, washdown zones) without additional environmental protection. Verify ambient temperature and humidity specifications against your facility conditions.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The CRD-ET4X-1SNWS-02 is a straightforward single-slot docking solution—no surprises, no feature creep. If your warehouse runs ET4X tablets and you need predictable charging and network sync during shift transitions, this cradle fills that gap efficiently. The PoE integration is the real win here; it eliminates the cable salad that typically builds up around device charging stations.

Technical Highlights:

• PoE Power & Data Consolidation: Single RJ-45 connection delivers both charging current and Ethernet connectivity to the ET4X. This eliminates dual-cable runs (separate 12V and USB) and simplifies dock station wiring—particularly valuable in facilities where cable management behind shelving or mounting poles is already tight. PoE power delivery is typically 15–30W depending on your switch's PoE class; verify your switch supports the required power budget if you're deploying multiple cradles.
• Single-Slot Design: No multi-device charging complexity means no power distribution bottlenecks or contention for dock space. Tradeoff: you'll need N cradles for N simultaneous charges. For warehouses with 10–20 ET4X devices cycling through shifts, this is acceptable cost-benefit. For larger fleets (50+), a multi-slot dock alternative becomes more practical despite higher upfront cost.
• Enterprise MDM & WMS Transparency: The PoE connection keeps the ET4X on the network during docking, allowing real-time policy sync, app deployment, and inventory database refresh via Intune, MobileIron, or Zebra's own management console. No offline sync delay—device state is current the moment it's undocked. This matters in high-velocity fulfillment operations where outdated inventory data causes picking errors.

Deployment Considerations:

• PoE Infrastructure Required: If your warehouse backroom or dock station doesn't already have PoE-enabled network drops, provisioning them adds to your upfront cost. A non-PoE alternative using a 12V wall supply is possible but negates the cable consolidation benefit. Assess your existing network infrastructure before committing to the CRD-ET4X-1SNWS-02.
• Charge Time Variance: PoE Class 3 (up to ~15W) charging is slower than a dedicated wall charger (typically 20–30W). In environments where devices must be fully charged in under 2 hours between shifts, verify PoE power delivery against ET4X battery capacity and charging profile. If turnaround time is tight, a secondary dedicated charger may be needed during peak shift changeovers.
• Environmental Limits: This cradle is designed for controlled warehouse backrooms. Outdoor dock areas, refrigerated units, and high-humidity wash-down zones will degrade connector contacts and introduce corrosion risk. Deploy only in climate-controlled spaces or with protective enclosures.

The CRD-ET4X-1SNWS-02 is well-suited for mid-size warehouse operations (10–30 ET4X devices) where shift-based device cycling and centralized MDM/WMS integration are standard practice. If your operation is smaller or highly mobile (devices constantly leaving the dock), a single or dual cradle is overkill; if you're running a high-volume fulfillment center with 100+ devices, invest in a multi-slot dock to reduce footprint and labor around device staging. Size your deployment to your actual device count and shift structure—don't over-buy cradles you won't use.
