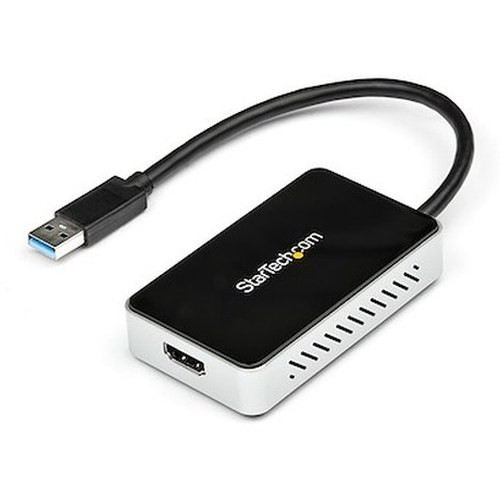

StarTech USB32HDEH USB 3.2 Gen 1 to HDMI External Display Adapter

Overview

The StarTech USB32HDEH is a compact USB 3.2 Gen 1 to HDMI external display adapter that adds a single HDMI output to any Windows x86 or x64 system through an available USB-A port. At 3.3 x 1.9 x 0.7 inches and 2.3 oz, it slips into a laptop bag without adding meaningful weight — useful for field technicians, control room operators, or IT staff who need a quick second-display option without opening a workstation. Note before purchasing: this adapter is Windows-only. It does not support macOS, ChromeOS, or Linux in any form.

Key Features

• USB 3.2 Gen 1 (5Gbps) bus interface: The 5Gbps bus provides enough bandwidth to push a clean 1920x1200 signal without frame-drop artifacts — a meaningful difference versus older USB 2.0 display adapters, which typically cap usable output well below full HD. If your host port is USB 3.0 or later, you will not be bandwidth-limited at this resolution.
• 1920x1200 maximum resolution: WUXGA output (1920x1200) covers the full pixel count of most commercial monitors and security displays. If your monitoring station runs 16:10 panels — common in control room and command center environments — this adapter delivers native resolution without scaling artifacts that can make VMS interfaces harder to read.
• Trigger T6-688SL chipset: The T6-688SL is a driver-dependent display controller, which is why OS support is narrow. On supported Windows x86/x64 systems it handles the display rendering pipeline in software, offloading output to the HDMI port. Plan your driver deployment accordingly in managed environments — a standard imaging process that includes the StarTech driver package will simplify rollout across multiple workstations.
• Single-display output: This adapter drives one HDMI display. If your deployment needs two or more additional monitors from a single USB host, you will need multiple adapters or a different docking solution. For single-monitor extensions — adding a map display at a security desk, for example — this is a clean, low-footprint answer.
• Compact form factor with integrated 6.3-inch cable: The 16 cm attached cable keeps the adapter close to the host port without the slack management problem of a longer tethered cable. On a densely cabled security rack or operations desk, that matters for cable hygiene.
• 0°C to 50°C operating temperature: Covers standard indoor commercial and office environments without issue. Not rated for outdoor or uncontrolled-temperature closets — if your deployment environment runs hot (server rooms without adequate cooling, for example), verify ambient stays below 50°C at the adapter's location.
• 3-year manufacturer warranty: A three-year coverage window is appropriate for an adapter deployed at a permanent workstation. It reduces the per-unit risk calculus when deploying across a fleet of operator consoles.

Integration and Compatibility

The USB32HDEH requires a Windows x86 or x64 host — this is a hard requirement, not a recommendation. Systems running macOS, ChromeOS, or any Linux distribution are not supported. In a Windows enterprise environment, the driver can be pushed via standard software deployment tools (SCCM, Intune, or similar) to simplify fleet provisioning. The HDMI output is compatible with any HDMI-capable display, including commercial monitors, video walls driven by individual inputs, and HDMI-input security monitors. There is no DisplayPort or VGA passthrough on this unit — the output is HDMI only.

For security operations center deployments, this adapter pairs naturally with network video recorders feeding a dedicated monitoring workstation where an operator needs a secondary display for VMS dashboards or alarm management interfaces. It also fits IT-managed environments where a technician needs a portable display extension without carrying a dedicated docking station.

Browse the full StarTech catalog for compatible USB peripherals, docking stations, and display adapters. If you are planning a multi-display workstation, review our KVM and display extension options for more scalable approaches. For workstations integrated into a broader IP camera monitoring setup, ensure the host PC's USB controller can sustain the bandwidth allocation across all connected devices simultaneously.

Frequently Asked Questions

Q: Does the USB32HDEH work on macOS or Linux?

A: No. The USB32HDEH is Windows x86/x64 only. It does not support macOS, ChromeOS, or Linux. This is a driver-level limitation tied to the Trigger T6-688SL chipset and cannot be worked around with third-party drivers.

Q: What is the maximum resolution supported by the USB32HDEH?

A: The maximum output resolution is 1920x1200 (WUXGA). This covers standard 1080p (1920x1080) and full 16:10 WUXGA monitors without upscaling.

Q: How many displays can I add with one USB32HDEH?

A: One. Each USB32HDEH drives a single HDMI display. To add multiple monitors, you would need one adapter per display, subject to your host system's USB controller capacity and driver support.

Q: What USB standard does the USB32HDEH require on the host?

A: The adapter uses a USB 3.2 Gen 1 (5Gbps) interface. For full-resolution output, connect it to a USB 3.0 or later port on the host system. Connecting to a USB 2.0 port may result in reduced performance or unsupported operation.

Q: What is the warranty on the USB32HDEH?

A: StarTech covers the USB32HDEH with a 3-year manufacturer warranty.

Q: Is the USB32HDEH suitable for use in a server room or warm equipment closet?

A: The operating temperature range is 0°C to 50°C. Standard air-conditioned server rooms typically fall within this range, but confirm ambient temperature at the adapter's location. Unventilated equipment closets that exceed 50°C are outside the rated operating envelope.

Marty Allison

The spec I want buyers to focus on before ordering the USB32HDEH is the OS restriction — not as a negative, but as a procurement filter. This adapter runs entirely on a Windows software driver built around the Trigger T6-688SL chipset. If every workstation in your deployment is a managed Windows x86/x64 image, this is a non-issue and the adapter works exactly as expected at up to 1920x1200 over USB 3.2 Gen 1.

Technical Highlights:

• 1920x1200 max output: WUXGA covers 16:10 commercial monitors natively — no scaling artifacts on operator consoles running wide-format displays in security or control room environments.
• USB 3.2 Gen 1 (5Gbps) bus: Enough headroom to sustain full-resolution HDMI output without frame drops, provided the host port is USB 3.0 or later. Bandwidth is not the bottleneck here.
• 2.3 oz / 3.3 x 1.9 x 0.7 in form factor: Small enough to leave permanently attached at a fixed workstation or carry in a field kit without adding bulk — a practical advantage for technicians who need a portable display extension on service calls.

Deployment Considerations:

• In managed enterprise environments, pre-stage the StarTech driver package in your Windows image or push it via software deployment tooling before deploying the adapter — this eliminates the driver installation step at each endpoint and avoids user-permission issues on locked-down machines.
• The 0°C to 50°C operating range is fine for conditioned office and control room environments, but verify ambient temperature if the host workstation sits in a warm equipment closet or poorly ventilated enclosure — exceeding 50°C at the adapter puts it outside spec.

This adapter fits cleanly in a security operations center where a Windows-based VMS workstation needs a dedicated secondary HDMI display for alarm management or camera layout without the complexity of a full docking station — a single-purpose, low-footprint solution for that exact scenario.
