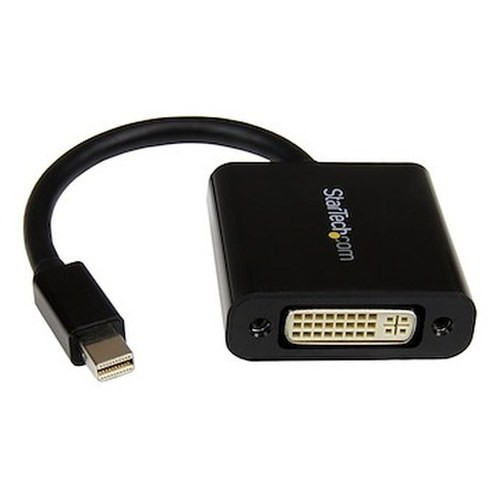

StarTech MDP2DVI3 Mini DisplayPort to DVI-D Single-Link Passive Adapter

Overview

The StarTech MDP2DVI3 is a passive Mini DisplayPort to DVI-I (digital-only, DVI-D signal) single-link adapter designed for straightforward display connectivity without requiring external power or driver installation. At just 5.1 inches of cable length and 1.2 oz, it stays out of the way behind a workstation or at a rack-mounted KVM station. If you have a Mini DisplayPort or Thunderbolt 1/2 source and a DVI-D display, this adapter eliminates the need for active conversion hardware — keeping your setup clean and your budget intact.

Because it is passive, the MDP2DVI3 relies entirely on the digital signal output of the source port. That means it works where Mini DisplayPort 1.2 or Thunderbolt 1/2 is present, but it will not drive analog DVI-A or VGA displays — this is a digital-only path. Verify your display accepts a DVI-D signal before deploying at scale.

Key Features

• 1920x1200 @ 60Hz Maximum Resolution: Covers the full pixel count of WUXGA monitors — useful for wide-format displays in control rooms, trading desks, or security operator stations where 16:10 panels are common. You won't be resolution-limited on any standard single-link DVI display.
• Passive Design — No Power, No Drivers: Because there is no active electronics inside, there is nothing to configure, no USB power to route, and no firmware to update. Plug-and-play across Windows, macOS, and Linux hosts that carry Mini DisplayPort 1.2 or Thunderbolt 1/2. Fewer failure points in a deployed environment.
• Mini DisplayPort 1.2 and Thunderbolt 1/2 Compatible: Covers a wide range of Apple Mac systems, older Microsoft Surface devices, and any PC workstation with a Mini DP output. Thunderbolt 1 and 2 ports share the Mini DP physical connector and pass DisplayPort signal natively, so this adapter works without any special configuration on those hosts as well.
• DVI-I Connector (Digital Signal Only): The adapter presents a DVI-I plug on the display end — which physically fits both DVI-I and DVI-D receptacles on the monitor side. Only the digital pins carry signal, so analog DVI-A or VGA destinations will not receive an image. This is the right choice when your monitor has a DVI-D or DVI-I input and you need a clean digital connection.
• 5.1-Inch Adapter Cable Length: Short enough to sit flush behind a display stand or inside a cable management tray without slack piling up. The overall product length is 6.9 inches, so account for connector clearance on tight rack shelves or enclosed workstation bays.
• Compact and Lightweight at 1.2 oz: Won't stress the Mini DP port on a laptop or thin client. For mobile deployments or portable workstations, the low weight means it can travel with the host system without risking port damage from adapter leverage.
• Operating Temperature 0°C to 60°C: Covers standard office and light industrial environments. Not rated for outdoor or uncontrolled-temperature enclosures — keep this in conditioned spaces.
• 3-Year Manufacturer Warranty: StarTech backs the MDP2DVI3 with a 3-year warranty, which matters for IT asset lifecycle planning when deploying across multiple workstations or replacing aging display adapters fleet-wide.

Integration and Compatibility

The MDP2DVI3 is purpose-built for sources with Mini DisplayPort 1.2 or Thunderbolt 1/2 outputs. It does not support Thunderbolt 3 or 4 (USB-C connector) — those require a separate USB-C to DVI adapter. On the display side, it targets DVI-D and DVI-I single-link monitors up to 1920x1200. It will not drive dual-link DVI displays (those requiring resolutions above 1920x1200 or high-refresh 1920x1080 dual-link panels). If your display or application requires dual-link DVI, you need an active adapter with dual-link capability.

For operators connecting legacy DVI monitors to newer Mac or PC workstations in a KVM switch or multi-display environment, this adapter fills the gap cleanly without adding a powered conversion box to the chain. It is also a practical fit for integrators deploying video wall controllers or digital signage players that carry Mini DP outputs and feed DVI-D panel inputs.

If you are evaluating StarTech display adapters for a broader AV or surveillance control room buildout, note that StarTech offers active adapters in the same family for scenarios requiring dual-link DVI, HDMI, or DisplayPort outputs — worth reviewing if your display mix is not uniformly DVI-D single-link.

For workstation-level display planning in a security operations center, pair this adapter with a review of your monitor and display inventory to confirm DVI-D input availability before ordering in volume. A quick scan of your cable and adapter stock can also confirm whether passive or active conversion is needed across different source ports in the same installation.

Frequently Asked Questions

Q: Is the MDP2DVI3 compatible with Thunderbolt 3 or Thunderbolt 4 (USB-C) ports?

A: No. The MDP2DVI3 is designed for Mini DisplayPort and Thunderbolt 1/2 ports, which use the Mini DP physical connector. Thunderbolt 3 and 4 use the USB-C connector and require a separate adapter.

Q: Will the MDP2DVI3 output an analog signal to a VGA or DVI-A monitor?

A: No. This is a digital-only adapter. The DVI-I connector physically fits both DVI-I and DVI-D receptacles, but only the digital signal pins are active. Analog DVI-A and VGA displays will not receive a signal.

Q: What is the maximum resolution supported by the MDP2DVI3?

A: 1920x1200 at 60Hz over a single-link DVI connection. It does not support dual-link DVI resolutions above 1920x1200.

Q: Does the MDP2DVI3 require drivers or external power?

A: No. It is a fully passive adapter — no drivers, no USB power, and no external power supply needed. It draws no power beyond what the Mini DisplayPort signal requires, which is handled by the source device.

Q: What is the warranty on the MDP2DVI3?

A: StarTech provides a 3-year manufacturer warranty on the MDP2DVI3.

Q: Can the MDP2DVI3 be used with Apple Mac systems that have Thunderbolt 2 ports?

A: Yes. Thunderbolt 1 and 2 ports use the Mini DisplayPort physical connector and pass DisplayPort signal, so the MDP2DVI3 is compatible with those Mac systems without any special configuration.

Karl Wilson

The MDP2DVI3 comes up regularly in control room and operator station refreshes where the workstation side has moved to Mini DisplayPort outputs but the display inventory is still a mix of DVI-D panels that have years of useful life left. The passive design is the deciding factor in those scenarios — no active electronics means nothing to fail, nothing to power, and nothing to manage in an environment where simplicity translates directly to uptime.

Technical Highlights:

• 1920x1200 @ 60Hz: Covers WUXGA single-link DVI monitors fully — no resolution compromise on standard operator displays running 16:10 panels at native resolution.
• Passive Architecture: Zero power draw from the adapter itself; the Mini DP source handles signal entirely. No USB power routing, no driver stack, no compatibility layer to troubleshoot.
• 3-Year Warranty: Relevant for IT procurement: a 3-year coverage period aligns with typical workstation refresh cycles, reducing the risk of mid-cycle adapter replacement costs across a multi-seat deployment.

Deployment Considerations:

• The 5.1-inch cable and 6.9-inch total product length work well in standard workstation cable management trays, but measure your connector clearance before deploying in shallow rack shelves or enclosed AV cabinets — the combined connector stack needs physical room.
• This adapter will not function with Thunderbolt 3/4 (USB-C) sources or dual-link DVI displays — confirm both the source port type and the display's DVI input variant before committing to a volume order. A single misidentified DVI-A panel in the inventory will not display any image.

Best-fit scenario: a security operations center or network operations center running a bank of legacy WUXGA DVI-D monitors connected to newly provisioned workstations with Mini DisplayPort outputs — the MDP2DVI3 handles that transition cleanly without adding powered conversion hardware to each station.
