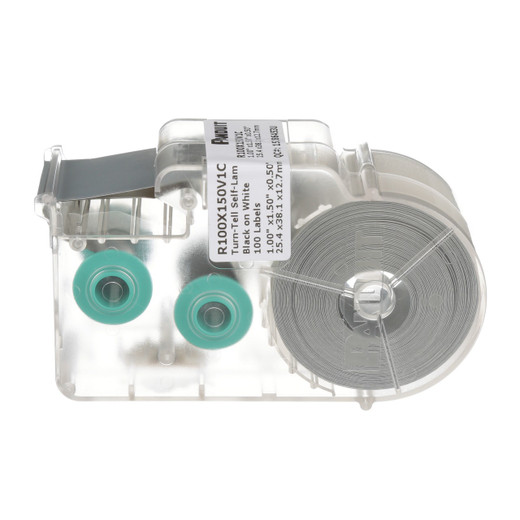

Panduit R100X150V1C Turn-Tell Vinyl Label Cassette

Panduit R100X150V1C P1 Turn-Tell Vinyl Label Cassette

Installers doing retrofit identification or post-termination labeling face a common problem: most cable labels require disconnecting wires or applying before termination. The Panduit R100X150V1C Turn-Tell Label Cassette solves this with a rotatable, self-contained vinyl label system that installs on existing terminated assemblies without disconnecting a single wire. Designed for Panduit LS8E and LS8EQ desktop printers, this all-in-one cassette includes both label material and thermal transfer ribbon, delivering 100 white vinyl labels per cartridge in a 1" × 1.50" format. The cassette's defining feature—its ability to rotate after application—lets you align legends for optimal visibility in dense cable bundles, a critical advantage in panels, racks, and overhead pathways where orientation determines readability.

Key Features

• Install on terminated wires — wrap-around design applies to existing assemblies without disconnecting connectors or disrupting service
• Rotate 360° for visibility — reposition the label tab after installation to align text with your viewing angle, improving aesthetics and readability in tight bundles
• All-in-one cassette — label material and ribbon packaged together for tool-free changeovers, eliminating spool loading and mid-job mismatches
• 100 labels per cassette — 1.0" W × 1.50" H (25.4 mm × 38.1 mm) format provides space for alphanumeric codes, circuit IDs, and asset tags
• LS8E and LS8EQ compatible — drop-in cartridge for Panduit P1 desktop printers; no calibration or ribbon tension adjustments required
• Durable vinyl substrate — resists oils, solvents, and abrasion common in electrical panels and industrial environments where paper labels fail
• RoHS compliant — meets EU directives and DoD purchasing requirements for federal and defense projects

The R100X150V1C cassette packages both label material and thermal transfer ribbon in a single cartridge, eliminating the separate spool-loading workflow that slows changeovers on traditional thermal printers. Each label measures 1.0 inch wide by 1.50 inches high (25.4 mm × 38.1 mm), providing enough print area for multi-line wire codes, panel circuit identifiers, or equipment asset tags without forcing installers to abbreviate critical information. The vinyl substrate delivers durability in industrial settings—chemical plants, manufacturing floors, and outdoor utility enclosures—where oils, solvents, temperature swings, and UV exposure degrade paper-based labels within months. The white background ensures high contrast with black thermal-transfer ink, maintaining readability under poor lighting conditions common in equipment rooms and ceiling spaces.

The Turn-Tell design is purpose-built for retrofit scenarios: data center cable audits, electrical panel circuit re-identification, or equipment relocations where disconnecting wires is cost-prohibitive or risks service interruption. The label wraps around the cable or wire bundle, then its tab rotates independently to align legends with the installer's viewing angle—a critical feature in dense bundles where cables enter connectors at varying orientations. Because it installs without removing connectors or disturbing terminations, a single technician can label hundreds of circuits in a fraction of the time traditional cut-sheet or wrap-around labels require. Print a batch of 100 labels, walk the rack or panel, and apply on the fly without tools or helper hands. Each cassette yields 100 labels before replacement; the all-in-one cartridge design means no wasted ribbon from mid-roll label runout and no material compatibility guesswork when ordering consumables separately.

The M-211-RO-427 competitor cross-reference ensures drop-in compatibility if you're transitioning from Brady M Series printers to Panduit's P1 platform—existing label layouts and workflows migrate without redesign. RoHS compliance keeps your material selections aligned with European Union directives and Department of Defense procurement standards, a requirement on federal projects where non-compliant materials trigger costly rework or outright rejection. For commercial integrators billing by the hour, contractors managing change-order budgets, or facility managers maintaining legacy systems, this cassette delivers the fastest path from printer to applied label without service downtime or wire-disconnection labor.
