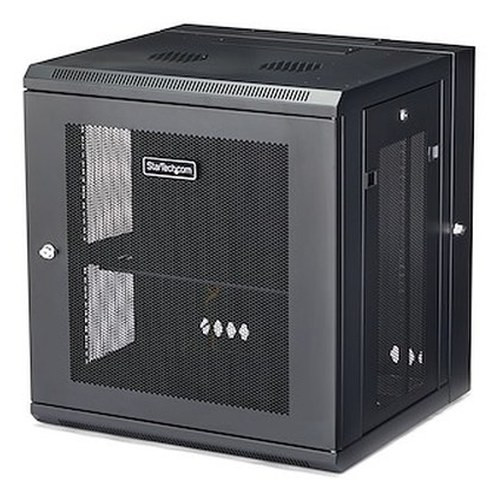

StarTech RK12WALHM 12U Enclosed Wall-Mount Server Rack

Overview

The StarTech RK12WALHM is a 12U enclosed, 4-post wall-mount rack cabinet designed for installations where floor space is off the table — IDF closets, server rooms with limited footprint, network equipment walls, and small equipment deployments in security control rooms. At 198.4 lb (90 kg) rated capacity, it handles a meaningful mix of patch panels, switches, NVRs, and access control equipment without compromise. The enclosed steel construction with a mesh front door and mesh side panels keeps things ventilated while maintaining a clean, contained appearance on the wall.

This is not a lightweight open-frame bracket — the RK12WALHM ships as a full enclosed cabinet with a hinged rear steel door, grounding lugs, and built-in cable management. If your site requires EIA/ECA-310-E compliance for standardized rackmount spacing, this unit meets that standard, so any 19-inch rackmount equipment installs without adapter hardware.

Key Features

• 12U Usable Space: Twelve rack units fits the typical IDF or small server room build — a 1U PoE switch, 1U patch panel, a 2U NVR, a 1U KVM, and an access control panel still leave room to grow. Not over-specified for a wiring closet, not so small you're immediately out of space.
• 198.4 lb (90 kg) Weight Capacity: Heavy enough for dense deployments. A fully loaded 2U NVR with drives, a managed PoE switch, and associated hardware won't come close to this limit — giving you confidence the wall mount won't shift under load.
• Adjustable Mounting Rails — 2.4 in to 16.0 in (6 cm to 40.6 cm) Depth Range: This is the spec that makes the RK12WALHM genuinely flexible. Shallow 1U patch panels sit at 2.4 inches; a full-depth 16-inch NVR or UPS fits at the other end. You're not locked into shallow-depth equipment only, which is the real limitation on cheaper wall-mount alternatives.
• Steel Mesh Front Door and Side Panels: Passive airflow through the mesh means equipment doesn't cook in a closed cabinet. If your deployment environment runs warm, the optional four 120 mm fan positions let you add active cooling without replacing the cabinet — critical if you're running an NVR with multiple spinning drives or a high-wattage PoE switch.
• Hinged Rear Steel Door: Access to the back of installed equipment without removing units from the rack. For cabling changes on a live installation — patching in a new camera run or swapping a fiber uplink — this is a practical time-saver that many similarly priced wall cabinets skip.
• Square and Threaded Mounting Hole Options: Supports both cage-nut/square-hole equipment and threaded-hole equipment. You're not forced to standardize your hardware purchase around a single hole type, which matters when mixing legacy access control panels with newer network gear.
• Built-in Cable Management: Keeps patch runs and power cables organized inside the cabinet. In security installations with multiple camera home-run cables, door controller wiring, and PoE switch uplinks all terminating in one location, unmanaged cabling creates troubleshooting nightmares — this addresses that directly.
• Grounding Lug(s) Included: Proper chassis grounding is a code requirement in most commercial installations and a best practice for protecting sensitive electronics from ESD. The included grounding lug means you're not improvising a ground path with whatever's nearby.
• EIA/ECA-310-E Compliance: Standard 19-inch rackmount spacing means any compliant equipment — switches, NVRs, patch panels, PDUs — mounts without modification or adapter plates. This is the baseline expectation for any professional installation, and the RK12WALHM meets it.
• 23.6 in Wide × 25.1 in Tall × 21.7 in Deep Exterior Footprint: Know your wall clearance before ordering. The cabinet is under 26 inches tall and under 22 inches deep — fits in most utility closets and above standard electrical panel heights. Internal usable depth is 21.5 inches, internal width 23.4 inches.
• 63.7 lb (28.9 kg) Cabinet Weight: Plan your wall anchor points accordingly. A fully loaded cabinet at max capacity exceeds 260 lb combined — wall anchors into studs or a dedicated backing plate are not optional.

Integration and Compatibility

The RK12WALHM is compatible with any standard network switches, NVRs, patch panels, or access control hardware built to EIA/ECA-310-E 19-inch rackmount dimensions. The adjustable rails accommodate equipment from shallow 1U wall plates at 2.4 inches up to full-depth 16-inch units — covering the vast majority of commercial-grade security and IT hardware. The four optional 120 mm fan positions (fans sold separately) allow active cooling retrofits if passive mesh ventilation proves insufficient for the heat load of your specific equipment mix. For security integrators building out a network video recorder stack alongside PoE switching and access control in a single enclosure, this cabinet consolidates all of it in a wall-mounted footprint that keeps the equipment room clear. Review your wall structure and load-bearing capacity before installation — the combined weight of cabinet plus equipment at capacity requires proper structural anchoring beyond standard drywall fasteners.

Frequently Asked Questions

Q: What is the maximum equipment depth the RK12WALHM can accommodate?

A: The adjustable mounting rails support equipment from 2.4 inches (6 cm) minimum depth up to 16.0 inches (40.6 cm) maximum depth. The internal cabinet depth is 21.5 inches (54.5 cm).

Q: What is the weight capacity of the RK12WALHM?

A: The RK12WALHM is rated for 198.4 lb (90 kg) of installed equipment. Keep in mind the cabinet itself weighs 63.7 lb (28.9 kg), so your wall mounting structure must support the combined load.

Q: Does the RK12WALHM include cooling fans?

A: No fans are included, but the cabinet has four positions for optional 120 mm fans. The front door and side panels are steel mesh for passive airflow. Fans are available separately if your equipment heat load requires active cooling.

Q: What mounting hole types does the RK12WALHM support?

A: The RK12WALHM supports both square (cage nut) and threaded mounting holes, so it is compatible with a wide range of rackmount equipment without requiring adapters.

Q: What is the warranty on the RK12WALHM?

A: StarTech covers the RK12WALHM with a 5-year manufacturer warranty.

Q: Does the RK12WALHM meet EIA/ECA-310-E standards?

A: Yes. The RK12WALHM is EIA/ECA-310-E compliant, meaning it uses standard 19-inch rackmount spacing and is compatible with any equipment built to that standard.

James Everett

The spec I keep coming back to on the RK12WALHM is the adjustable rail range — 2.4 inches minimum to 16.0 inches maximum mounting depth. That range is wider than most competing 12U wall cabinets, and it's the difference between a cabinet that genuinely handles mixed security and IT hardware versus one that forces you to special-order shallow-depth equipment to fit.

Technical Highlights:

• 198.4 lb (90 kg) Load Rating: More than sufficient for a fully loaded security equipment stack — a 2U NVR with four drives, a 24-port PoE switch, a 1U patch panel, and an access control panel won't approach this limit, giving genuine headroom for future additions.
• Four 120 mm Fan Positions: Passive mesh ventilation handles most deployments, but having pre-positioned fan mounts means you can retrofit active cooling if a dense NVR or high-wattage switch runs hot — without modifying the cabinet or replacing it.
• 5-Year Manufacturer Warranty: Longer than the typical 2–3 year coverage on comparable wall cabinets. For infrastructure that goes into a wall and gets largely forgotten, the warranty length matters more than it does on field-swappable devices.

Deployment Considerations:

• At 63.7 lb empty and up to 198.4 lb loaded, wall anchor selection is critical. Stud-to-stud mounting or a plywood backer panel rated for the combined load is the right approach — do not rely on drywall anchors alone regardless of their stated ratings.
• The rear door is steel (not mesh), so rear-panel heat dissipation depends on the door being opened or equipment being rear-exhausted through the mesh sides. In a sealed utility closet with poor ambient airflow, plan for active fans from day one rather than retrofitting after equipment starts thermal-throttling.

This cabinet is the right fit for a security integrator building a consolidated IDF-style equipment point in a commercial facility — one location where the NVR, PoE switching, access control hardware, and patch terminations all land, mounted off the floor and out of the way in a compliant, lockable enclosure.
