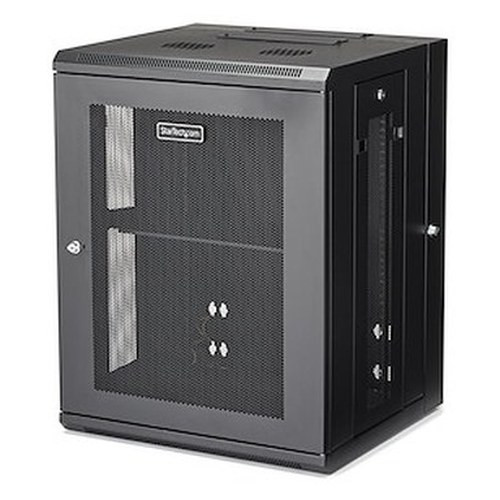

StarTech RK1520WALHM 15U Hinged Wall-Mount 4-Post Server Rack

Overview

The StarTech RK1520WALHM is a 15U, 4-post, wall-mount rack enclosure engineered for network closets, server rooms, and distributed IT or security deployments where floor space is at a premium. Its hinged design is the key differentiator: the entire enclosure swings away from the wall, giving you full rear access to cabling, patch panels, and equipment without pulling anything off the wall or crawling behind fixed furniture. If you've ever managed a cramped IDF closet where rear cable access is a recurring headache, this is the spec that matters most.

The RK1520WALHM ships in black with a steel mesh front door and steel mesh side panels — both of which allow passive airflow across installed equipment without requiring an active cooling solution in light-load environments. The solid steel rear door keeps cable runs protected. All panels are removable for full access during commissioning. The unit complies with EIA/ECA-310-E industry standards, which ensures compatibility with standard 19-inch rackmount equipment across IT, networking, and security product lines.

Key Features

• 15U Capacity: Fifteen rack units of usable vertical space handles a practical mix of 1U switches, patch panels, NVRs, UPS units, and cable management accessories — enough for a complete small-site security or networking stack in a single enclosure.
• 198.4 lb (90 kg) Weight Capacity: That load rating supports dense configurations including rackmount UPS units, multi-drive NVRs, and PoE switches simultaneously — you won't hit the weight ceiling in a typical 15U deployment.
• Hinged 4-Post Design: The swing-out hinge is the reason to choose this over a fixed wall-mount bracket. Rear cable management, punch-down work, and equipment swaps are accessible without dismounting the enclosure from the wall.
• 2.4 in to 16.0 in Mounting Depth Adjustment: This 13.6-inch depth range (6 cm to 40.6 cm) means the same rack accommodates both shallow devices like patch panels and 1U switches and deeper chassis like full-depth NVRs or servers — no need to source a second enclosure for mixed equipment depths.
• 23.5 in Internal Width: Standard 19-inch rack equipment mounts with clearance on both sides for cable routing — no tight squeezing of power and data cables along the rail edges.
• Steel Mesh Front and Side Panels: Passive airflow through the mesh keeps heat-sensitive networking and NVR equipment cooler without mandatory fan installation. For heavier loads, four optional 120mm fan positions are built into the enclosure — add fans when the load demands it rather than paying for active cooling you may not need.
• Square (Cage Nut) and Threaded Mounting Holes: Dual mounting hole types mean compatibility with virtually all standard rackmount hardware — cage-nut equipment and threaded-screw equipment both mount without adapters or workarounds.
• EIA/ECA-310-E Compliant: Compliance with this ANSI/EIA rack standard guarantees that equipment from any major vendor mounts and aligns correctly. You won't encounter rail spacing surprises when mixing brands.
• Four Optional 120mm Fan Positions: Pre-engineered fan cutouts let you add active cooling modularly as rack density increases — start passive, upgrade without modifying the enclosure.
• 5-Year Manufacturer Warranty: StarTech backs this enclosure for five years — an above-average coverage period for rack hardware that reflects the expected service life of a wall-mount enclosure in a fixed installation.

Integration and Compatibility

The RK1520WALHM is compatible with all standard 19-inch EIA/ECA-310-E rackmount equipment — network switches, patch panels, NVRs, KVM units, fiber distribution panels, UPS devices, and security appliances. The 16-inch maximum mounting depth accommodates most mid-depth and full-depth 1U/2U equipment. Very deep chassis (deeper than 16 inches) will not fit — verify equipment depth before ordering. The enclosure works with standard M6 cage nuts for square-hole mounting and accepts threaded mounting screws directly for equipment with pre-tapped rails. If you are deploying this in a network video recorder or PoE switch environment, plan your cable runs to the hinged side — keeping data and power cables loomed with appropriate slack on the hinge axis prevents stress on connectors when the enclosure swings open for service.

The enclosure dimensions — 23.6 in wide × 30.3 in tall × 21.7 in deep — set the minimum wall clearance and ceiling clearance requirements. Wall studs must be located and verified to handle the combined weight of the enclosure (87.3 lb empty) plus a fully loaded configuration approaching 198.4 lb. Consult a structural professional if mounting into drywall without stud backing or into non-standard wall construction. For more guidance on planning your rack infrastructure, review our server rack buying guide before finalizing hardware selection.

Frequently Asked Questions

Q: What is the maximum equipment depth the RK1520WALHM can accommodate?

A: The maximum mounting depth is 16.0 inches (40.6 cm). Equipment deeper than 16 inches will not fit. The minimum mounting depth is 2.4 inches (6 cm), so shallow devices like patch panels install without issue.

Q: How much weight can the RK1520WALHM support?

A: The rated weight capacity is 198.4 lb (90 kg). This covers the combined weight of all installed equipment — not including the enclosure itself, which weighs 87.3 lb (39.6 kg) empty. Ensure your wall mounting can handle the total combined load.

Q: Does the RK1520WALHM require fans, or does it cool passively?

A: The steel mesh front door and side panels allow passive airflow for light to moderate loads. For higher-density or heat-sensitive deployments, there are four pre-engineered 120mm fan positions built into the enclosure. Fans are optional and sold separately.

Q: What type of mounting holes does the RK1520WALHM use?

A: It supports both square holes (for cage nuts, compatible with standard M6 cage nut hardware) and threaded holes. This dual configuration handles virtually all standard 19-inch rackmount equipment without adapters.

Q: What is the warranty on the RK1520WALHM?

A: StarTech covers the RK1520WALHM with a 5-year manufacturer warranty.

Q: Is the RK1520WALHM compliant with standard rack specifications?

A: Yes. The enclosure meets EIA/ECA-310-E industry standards, which governs 19-inch rack unit spacing and rail dimensions. Standard rackmount equipment from any compliant vendor will align and mount correctly.

Marty Allison

The spec I tell integrators to focus on first with the RK1520WALHM is the hinged 4-post design combined with the 2.4-to-16-inch adjustable mounting depth. That combination is rare in wall-mount enclosures at this price tier — most wall-mount racks either sacrifice rear access or limit you to shallow fixed-depth equipment. Here, you get a 13.6-inch depth range and a swing-out door, which means you can house a full-depth NVR alongside a shallow patch panel in the same 15U space and still reach every cable termination without disconnecting anything.

Technical Highlights:

• 198.4 lb Load Rating: At 90 kg capacity, this enclosure handles a realistic worst-case 15U load — think a rackmount UPS (typically 20–40 lb), a multi-drive NVR (15–30 lb), two PoE switches (8–12 lb each), and a full patch panel complement — without approaching the weight limit.
• Four 120mm Fan Positions: Pre-cut fan positions mean you're not cutting metal in the field to add active cooling later. Commission passive, then drop in fans if thermal monitoring shows you need them — it's a practical upgrade path rather than a forklift change.
• EIA/ECA-310-E Compliance: This standard governs rail spacing to within fractions of a millimeter. In mixed-vendor deployments — StarTech switching, third-party NVRs, different-brand patch panels — compliance eliminates the rail-gap shimming and cage-nut alignment problems that waste installation time.

Deployment Considerations:

• The enclosure weighs 87.3 lb empty. Add a fully loaded 198.4 lb equipment capacity and your wall anchor system must handle a combined potential load approaching 286 lb — plan your wall blocking, lag bolt pattern, and stud structure accordingly before the enclosure arrives on site.
• The 21.7-inch product depth means this is not a slim-profile unit — in tight hallway IDFs or shallow wall niches, confirm clearance behind and around the enclosure before ordering. The hinge swing adds additional clearance requirement in front of the unit during service.

This enclosure is the right call for small-to-midsize security or IT deployments in dedicated IDF closets, server rooms, or mechanical spaces where a floor-standing rack is overkill but equipment density exceeds what a simple open-frame bracket can manage — specifically, any site running a rackmount NVR, a managed PoE switch, and structured cabling in the same location.
