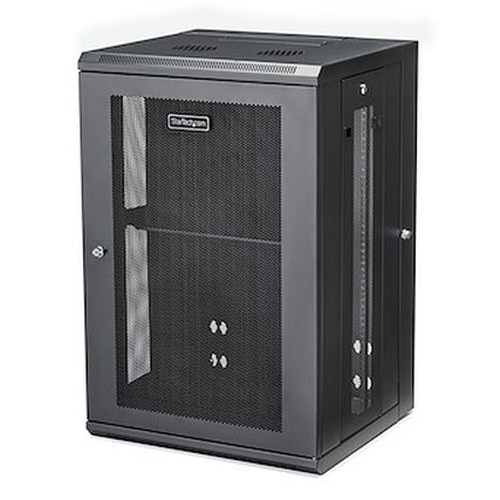

StarTech RK1820WALHM 18U Hinged Wall-Mount Server Rack Cabinet

Overview

The StarTech RK1820WALHM is an 18U enclosed wall-mount cabinet engineered for IT closets, server rooms, and distributed AV or security equipment deployments where floor space is limited but rear cable access cannot be sacrificed. The defining feature is a rear-hinged swing-out design: the entire cabinet pivots away from the wall, giving technicians unobstructed access to cabling, patch panels, and rear ports without pulling equipment from the rack. It ships fully assembled, so installation starts at the wall anchor stage rather than a hardware-bag assembly session. For teams deploying network switches, patch panels, NVRs, and access control hardware across multiple branch locations, that out-of-box readiness translates directly to faster commissioning.

Key Features

• 18U Capacity with Adjustable 4-Post Rails: 18U of usable space handles a meaningful mix of 1U and 2U devices — enough for a mid-size network video recorder, PoE switch, patch panel, and UPS in a single footprint. The four-post rail system adjusts from 2.4 in (6 cm) to 16.0 in (40.6 cm) mounting depth, accommodating everything from shallow patch panels to full-depth switches without needing a separate rail kit.
• 198.4 lb (90 kg) Weight Capacity: That load rating handles a densely populated rack — a 2U NVR, a 24-port PoE switch, a patch panel, and a small UPS will typically come in well under the limit. It removes the usual guesswork about whether the cabinet can handle a fully loaded build without shimming or redistributing weight.
• Rear-Access Hinged Design: The wall-hinged swing-out mechanism is the feature that separates this unit from fixed-wall enclosures. In telecom closets and IDF rooms where rear cabling is buried against the wall, this design eliminates the need to partially dismount the cabinet for maintenance. Swing it open, work, swing it shut.
• Ships Fully Assembled: No bag of hardware, no assembly manual to interpret on-site. The cabinet arrives as a single unit ready to mount. For multi-site rollouts where the same technician is commissioning racks across a building, this saves 30–60 minutes per location compared to flat-pack alternatives.
• Steel Mesh Front Door and Side Panels: Mesh construction on the front door and both side panels promotes passive airflow through the cabinet — important when housing active equipment like switches or NVRs that generate consistent heat loads. Solid rear door provides physical security at the back while still allowing cable egress routing.
• Optional 120 mm Fan Mounts (4 Positions): If passive airflow isn't sufficient for your installed equipment's thermal profile, four 120 mm fan positions let you add active cooling without replacing the cabinet. Size the fan count to your heat load rather than buying a pre-configured active-cooling model at a higher price point.
• Square and Threaded Mounting Holes, EIA/ECA-310-E Compliant: Both cage-nut square holes and threaded holes are present, so you're not locked into sourcing specific hardware for every device. EIA/ECA-310-E compliance means standard 19-inch rackmount equipment fits without modification — no adapter rails, no custom mounting plates.
• Grounding Lug: An integrated grounding lug simplifies NEC-compliant grounding of the enclosure and its mounted equipment — particularly relevant in environments where the local AHJ inspects low-voltage installations, or where equipment manufacturers require a grounded enclosure for warranty coverage.
• 23.5 in (59.7 cm) Internal Width, 21.7 in (55 cm) Internal Depth: Internal dimensions leave enough lateral clearance for cable management arms and horizontal cable managers alongside standard 19-inch equipment. The 21.7 in internal depth comfortably accepts mid-depth switches (most fall in the 12–18 in range) while the adjustable rails handle shorter shallow-mount devices at the front.
• 149.3 lb (67.7 kg) Cabinet Weight: This is a heavy enclosure — factor this into wall anchor selection and structural backing. Standard hollow-wall anchors are not appropriate; the mounting plan should engage wall studs or a dedicated backing plate rated for the combined cabinet and equipment load.
• 5-Year Manufacturer Warranty: A 5-year warranty on passive infrastructure like a rack cabinet is strong coverage and aligns with typical structured cabling and network infrastructure lifecycle expectations.

Integration and Compatibility

The RK1820WALHM follows EIA/ECA-310-E rack standards, making it compatible with any standard 19-inch rackmount equipment. The dual mounting hole types (square cage-nut and threaded) support virtually all commercial-grade rackmount hardware without additional adapter hardware. The adjustable four-post rail system spans 2.4 to 16.0 in depth, covering shallow patch panels through mid-depth managed PoE switches and 2U NVRs. For security integrators building out distributed IDF closets or security equipment rooms, this cabinet works alongside standard rack accessories including horizontal cable managers, vertical cable managers, 1U brush panels, and blanking panels — all of which mount to standard EIA rails without modification. If you're planning a multi-site deployment and need guidance on rack infrastructure sizing, the rack planning guide covers load calculations and mounting depth selection in detail.

Frequently Asked Questions

Q: What is the maximum equipment depth the RK1820WALHM can accommodate?

A: The adjustable four-post rails support mounting depths from 2.4 inches (6 cm) up to 16.0 inches (40.6 cm), covering shallow patch panels through most mid-depth managed switches and 2U NVRs.

Q: How much does the RK1820WALHM weigh, and what does that mean for wall mounting?

A: The cabinet itself weighs 149.3 lb (67.7 kg) before any equipment is installed. Combined with a full equipment load up to the 198.4 lb (90 kg) rated capacity, wall anchors must engage structural studs or a rated backing plate — standard hollow-wall anchors are not suitable for this installation.

Q: Does the RK1820WALHM ship assembled or does it require on-site assembly?

A: It ships fully assembled. No on-site cabinet assembly is required — installation begins at the wall-mounting stage.

Q: What type of mounting holes does the RK1820WALHM use?

A: Both square cage-nut holes and threaded holes are present, so standard 19-inch rackmount equipment using either mounting style installs without adapter hardware.

Q: Can I add active cooling to the RK1820WALHM?

A: Yes. The cabinet supports up to four optional 120 mm fans. The mesh front door and mesh side panels support passive airflow, but fan positions are available if the installed equipment's heat output requires active ventilation.

Q: What is the warranty on the RK1820WALHM?

A: StarTech covers the RK1820WALHM with a 5-year manufacturer warranty.

Ted Perry

The spec I keep coming back to on the RK1820WALHM is the cabinet's own weight: 149.3 lb before a single piece of equipment goes in. That number tells you everything about the wall prep conversation you need to have before ordering. Stud engagement or a proper backing plate is non-negotiable here — this isn't a 40 lb open-frame wall bracket.

Technical Highlights:

• Hinged Swing-Out Design: Rear access via wall hinge is the correct solution for any IDF closet or security equipment room where the cabinet back sits within 6–8 inches of a finished wall — the only alternative is a full dismount, which nobody wants during an emergency cable trace.
• 198.4 lb Load Rating at 18U: At roughly 11 lb per U average, you can populate every rail position with active equipment and stay within spec. In practice, a 2U NVR, 24-port PoE switch, 1U patch panel, and 1U PDU land well under the ceiling.
• 2.4–16.0 in Adjustable Rail Depth: That range covers 95% of what integrators actually install — from 1U shallow patch panels at the near end to most 1U and 2U switches and appliances at the far end. The rare 18-inch-deep device won't fit, but that's edge-case territory for wall-mount deployments.

Deployment Considerations:

• The 149.3 lb empty weight means two-person installation is the correct approach — confirm your site has the crew and lifting equipment before scheduling the install day.
• Mesh side panels aid airflow but also mean the cabinet interior is visible from the sides. In environments with physical security requirements (schools, public-facing spaces), factor in whether the open mesh aesthetic meets your security policy or if a solid-panel option is needed instead.

The RK1820WALHM is the right call for a distributed security or IT deployment — branch office IDF closets, retail back-office equipment rooms, or school MDF rooms — anywhere you need a properly rated, fully enclosed wall-mount cabinet that a single technician can service without tools to remove equipment from the wall.
