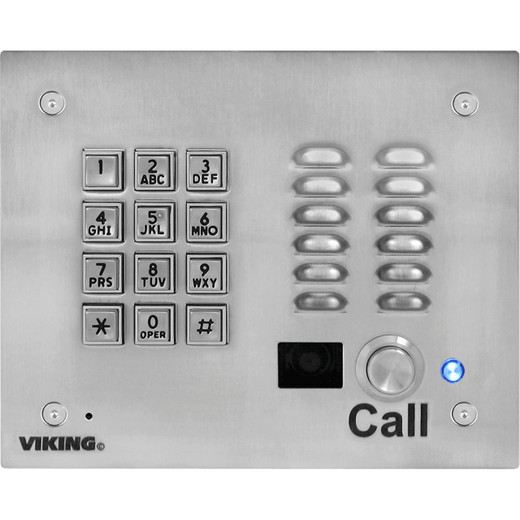

Viking Electronics K-1705-IP-EWP VoIP Stainless Steel Entry Phone with Keypad and Analog Color Camera

Overview

The Viking Electronics K-1705-IP-EWP is a SIP 2.0 VoIP entry phone built for harsh commercial and outdoor environments where a standard intercom will fail. The 14-gauge louvered 316 stainless steel faceplate with laser-etched graphics handles physical abuse; the Enhanced Weather Protection (EWP) package — foam rubber gaskets, gel-filled butt connectors, and potted electronics — pushes humidity tolerance to 100%, making this unit viable in covered outdoor vestibules, parking structures, and coastal installations where standard IP-rated enclosures aren't enough. The built-in analog NTSC color camera with tilt/swivel adjustment and wide video angle adds a visual verification layer without requiring a separate camera install. At under 6.5W, the K-1705-IP-EWP runs on any 802.3af PoE switch port — no local power supply needed. It supports 1,000 keyless entry codes, 1,000 proximity card credentials via 26-bit Wiegand, and 250 speed-dial numbers, covering multi-tenant apartment entry, controlled-access lobbies, and staffed building entrances in a single device.

Compatibility

Connects to any SIP 2.0 (RFC 3261) IP PBX or VoIP system over a standard RJ-45 10/100Base-T port. Wiegand I/O (26-bit) integrates with access control panels that accept 26-bit credential data — verify your panel's Wiegand input spec before ordering. The two sets of SPDT 2A relay contacts wire directly to door strike or magnetic lock hardware. Video output is analog NTSC; pair with a DVR or analog monitor input. The EWP variant is purpose-matched to outdoor or high-humidity enclosures; flush mount installs with the included rough-in box (4.5
